Descriptions of the PLC subroutines
3.16 Subroutine 43 - MEAS_JOG (measurement in the JOG mode)
PLC Subroutines Manual
48 Operating Instructions, 12/2012, 6FC5397-2EP10-0BA0

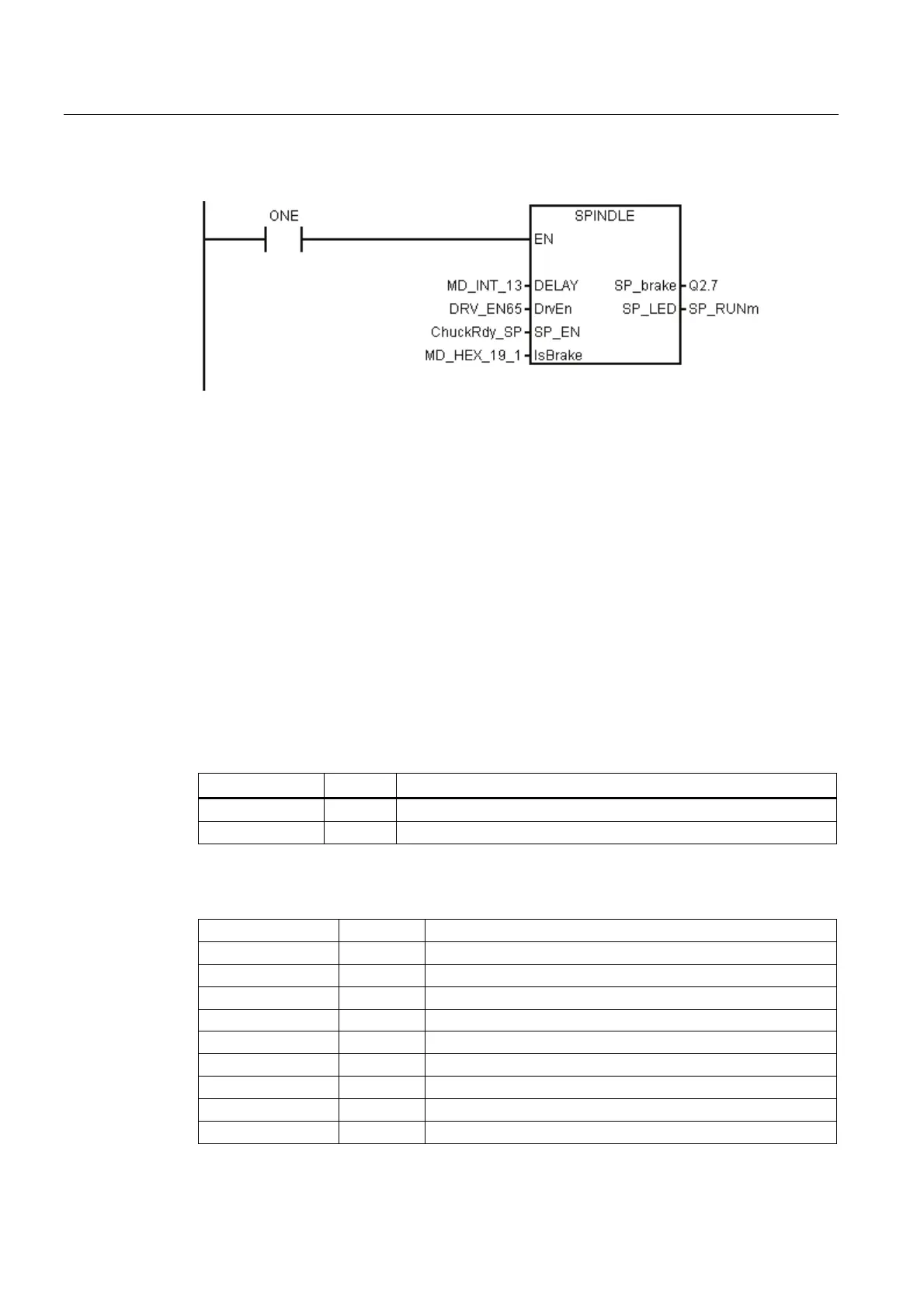

Example for calling subroutine 42
3.16 Subroutine 43 - MEAS_JOG (measurement in the JOG mode)
Purpose
Subroutine 43 is used to process the information from the measuring probe and to realize
the "measuring in the JOG mode" function. You can use this subroutine to calibrate the
probe and measure a tool.
The precondition for calling this subroutine is to call subroutine MCP_NCK (SBR38) in the
main program. The "measuring in the JOG mode" function is automatically deactivated if you
have changed the operating mode when the function becomes active.
Local variable definition
Table 3- 9 Inputs
Name Type Description
Meas_Enable BOOL Activating the function of "measuring in JOG mode"
DB1400.DBD64 DWORD Valid tool number DB1400.DBD64
Assigned global variables
MEAS_OPAUT M240.0 Measuring in the AUTO mode
CHL_HMI M240.2 From HMI signals: mode changes during measurement
NO_KEY M240.3 No JOG key available for the axes
FDI_MEASJOG M240.5 Meas_JOG forbidden for feed
ON_MEASJOG M240.6 Meas_JOG activated
PROBE_ON M240.7 Probe signal released
JOG_MEASJOG M241.0 Operating mode manually output to Meas_JOG
AUT_MEASJOG M241.1 Operating mode manually output to Meas_JOG
CHL_MEASJOG M241.2 Operating mode change forbidden to Meas_JOG
KEY_MEASJOG M241.3 JOG key Meas_JOG
