Descriptions of the PLC subroutines
3.10 Subroutine 37 - MCP_NCK (MCP and HMI signal processing)
PLC Subroutines Manual
Operating Instructions, 12/2012, 6FC5397-2EP10-0BA0
39
Table 3- 4 Outputs
Variable Type Description
Drv1_En65 BOOL 65 enable signal of the first SINAMICS V60
Drv2_En65 BOOL 65 enable signal of the second SINAMICS V60
Drv3_En65 BOOL 65 enable signal of the third SINAMICS V60
One timer is used in this subroutine:
D_PON T26 Power-on delay
Relevant PLC machine data
No. Value Description
1 Spindle has an external stop signal 14512 [18].4
0 Spindle has no external stop signal

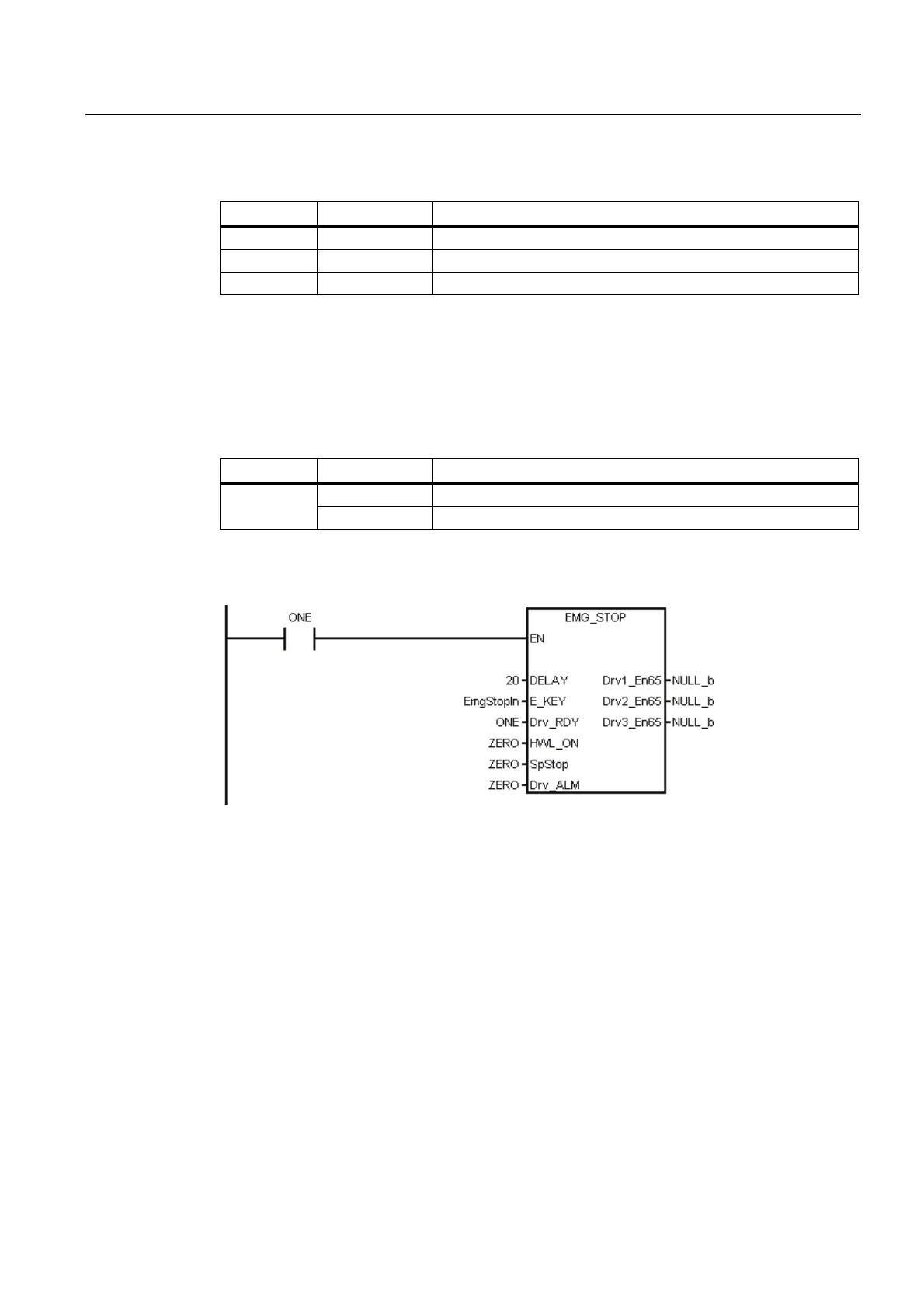

Example for calling subroutine 33
3.10 Subroutine 37 - MCP_NCK (MCP and HMI signal processing)
Purpose
Subroutine 37 is used to transfer the interface signals from the MCP and HMI to the NCK
interfaces, and thus to activate the specific operating mode and control sequences. It has the
following main functions:
● Selecting specific operating mode
● Selecting override
● Transferring signals from the HMI to NCK interfaces (for instance, program control,
handwheel, etc.)
● Controlling the axis traversing signal according to the PLC machine data
