Descriptions of the PLC subroutines
3.19 Subroutine 46 - PI_SERVICE (Asynchronous Subroutine Program)
PLC Subroutines Manual
52 Operating Instructions, 12/2012, 6FC5397-2EP10-0BA0
Relevant PLC machine data
No. Unit Range Description
14510 [24] Min. - Lubricating time interval
14510 [25] 0.01 s 100 to 2,000 Lubricating time duration

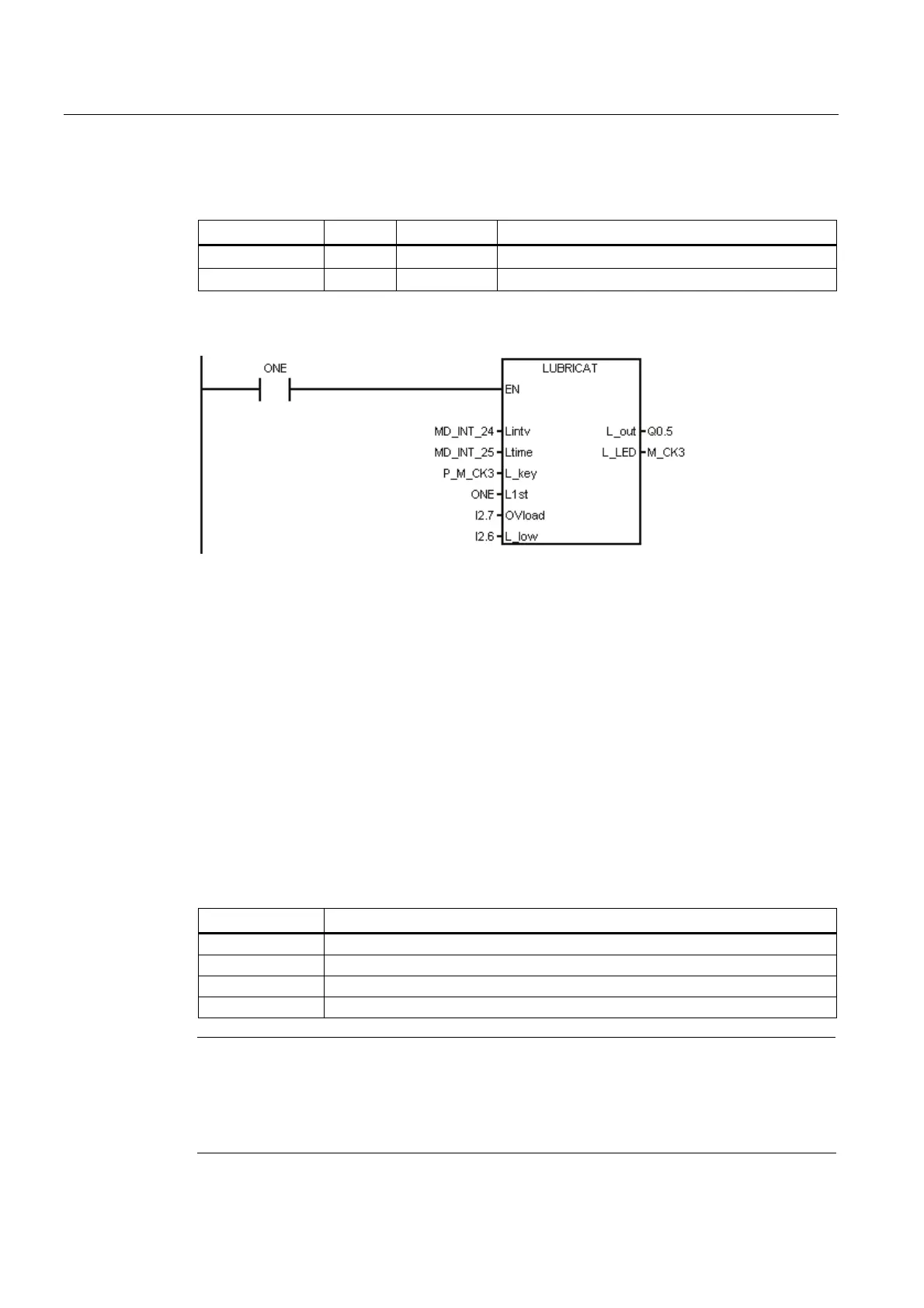

Example for calling subroutine 45
3.19 Subroutine 46 - PI_SERVICE (Asynchronous Subroutine Program)
Purpose
Subroutine 46 is for realizing functions like ASUP (Asynchronous Subroutine Program),
deleting a password and reading current tool number. ASUP function means the execution of
PLCASUP1.SPF or PLCASUP2.SPF called by the PLC. SINUMERIK 808D provides two
ASUPs for the PLC. The two ASUPs can not be simultaneously executed, and the
PLCASUP1.SPF has a higher priority over the PLCASUP2.SPF.
In a program, firstly you can initialize the ASUP1 and ASUP2 by setting "PI index"
(DB1200.DBB4001) and "NCK read/write start" (DB1200.DBX4000.0), and then use a rising
edge to trigger "ASUP1 start" (DB3400.DBX0.0) and "ASUP2 start" (DB3400.DBX1.0).
Table 3- 14 Relevant machine data
No. Name
10702 IGNORE_SINGLEBLOCK_MASK
11602 ASUP_START_MASK
11604 ASUP_START_PRIO_LEVEL
20116 IGNORE_INHIBIT_ASUP
Note
Important!
The SINUMERIK 808D provides two user ASUPs. In the sample application, ASUP1 is used
for manual tool change and ASUP2 is used for the MANUAL MACHINE of the workpiece on
a turning machine with the Manual Machine Plus function.
To Next Page
