Descriptions of the PLC subroutines
3.4 Subroutine 21 - AUX_LAMP (working lamp)
PLC Subroutines Manual
Operating Instructions, 12/2012, 6FC5397-2EP10-0BA0
35
3.4 Subroutine 21 - AUX_LAMP (working lamp)
Purpose
Subroutine 21 is used to control working lamp and can be called in AUX_MCP. One-time
pressing of the "LAMP" key activates the working lamp while double pressing de-activates
the working lamp.
Local variable definition
None
Relevant PLC machine data
None

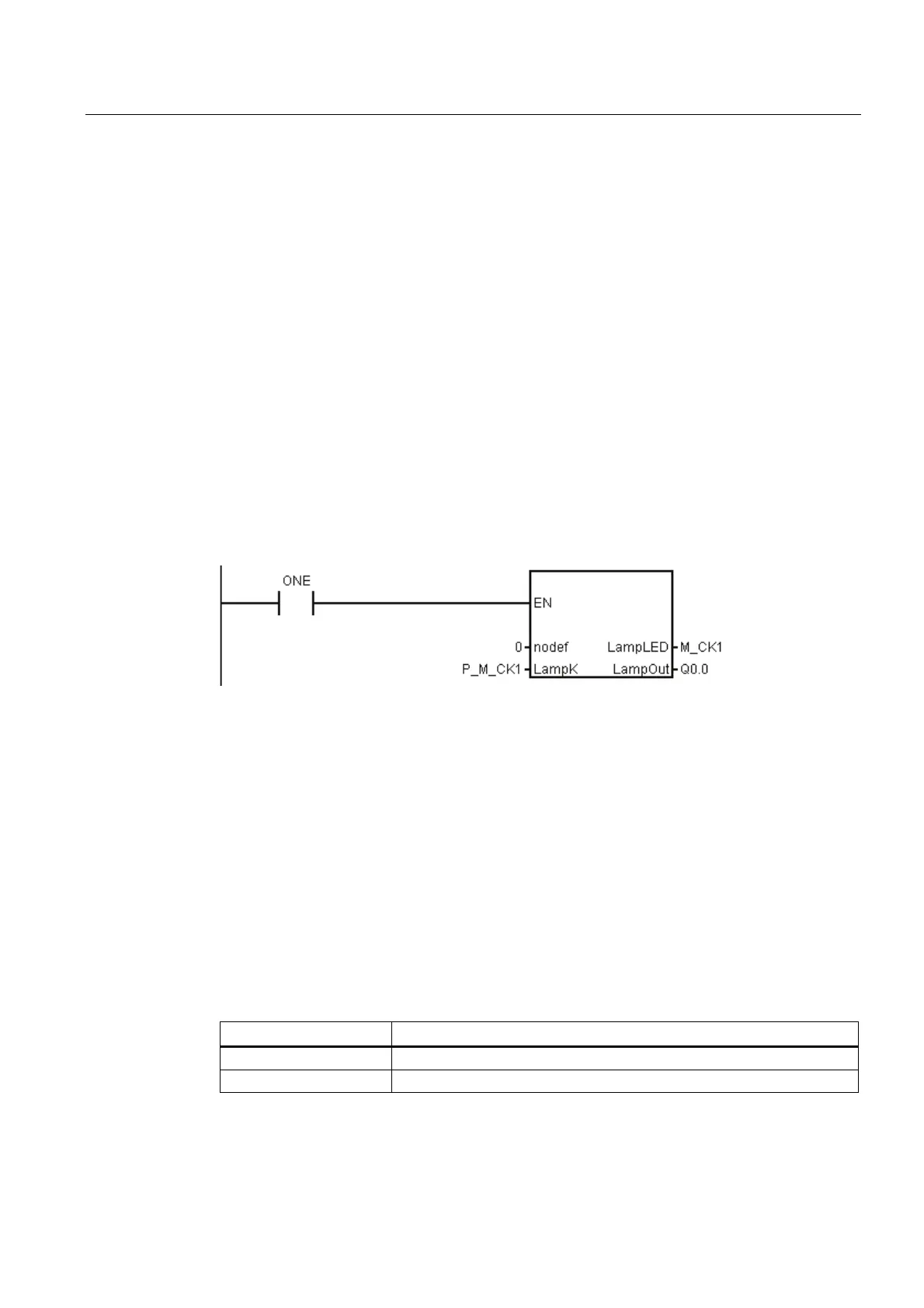

Example for calling subroutine 20
$8;B/$03
3.5 Subroutine 22 - AUX_SAFE_DOOR (safe door)
Purpose
Subroutine 22 is used to control safe door and can be called in AUX_MCP.
Local variable definition
None
Relevant PLC machine data
No. Description
14512 [16].2 Selection of safe door function (0: do not use; 1: use)
14512 [16].3 Safe door function is activated by M01/M02 (0: deactivate; 1: activate)
