7 Transmission Repair
7B Eaton 750 / 751
7 - 24

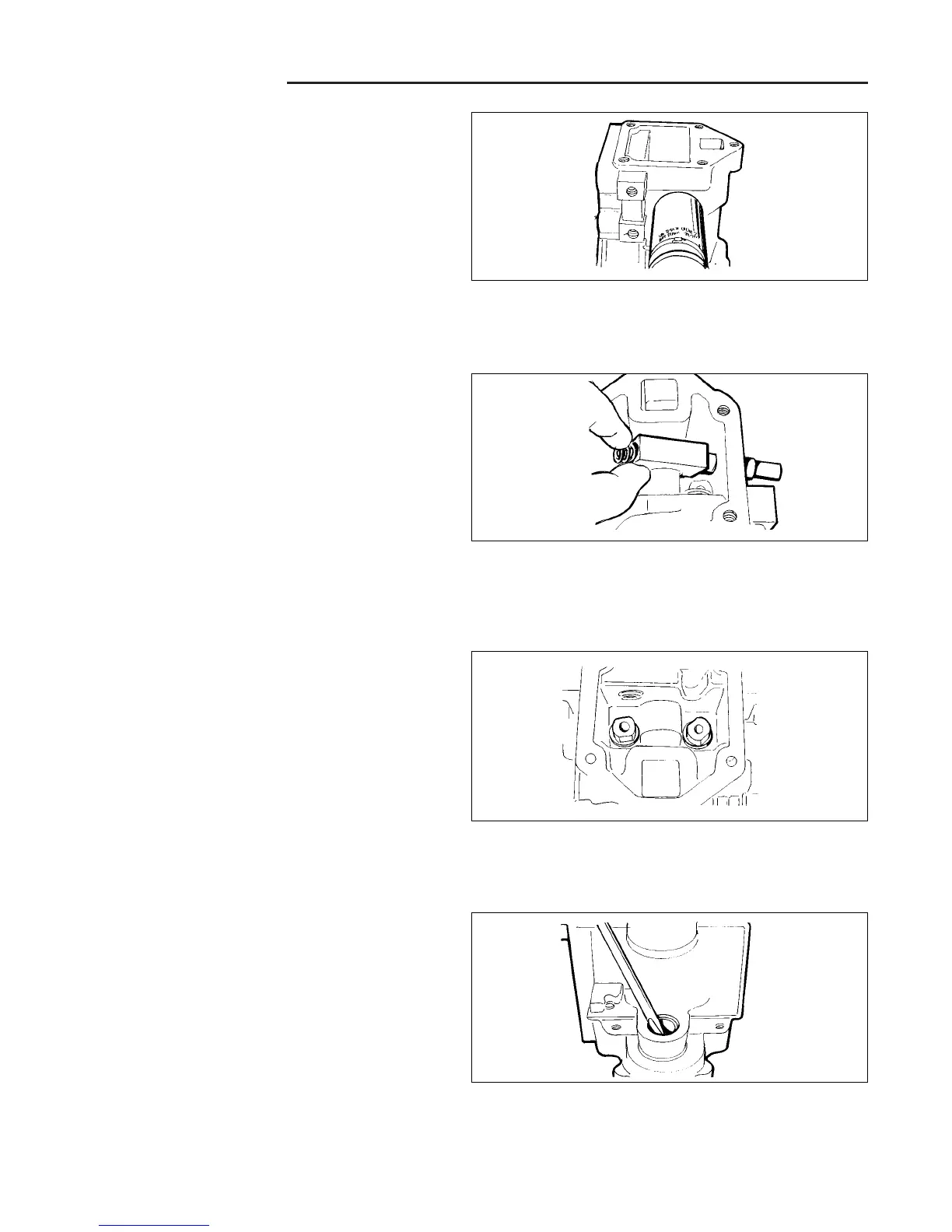

Figure B–54. Remove Bypass Valve Nut
17. To remove bypass valve assembly, use a 1” wrench
to remove the bypass valve nut from the transaxle
case.
18. Remove and discard O-ring from bypass valve nut.
Figure B–55. Remove Bypass Valve Bracket & Spring
19.Remove bypass valve bracket and spring from
transaxle case by sliding out valve nut hole and lifting
upward.
20. Remove spring from bypass valve bracket.
21.Remove and discard O-ring from bypass valve
bracket.
Figure B–56. Check Valve Inspection and Flushing
22. We do not recommend removal of the check valve
assemblies for inspection or cleaning; normal flushing
should be all that is required to clean the check
valves.
Figure B–57. Remove Left and Right Lip Seals
23. Reposition the transaxle housing on its side. Using a
long drift punch, remove and discard the housing lip
seal. Turn housing over and remove opposite lip seal.
To Next Page
