Simplicity LTH Series Service Manual

7 - 43
7 Transmission Repair
7C Tuff Torq K60
1. Seal
2. Bearing
3. Shaft, Axle, Right
4. Bushing
5. Collar
6. Ring, Retaining
7. Shaft, Axle, Left
8. Gear, Differential
9. Washer, Thrust
10.Pinion
11.Shaft, Pinion
12.Gear
13.Bearing
14.Shaft, Pinion, Final
15.Gear
16.Washer
17.Bushing
18.Assembly, Filter, Oil
19.Screw, Self-Tapping
20.Packing
21.Connector
22.Packing
23.Plug
24.Bolt
25.Bolt
26.Washer, Seal
27.Screw, Self-Tapping
28.Housing, Lower

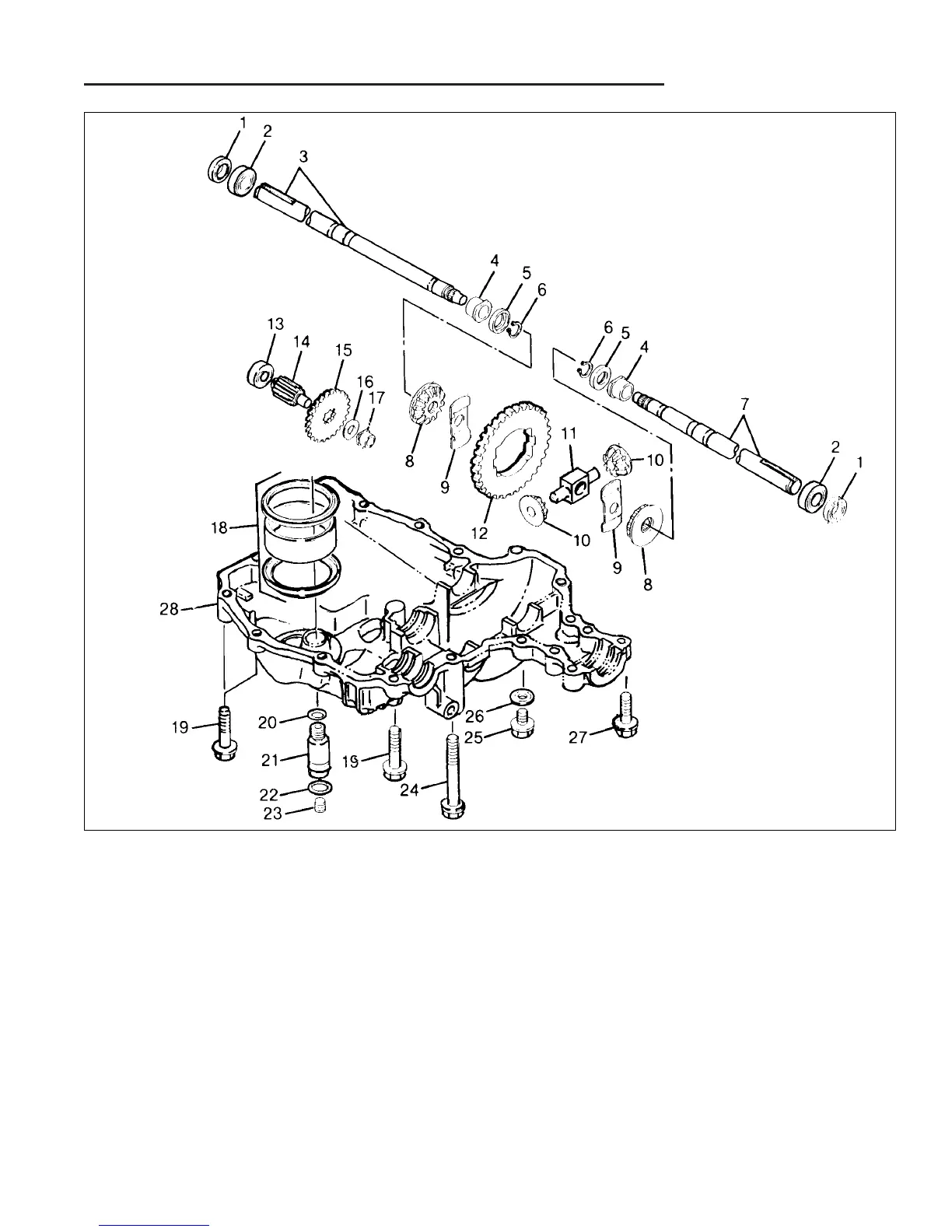

Figure C–3. Tuff Torq K60 Hydrostatic Transaxle
