Simplicity LTH Series Service Manual

7 Transmission Repair
7C Tuff Torq K60
7 - 46

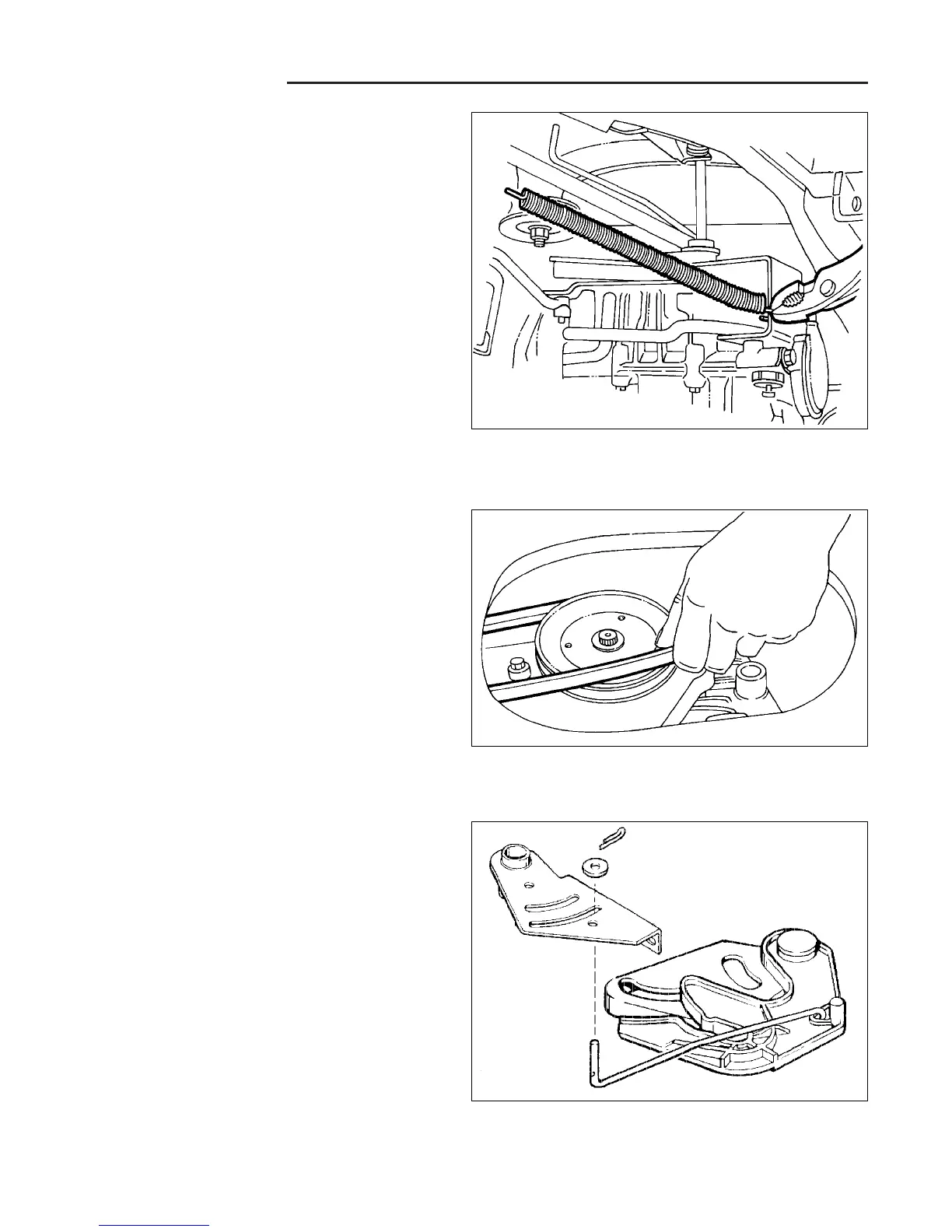

12. Remove the drive spring from the hydro support.
Figure C–9. Remove Hydro Support Drive Spring
13. Remove the hydro drive belt.
Figure C–10. Remove Hydro Drive Belt
14. Remove the cotter pin and washer holding the neutral
return rod to the actuator assembly.
Figure C–11. Remove Neutral Rod Lever
