Simplicity LTH Series Service Manual

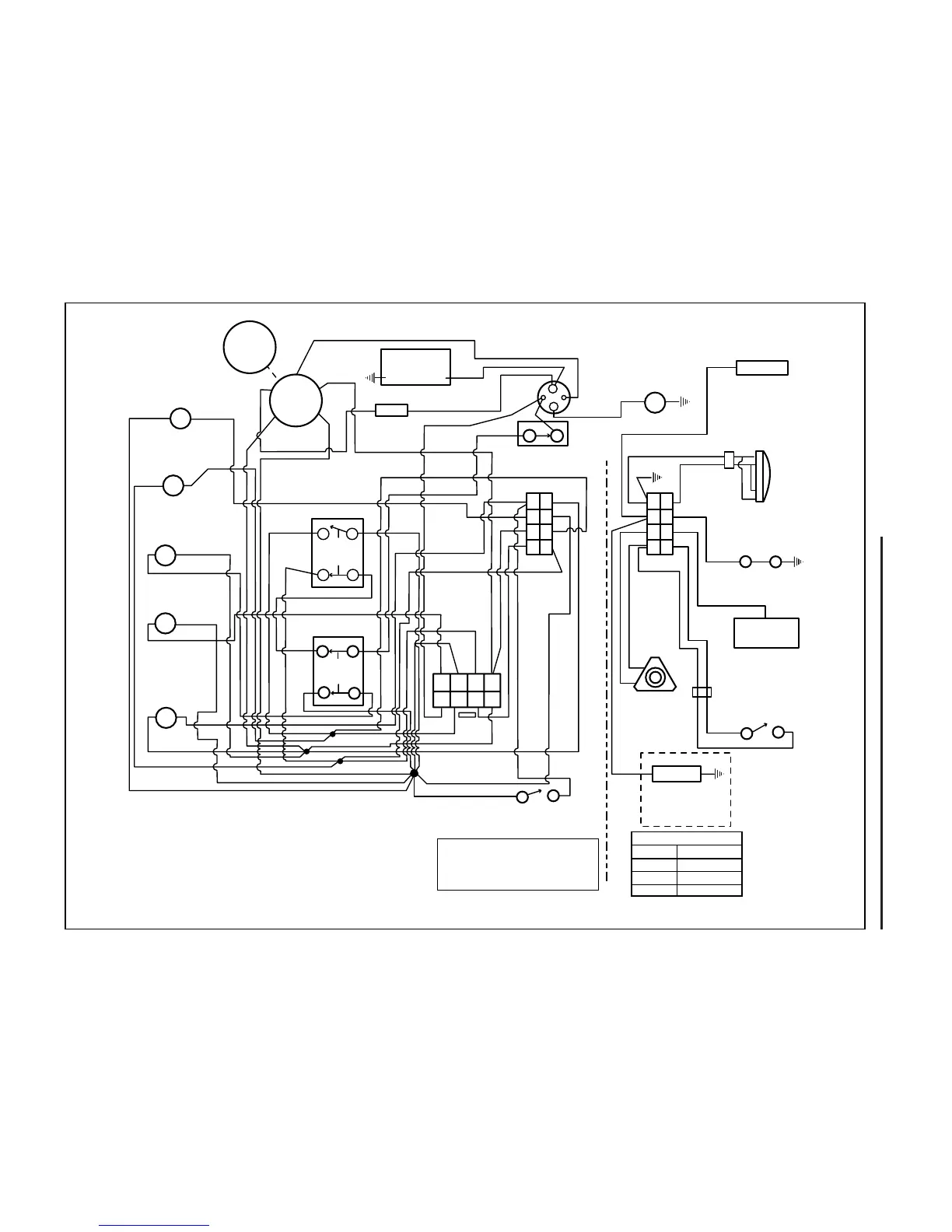

5 Electrical Troubleshooting Wiring Diagram
5 - 22
BLUE
RED / BLACK
WHITE / BLACK
WHITE / BLACK
RED / BLACK
BROWN
BROWN
BROWN / WHITE
BROWN / WHITE
BROWN
RED / WHITE
RED / WHITE
RED / WHITE
ORANGE / BLACK
ORANGE
ORANGE
TAN
TAN
TAN / BLACK
TAN / BLACK
TAN / BLACK
TAN
GREEN
GREEN
GREEN
GREEN / WHITE
GREEN / WHITE
GREEN / WHITE
GREEN / WHITE
BLUE / WHITE
BLUE / WHITE
BLUE / WHITE
BLACK / WHITE
BLACK /
RED
PURPLE / WHITE
PURPLE / WHITE
BLACK / WHITE
BLACK / YELLOW
YELLOW / BLACK
YELLOW / BLACK
GREEN / BLACK
YELLOW
BLACK
BLACK
BLUE
BLUE
SOLENOID
STARTER
ALTERNATOR
HEADLIGHTS
OIL PRESSURE
FUEL
SHUT OFF
16 HP ONLY!
BATTERY
OIL LIGHT
CIRCUIT
BREAKER
IGNITION
SWITCH
FOOT
SWITCH
PTO LIGHT
TRANS. LIGHT
SEAT LIGHT
HEADLIGHT
LIGHT
PTO
SWITCH
TRANS
SWITCH
IGNITION
MODULE
HARNESS
PLUG
(UPPER)
HARNESS
PLUG
(LOWER)
INTERLOCK
MODULE
HEADLIGHT
SWITCH
ELECTRIC
CLUTCH
SEAT
SWITCH
4
1
2
3
4
1
2
3
4
1
23
5
6
7
8
5
6
7
8
56 78
SPLICE "D"
SPLICE "A"
SPLICE "B"
SPLICE "C"
PURPLE
PURPLE
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
WHITE
WHITE
WHITE
RED
RED
RED
RED
RED
B
LA
C
K
LOWER
HARNESS
PTO
START
START
A
LIGHT
C
ED
S
B
M
L
G
S
B
M
L
G
R
S
IGNITION SWITCH
POSITION CIRCUIT MAKE
1.OFF
2. RUN
3. START
G & M
B & L
B & L & S
NOTE:
SPLICE "A" 5.2" FROM HARNESS PLUG.
SPLICE "B" 6.5" FROM HARNESS PLUG.
SPLICE "C" 8.3" FROM HARNESS PLUG.
SPLICE "D" 12.0" FROM HARNESS PLUG.
-
+
UPPER HARNESS
(BACK VIEW
OF SWITCH)
