Singer Quantum Stylist

9960 13

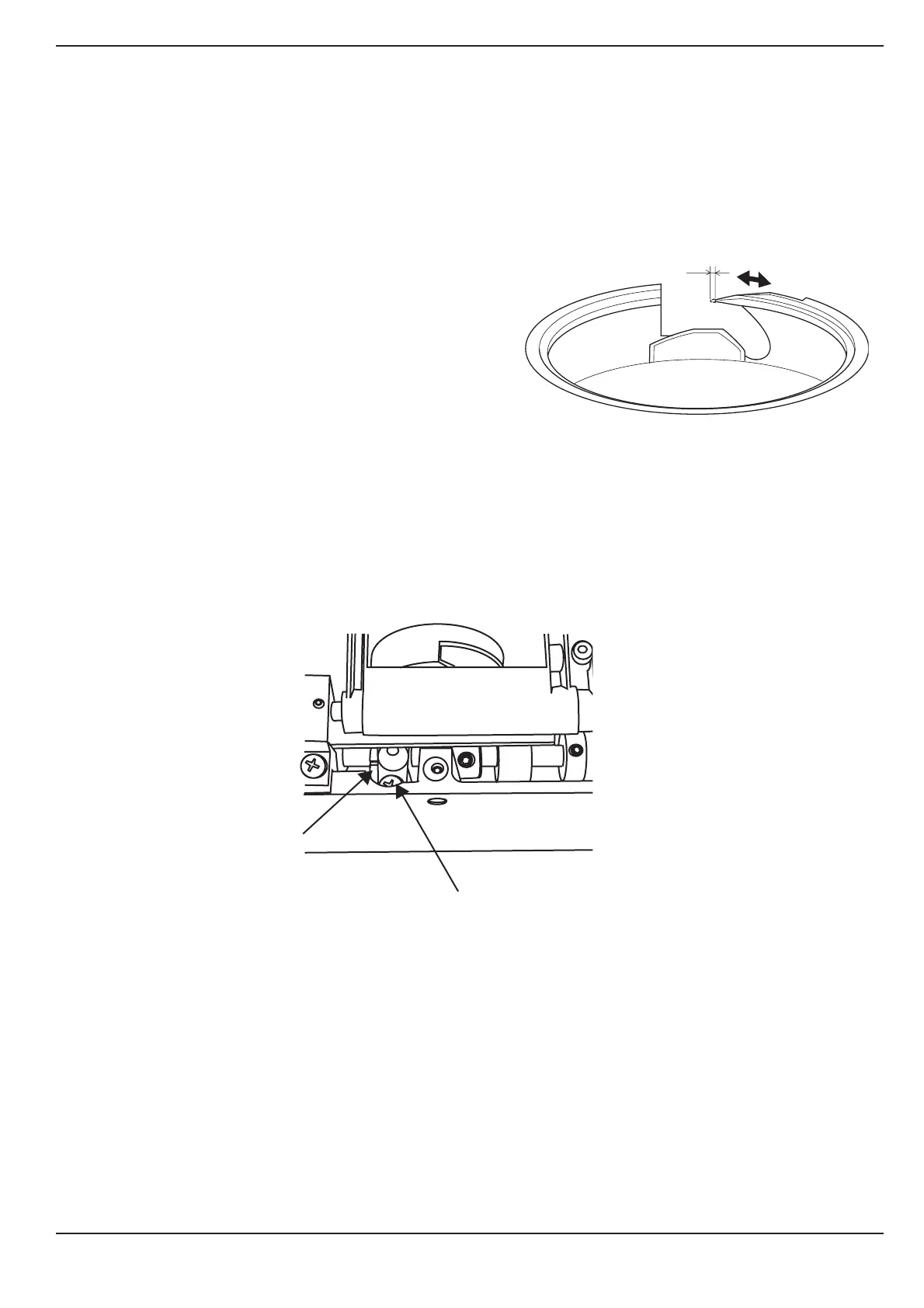

9. The play of the hook gear

It is impossible to obtain an equally large play in one rotation of the cog wheel, but it should be as small

as possible at the tightest spot during the revolution.

Check

1. Rotate the hook back and forth and check the play.

2. Do this check on at least 3 different spots during the revolution of the cog wheel.

(Move the cog wheel with the hand wheel).

3. Free play at the tip of hook may be 0.1-0.3 mm.

Adjustment

1. Remove the covers

2. Loosen, screw (A) in the bearing clamp.

3. The play can now be adjusted by turning the eccentric bearing (C).

Use a ﬂ at screw driver to move the eccentric bearing.

- up the play will increase

- down the play will decrease

4. Tighten the screw (A).

5. Re check.

NOTE! The slot in the bearing, for setting the play ,shall be to the front.

0.1-0.3 mm
