1. Timing of the upper and lower shaft
Check
1. Remove the Front cover.
2. Turn the hand wheel to set the needle bar to its lowest position.

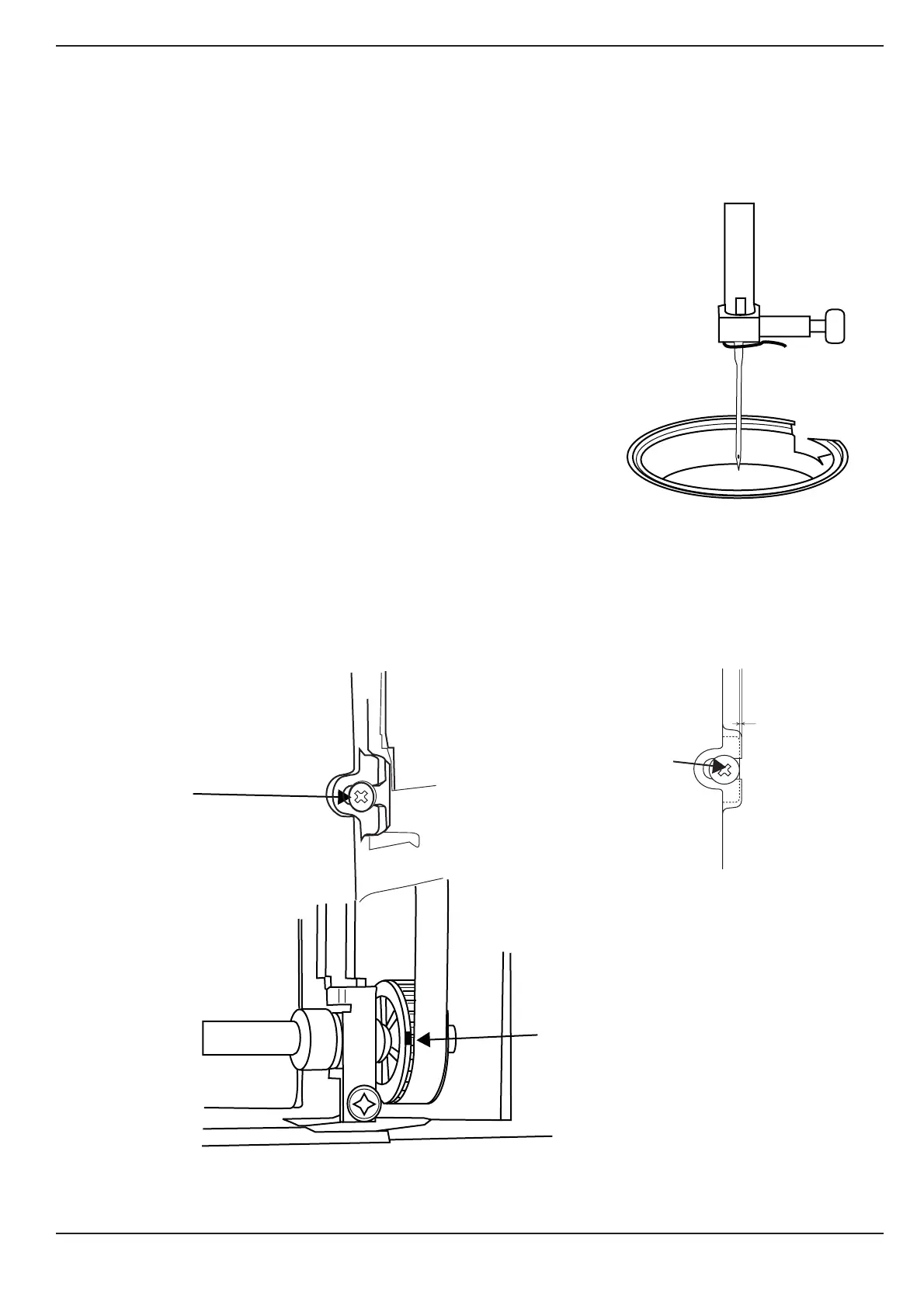

3. At this time, the mark (A) - very small molded line on edge, on the lower shaft timing pulley
must be facing straight towards the front.
Adjustment
1. Remove the Front Cover.
2. Loosen the screw (B) of the timing belt tension pulley bracket.
3. Slip out the timing belt from lower shaft timing pulley.
4. Set the needle bar to its lowest position.
5. Turn the lower shaft timing pulley so that the mark (A) faces toward you.
6. Hook the timing belt on the pulley.
7. Push the tension pulley bracket so that the edge of bracket should be 0-1 mm lower than the casting.
NOTE! After adjustment , be sure to check and/or adjust “Hook timing”
A
B
0-1 mm
B

Singer QUANTUM STYLIST 9960 Specifications

General

Stitch Applications	600
Built-In Needle Threader	Yes
Maximum Sewing Speed	850 stitches per minute
Automatic Thread Cutter	Yes
Drop Feed	Yes
Extension Table	Yes
Type	Computerized
LCD Screen	Yes
Bobbin System	Top drop-in
Number of Buttonholes	13
Lettering Fonts	5
Buttonhole Styles	13
Stitch Width	7mm
Stitch Length	5mm
USB Port	No
Voltage	110V
Warranty	25-year limited warranty
