Singer QUANTUM STYLIST 9960 User Manual

Singer Quantum Stylist
TM
9960 23
Service Program
.
This machine has the Service program to locate the defected a electronic part.
Handling

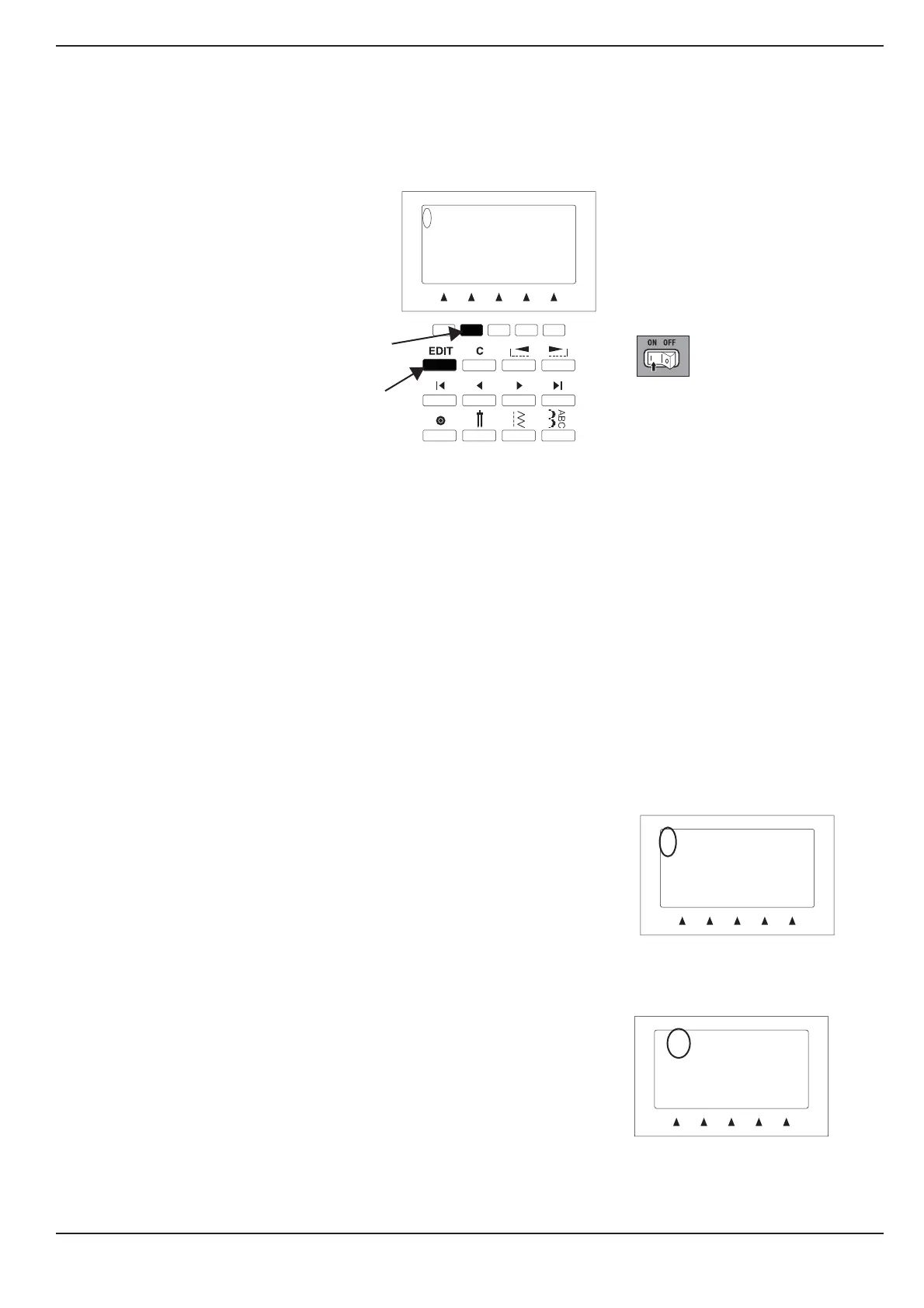

1. Go into the Service program - Sensor menu by pressing the buttons (A) and (C) as shown in illustration
and turn on the power switch
2. When this program has started correctly, the LCD will indicate the conditions of each electrical part as
shown.
3. To quit this program, turn off the power switch.
Service program - Sensor menu
This menu is for checking the different sensors or switches in the machine.
Buttonhole sensor - (b) and (f)
Located on the back side of the zigzag step motor
Check
Lower the buttonhole lever and check the switch by pulling or pushing this lever.
b: Buttonhole lever switch -Rear
1=Neutral 0=Lever is pulled.
f: Buttonhole lever switch -Front
1=Neutral 0=Lever is pushed.
Synchronizer sensor (S), (T) and (s)
The synchronizer is located on the right hand side of the upper shaft.
Check
Turn the handwheel and check the response of each sensor.
S: Stop sensor 1=not intercepted 0=intercepted
T: Timing sensor 1=not intercepted 0=intercepted
s: Speed sensor 1=not intercepted 0=intercepted
+
㨎㨒㧿㨀㨟㨃㨣㧻㨅 㧷 㧲㧩 㧿㧩
㧝㧝㧜㧝㧜㧜㧝㧝㧝 㧜 㧞㧡㧡 㧞㧟㧞
㨇㨆㨉㨇㧲㨉㨇㧸㧱㧰㨉 㨇㨅㨉㨇㨥㨉
A
C
㨎㨒㧿㨀㨟㨃㨣㧻㨅 㧷 㧲㧩 㧿㧩
㧝㧝㧜㧝㧜㧜㧝㧝㧝 㧜 㧞㧡㧡 㧞㧟㧞
㨇㨆㨉㨇㧲㨉㨇㧸㧱㧰㨉 㨇㨅㨉㨇㨥㨉
㨎㨒㧿㨀㨟㨃㨣㧻㨅 㧷 㧲㧩 㧿㧩
㧝㧝㧜㧝㧜㧜㧝㧝㧝 㧜 㧞㧡㧡 㧞㧟㧞
㨇㨆㨉㨇㧲㨉㨇㧸㧱㧰㨉 㨇㨅㨉㨇㨥㨉

Singer QUANTUM STYLIST 9960 Specifications

General

Stitch Applications	600
Built-In Needle Threader	Yes
Maximum Sewing Speed	850 stitches per minute
Automatic Thread Cutter	Yes
Drop Feed	Yes
Extension Table	Yes
Type	Computerized
LCD Screen	Yes
Bobbin System	Top drop-in
Number of Buttonholes	13
Lettering Fonts	5
Buttonhole Styles	13
Stitch Width	7mm
Stitch Length	5mm
USB Port	No
Voltage	110V
Warranty	25-year limited warranty
