Singer QUANTUM STYLIST 9960 User Manual

Singer Quantum Stylist
TM
9960 33

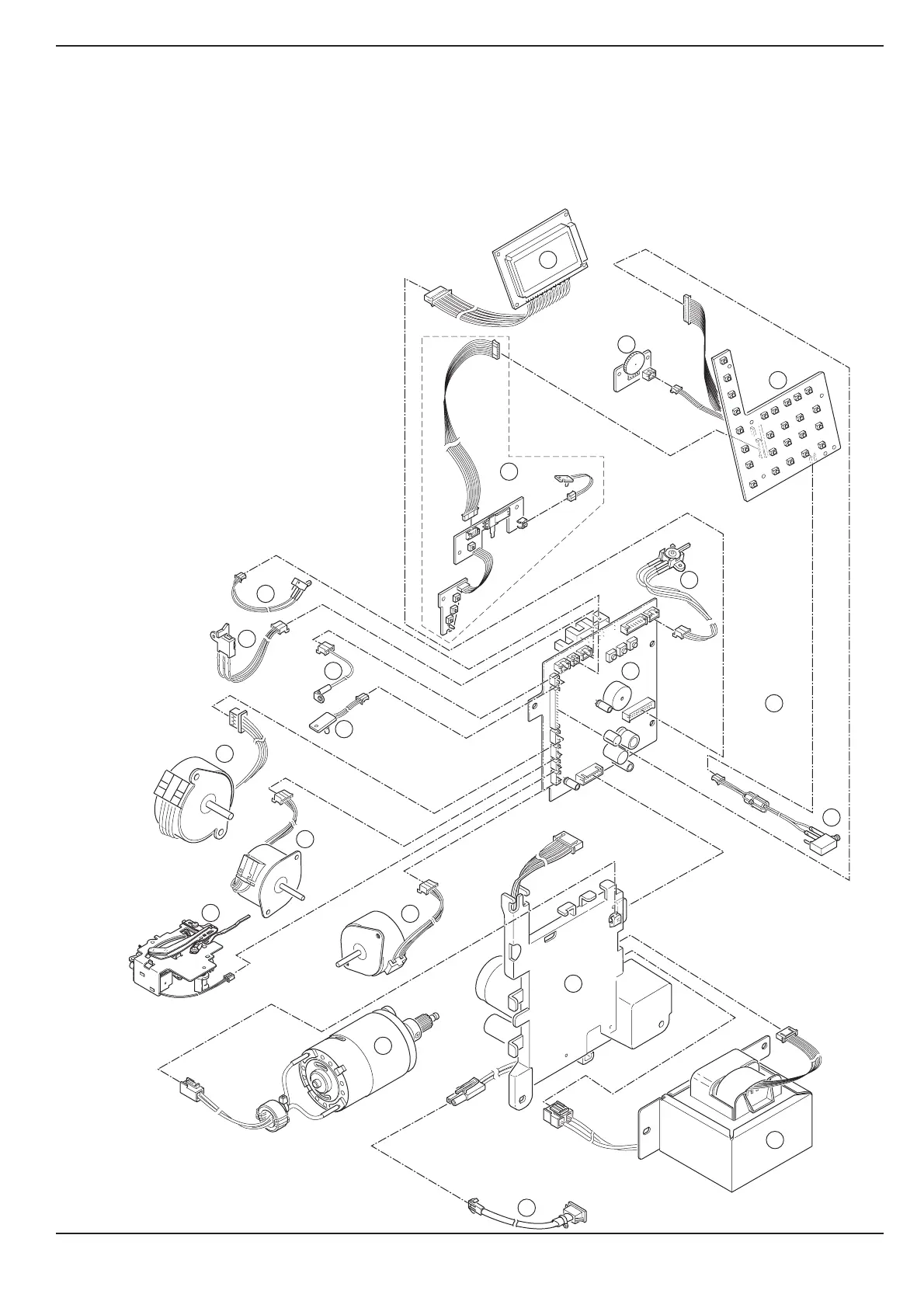

Electrical Parts Connection
a. CPU Board
b. Power Circuit Board (CN14)
c. Transformer
d. Terminal Box Assy.
e. Motor
f. F Step Motor (CN13)
g. Thread Cutter Assy. (CN12)
h. Z Step Motor (CN9)
i. Tension Release step Motor (CN8)
j. LED Board Assy. (CN6)
k. Thread Check Spring Cord (CN5)
l. BH Switch Assy. (CN3)
m. Presser Foot Switch Assy. (CN4)
n. Bobbin Winder Switch (CN1)
o. Circuit Boards
p. LCD Assy. (CN11)
q. Contrast Control Board Assy.
r. Display Board Assy. (CN7)
s. Controller Jack Assy.
a
n
e
b
c
d
h
o
p
q
r
s
v
f
g
i
j
k
l
m

Singer QUANTUM STYLIST 9960 Specifications

General

Stitch Applications	600
Built-In Needle Threader	Yes
Maximum Sewing Speed	850 stitches per minute
Automatic Thread Cutter	Yes
Drop Feed	Yes
Extension Table	Yes
Type	Computerized
LCD Screen	Yes
Bobbin System	Top drop-in
Number of Buttonholes	13
Lettering Fonts	5
Buttonhole Styles	13
Stitch Width	7mm
Stitch Length	5mm
USB Port	No
Voltage	110V
Warranty	25-year limited warranty
