APC715 Pump Unit Controller
APC715 Pump Unit Controller ISSUE 2013-08-28 Version 1.0 Page 25 of 62
6 CONNECTIONS

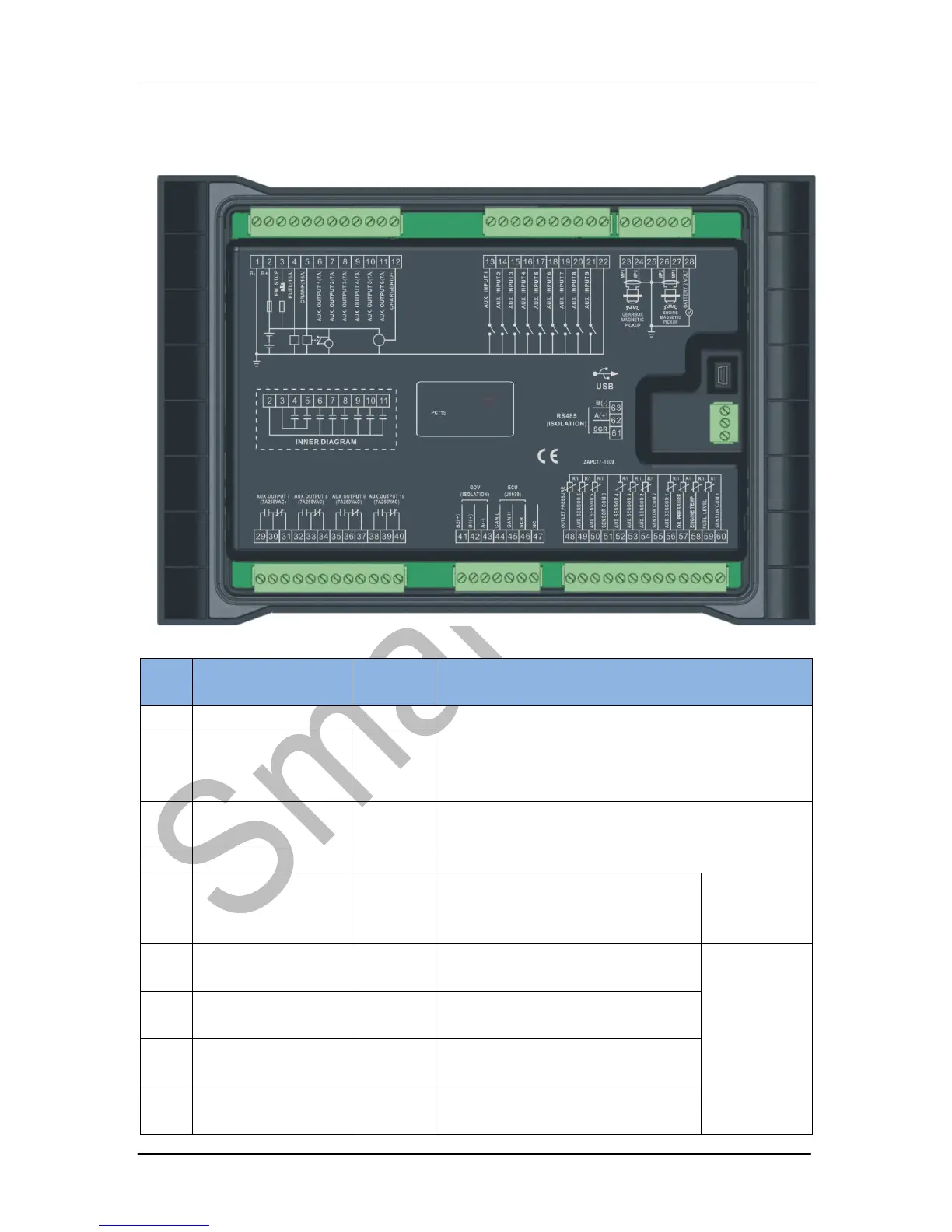

APC715 controller back panel is shown below:
Description of terminal connections:
Pin
Function
Cable
Size
Description
1
B-
2.5mm
2
Connected with negative of starter battery.
2
B+
2.5mm
2
Connected with positive of starter battery. If
wire length is over 30m, better to double wires
in parallel. Max. 20A fuse is recommended.
3
Emergency Stop
2.5mm
2
Connected with B+ power supply via
emergency stop button.
4
Fuel Relay Output
1.5mm
2
B+ power is supplied by terminal 3, rated 16A
5
Start Relay Output
1.5mm
2
B+ power is supplied by
terminal 3, rated 16A
Connected
to starter
coil
6
Aux. Output 1
1.5mm
2
B+ power is supplied by
terminal 2, rated 7A
Details see
form 2
7
Aux. Output 2
1.5mm
2
B+ power is supplied by
terminal 2, rated 7A
8
Aux. Output 3
1.5mm
2
B+ power is supplied by
terminal 2, rated 7A
9
Aux. Output 4
1.5mm
2
B+ power is supplied by
terminal 2, rated 7A
