Chapter 6 Option
HRR Series 6.1 Option DM 【 Electric conductivity control function , DI water (pure water) piping 】
6-1
Chapter 6 Option
6.1 Option DM【Electric conductivity control function ,
DI water (pure water) piping】
6.1.1 Option DM【Electric conductivity control function , DI water
(pure water) piping】
This function is available for customers who selected option DM(Electric
conductivity control function , DI water (pure water) piping). By entering the
set value of electric conductivity and hysteresis, flow of circulating fluid to the
DI filter is controlled by the solenoid valve to control electric conductivity. The
measurement range and setting range are as follows.
Measurement range of
electric conductivity
2.0 to 48.0μ S/cm
Set range of
target electric conductivity
5.0 to 45.0μ S/cm 1
Set range of
electric conductivity hysteresis
2.0 to 10.0μ S/cm
*1 Default setting is set to ”Electric conductivity set value:
25.0 μS / cm" and “hysteresis: 5.0 μS / cm”

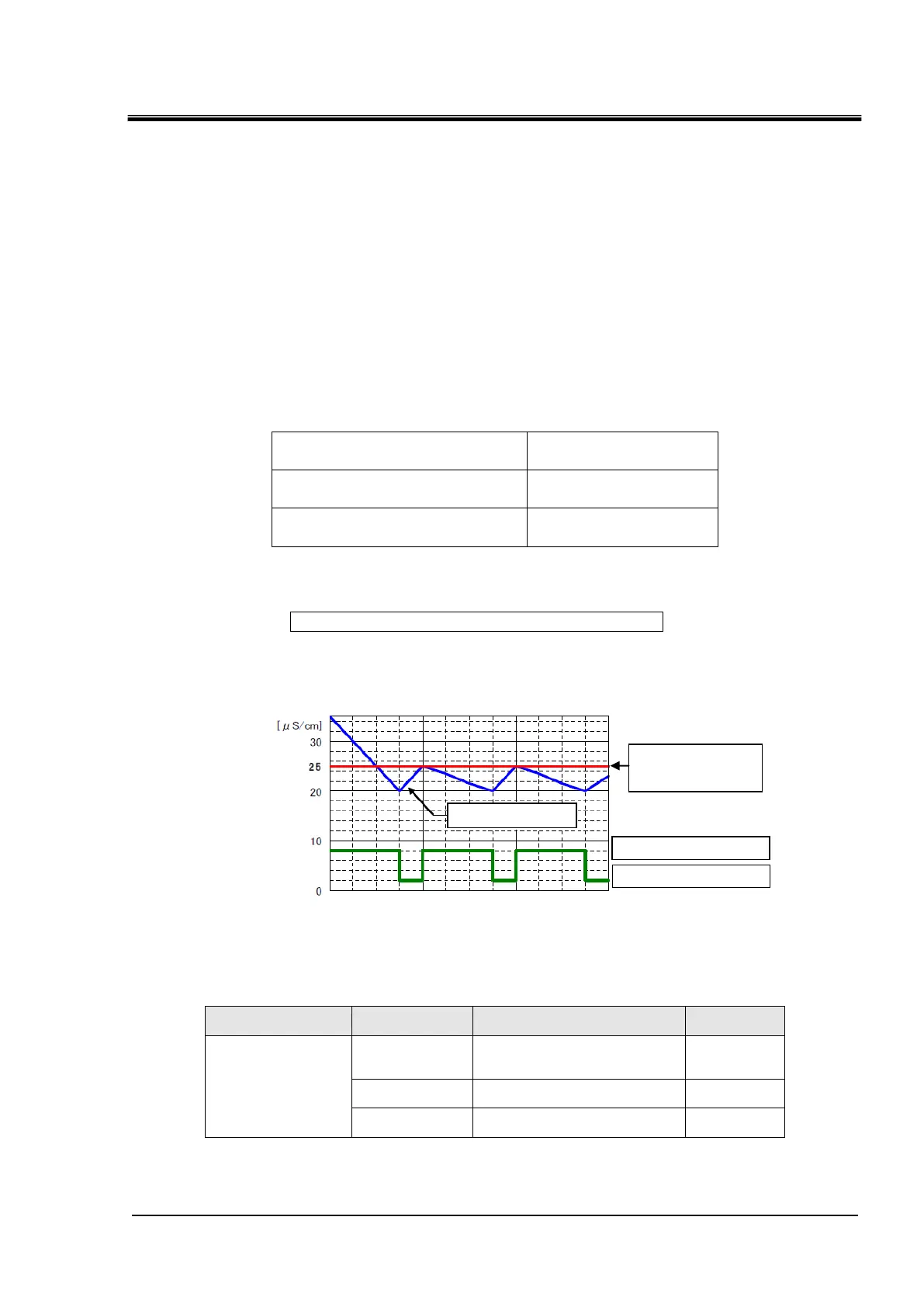

Example of operation of electric conductivity control
The solenoid valve for electric conductivity
control can be made normally open/normally closed.
(This function is available in operation.)
Content
Content of
selection
solenoid valve control
Default
setting
Electric conductivity
control method
CTRL
The solenoid valve
opens and closes and
conductivityis controlled.
○
OPEN
The solenoid valve
normally open
－
CLOSE
The solenoid valve
normally closed
－
Electric conductivity target value : 25.0 [µS / cm]
Electric conductivity control hysteresis : 5.0 [µS / cm]
Electric
conductivity
Elapsed time
Electric conductivity
Solenoid valve : Open
Solenoid valve :Close
Set value of target
electric conductivity
