HRR Series 9.4 Cooling capacity
9-11
9.4 Cooling capacity
9.4.1 HRR012‐A/W‐20‐

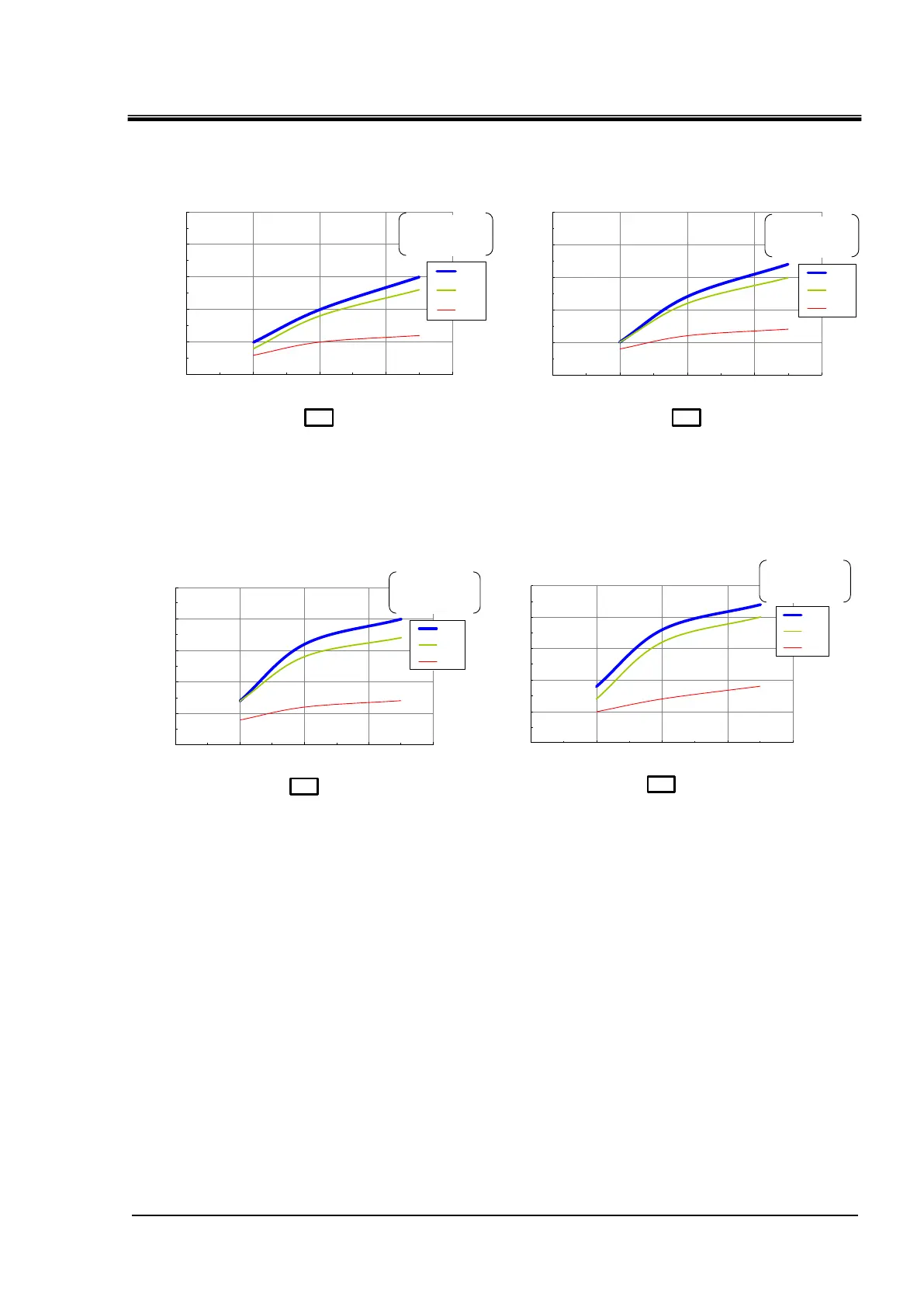

Fig 9-7 Cooling capacity (HRR012-A/W-20)
9.4.2 HRR018‐A/W‐20‐
Fig 9-8 Cooling capacity (HRR018-A/W-20)
The cooling capacity will be reduced by 300W when option: –T and –MT are selected.
The cooling capacity will be reduced by 300W when option: –T and –MT are selected.
0
500
1000
1500
2000
2500
0 10 20 30 40
Cooling capacity [W]
Circulating fluid temperature [℃]
50Hz
25℃
32℃
40℃
Ambient temp.
or
Facility water temp.
0
500
1000
1500
2000
2500
0 10 20 30 40
Cooling capacity [W]
Circulating fluid temperature [℃]
60Hz
25℃
32℃
40℃
Ambient temp.
or
Facility water temp.
0
500
1000
1500
2000
2500
0 10 20 30 40
Cooling capacity [W]
Circulating fluid temperature [℃]
50Hz
25℃
32℃
40℃
Ambient temp.
or
Facility water temp.
0
500
1000
1500
2000
2500
0 10 20 30 40
Cooling capacity [W]
Circulating fluid temperature [℃]
60Hz
25℃
32℃
40℃
Ambient temp.
or
Facility water temp.
