Sony DVCAM DSR-PD170P User Manual

17
Getting Started

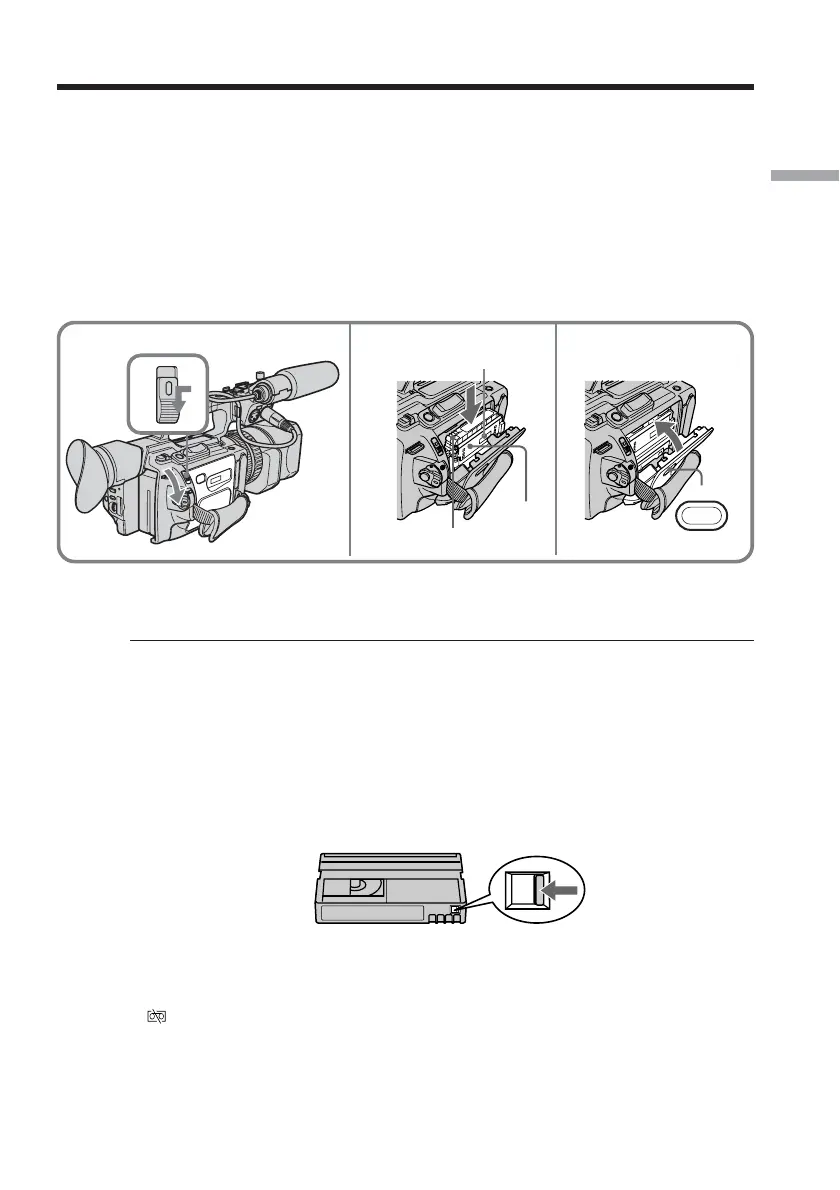

Step 4 Inserting a cassette
(1) Install the power source (p. 11).
(2) While pressing the small blue button on the EJECT switch, slide it in the
direction of the arrow. After the cassette lid is opened, the cassette
compartment automatically opens.
(3) Push the middle portion of the back of the cassette to insert it.
Insert the cassette in a straight line deeply into the cassette compartment with
the window facing out and the write-protect tab facing upward.
(4) Close the cassette compartment by pressing the PUSH mark on it.
(5) Close the cassette lid until it clicks by pressing the PUSH button on the lid.
To eject a cassette
Follow the procedure above, and take out the cassette in step 3.
Note
The cassette lid will not be closed when you press any part of the lid other than the
PUSH button.
When you use cassettes with cassette memory
Read the instruction about cassette memory to use this function properly (p. 142).
To prevent accidental erasure
Slide the write-protect tab on the cassette to SAVE.
If the grip strap prevents the cassette lid from opening fully
Adjust the length of the grip strap (p. 166).
If flashes even if the cassette has been inserted
Press the PUSH button again to close the cover firmly.
2
3,4 5
PUSH
Write-protect tab
Window
PUSH
