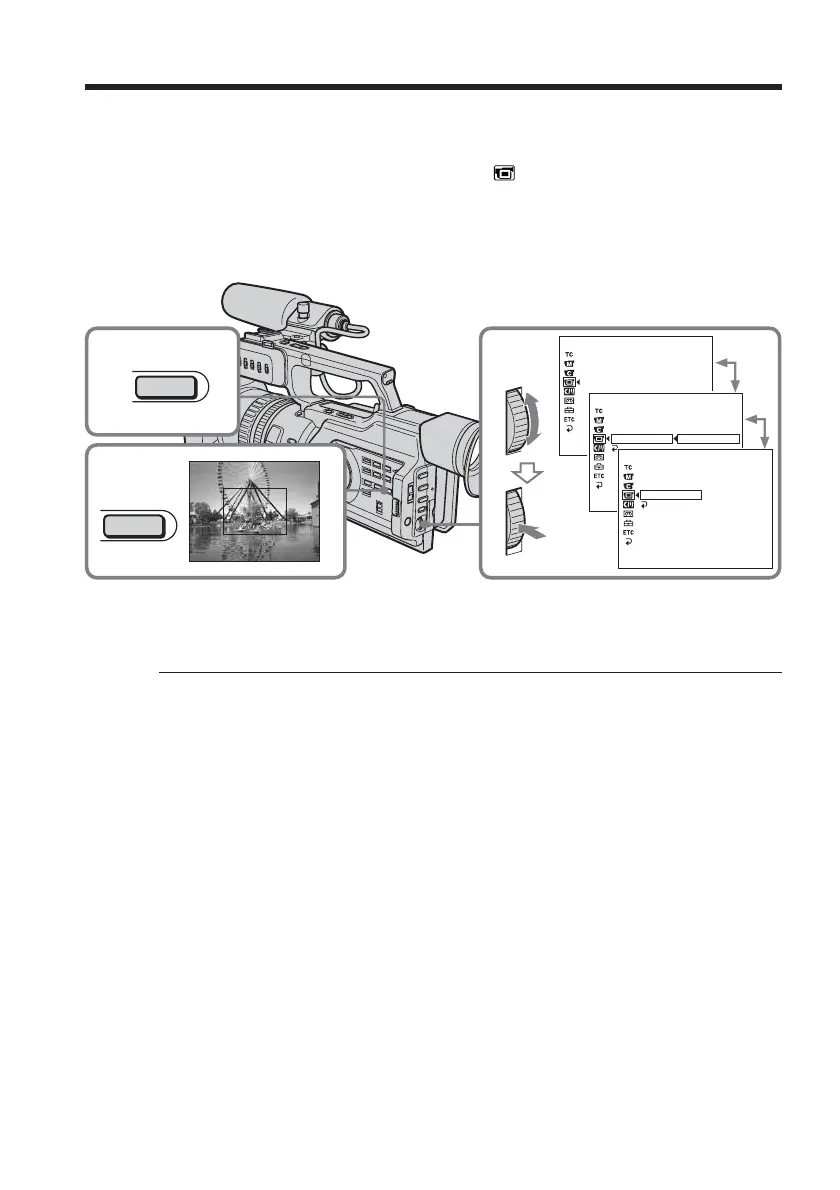

Using the guide frame
You can easily make the picture be on a horizontal line using the guide frame. The
guide frame is not recorded.
(1) Press MENU to display the menu in standby, recording, or memory mode.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select GUIDEFRAME, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(5) Press MENU to erase the menu display. The guide frame is displayed on the
LCD screen or in the viewfinder.
To clear the guide frame
Select OFF in step 4, then press the SEL/PUSH EXEC dial or simply press DISPLAY.
Note
The guide frame indicates only a rough level. The size and position of the guide frame
do not affect the setting of the camcorder.
If you set GUIDEFRAME to ON
The other screen indicators are also displayed on the LCD screen or in the viewfinder.
