Identifying the parts and controls

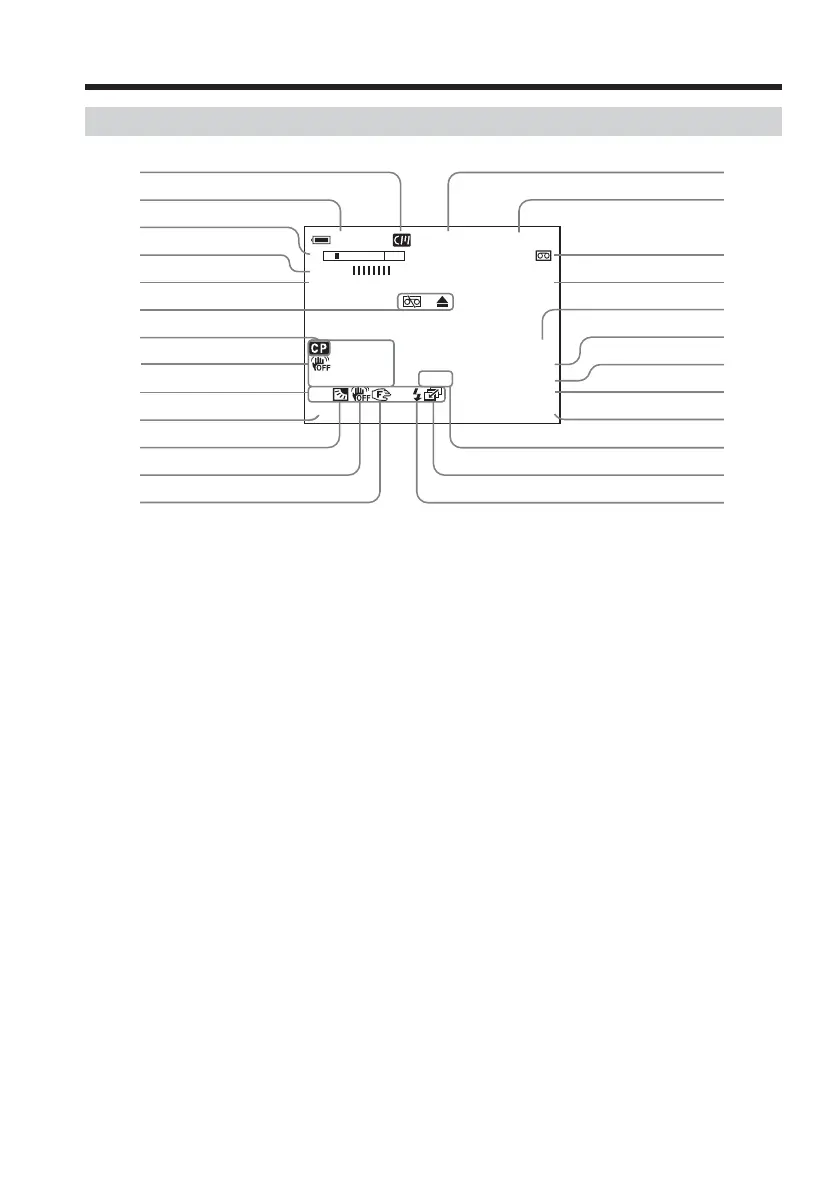

Operation indicators
1 Cassette memory (p. 142)
2
Remaining battery time (p. 24)
3 Zoom (p. 23)/Data file name (p. 113)
4 Digital effect (p. 40)/FADER (p. 38)/
MEMORY MIX (p. 121)
5 16:9WIDE (p. 37)/PROG. SCAN (p. 35)
6 Warning (p. 153)
7 Custom preset (p. 57)
8 Data code (p. 30)/AE SHIFT (p. 50)/
GAIN (p. 45)/IRIS (p. 44)/SteadyShot
OFF (p. 30)/White balance (p. 51)/
Shutter speed (p. 46)
9 LCD bright (p. 21)/Volume (p. 28)
0 Date (p. 30)
qa Backlight (p. 25)/Spot light (p. 26)
qs SteadyShot OFF (p. 107)
qd Manual focus/Infinity (p. 59)
qf Standby/Recording (p. 18)/
Video control mode (p. 31)
qg Time code (p. 24)/
Self-diagnosis (p. 152)/
Photo mode (p. 34)/
Image number (p. 130)/
User bits (p. 93)
qh Remaining tape (p. 24)/
Memory playback (p. 130)
qj END SEARCH (p. 27)/
FRAME REC (p. 62)/
Interval recording (p. 60)
qk DV IN (p. 85)/AVtDV OUT
ql DVCAM format /DV format SP mode
(p. 24)
w; Audio mode (p. 110)
wa Data file name
This indicator appears when the
MEMORY MIX functions work.
ws Audio input level/Time (p. 24)
wd ND filter (p. 47)
wf Continuous mode (p. 119)
wg Video flash ready
This indicator appears when you use the
video flash light (optional).
STBY
ND
1
00:00:12:34
120min
END
SEARCH
DV IN
DVCAM
48K
100–0019
12:05:56
120min
W T
ST I LL
16:9WIDE
AUTO
50 ATW
F11 0d B
4 7 2003
qk
qj
qh
qg
qf
wd
wf
wg
wa
ws
ql
6
5
4
7
3
2
1
qa
qs
qd
9
0
8
w;
