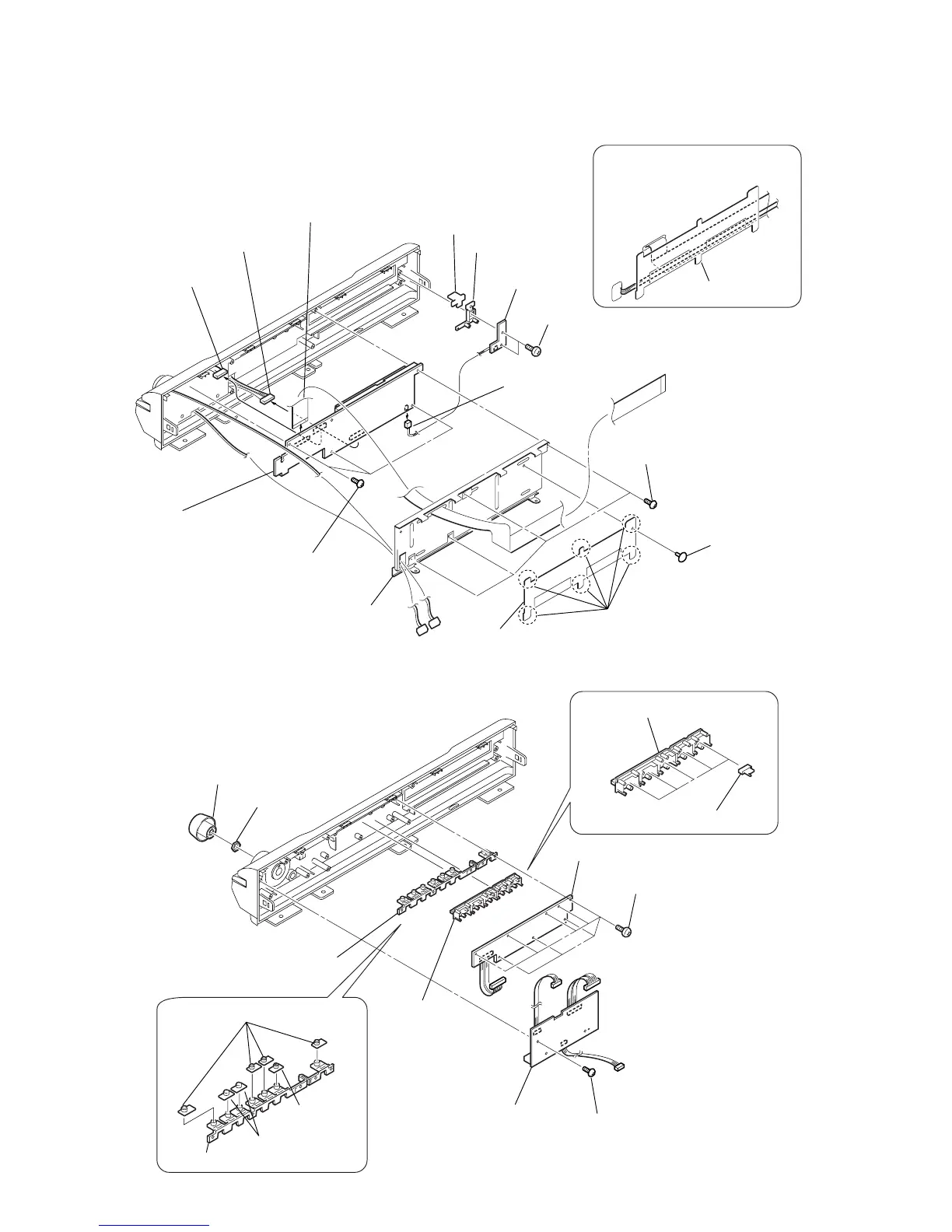

HCD-DX375
3-4. JACK BOARD, LED BOARD
3-3. FL BOARD, SW BOARD
1 rivet
4 four screws (+BVTP 2.6)
qs two s crews
(+BVTP 2.6)
6 three screws (+BVTP 2.6)
9 wire (flat type)
23core (CN801)
7 connector (CN811)
q; connector (CNP801)
8 connector (CN805)
2 six claws
3 hold plate (FFC)
5 shield plate (FC)
qd SW board
qa FL board
qf button base
(power)
qg cap (power)
hold plate (FFC)
When reassembling, route the
harness and flexible cable as
shown in the illustration.
4 JACK board
qa four caps (FUNK)
qs cap (PLAY)
qd two caps (AMS)
qf button base (PLAY)
5 eight screws (+BVTP 2.6)
6 LED board
7 button (disk),
indicator (disk)
9 button (disk)
q; button (play)
3 screw (+BVTP 2.6)
1 knob (vol)
2 nut
8 five indicators (disk)
