19
HCD-DX375

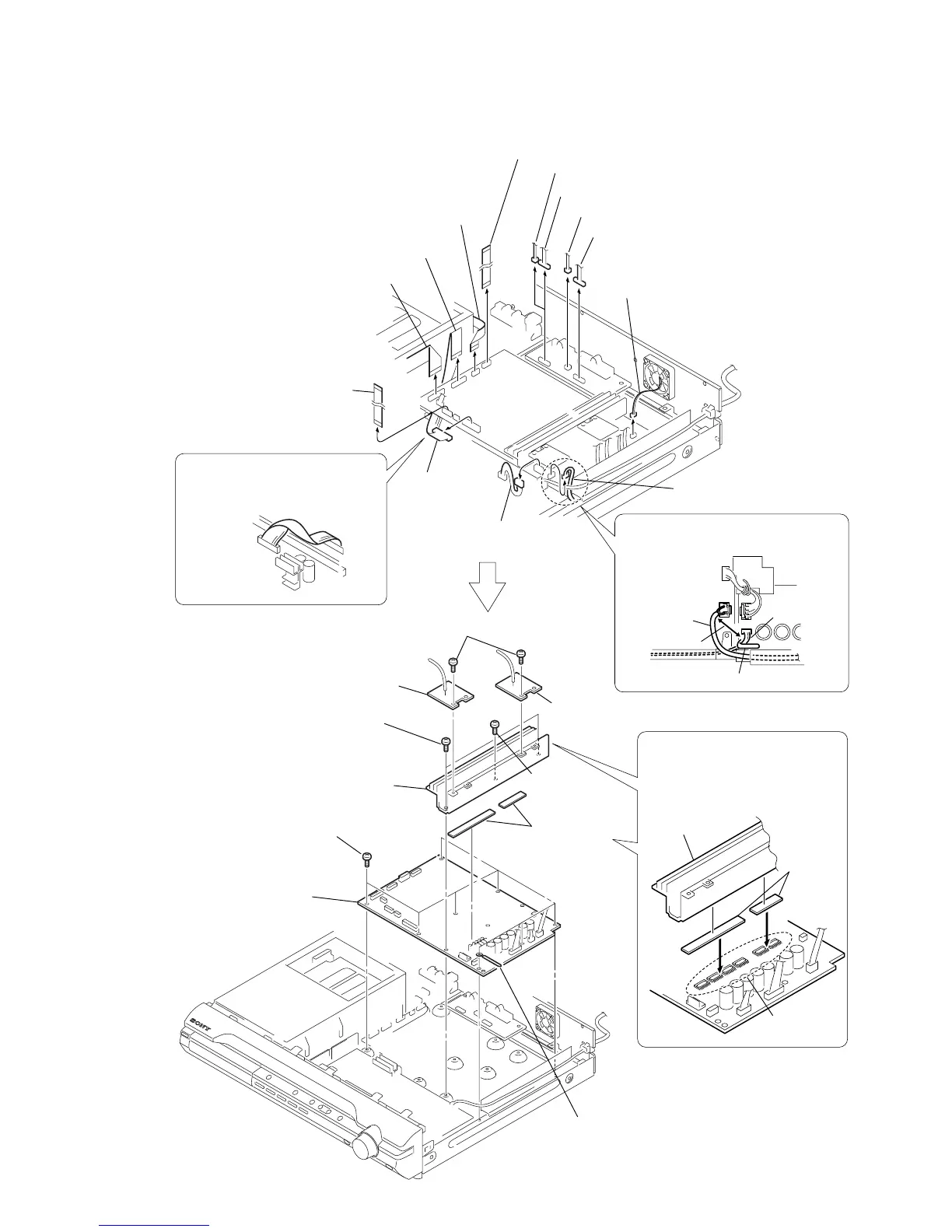

3-8. MAIN BOARD
1 wire (flat type) 23core (CN501)
qd wire (flat type) 11core (CN504)
wd MAIN board
5 connector (CN303)
6 connector (CN303)
wa eight screws (+BV 3)
When re-assembling, attaching the
two heat radiation sheets on the
IC MAIN board first, and then attach
the heat sink (AMP).
After twist the harness once,
install the connector.
POWER board
MAIN board
heatsink (AMP)
radiation
sheets
IC on the
MAIN board
2 wire (flat type) 21core (CN622)
3 wire (flat type) 15core (CN601)
4 wire (flat type) 9core (CN701)
w; two radiation
sheet
When re-assembling, leave 30 mm
between harnesses A and B for safety.
harnesses A
harnesses B
clamp
30mm
7 connector (CN302)
8 connector (CN301)
9 connector (CN3000)
0 connector (CN3001)
qa connector
(CN3002)
qs connector
(CN506)
qf two screws (+BV 3)
ws clamp
qh HEATSINK B board
ql heatsink (AMP)
qg HEATSINK A board
qk screw
(+BVTP 3 × 12)
qj two screws
(+BVTP 3 × 10)
