84
HCD-DX375
Ref. No.
Part No.
Description
Remark

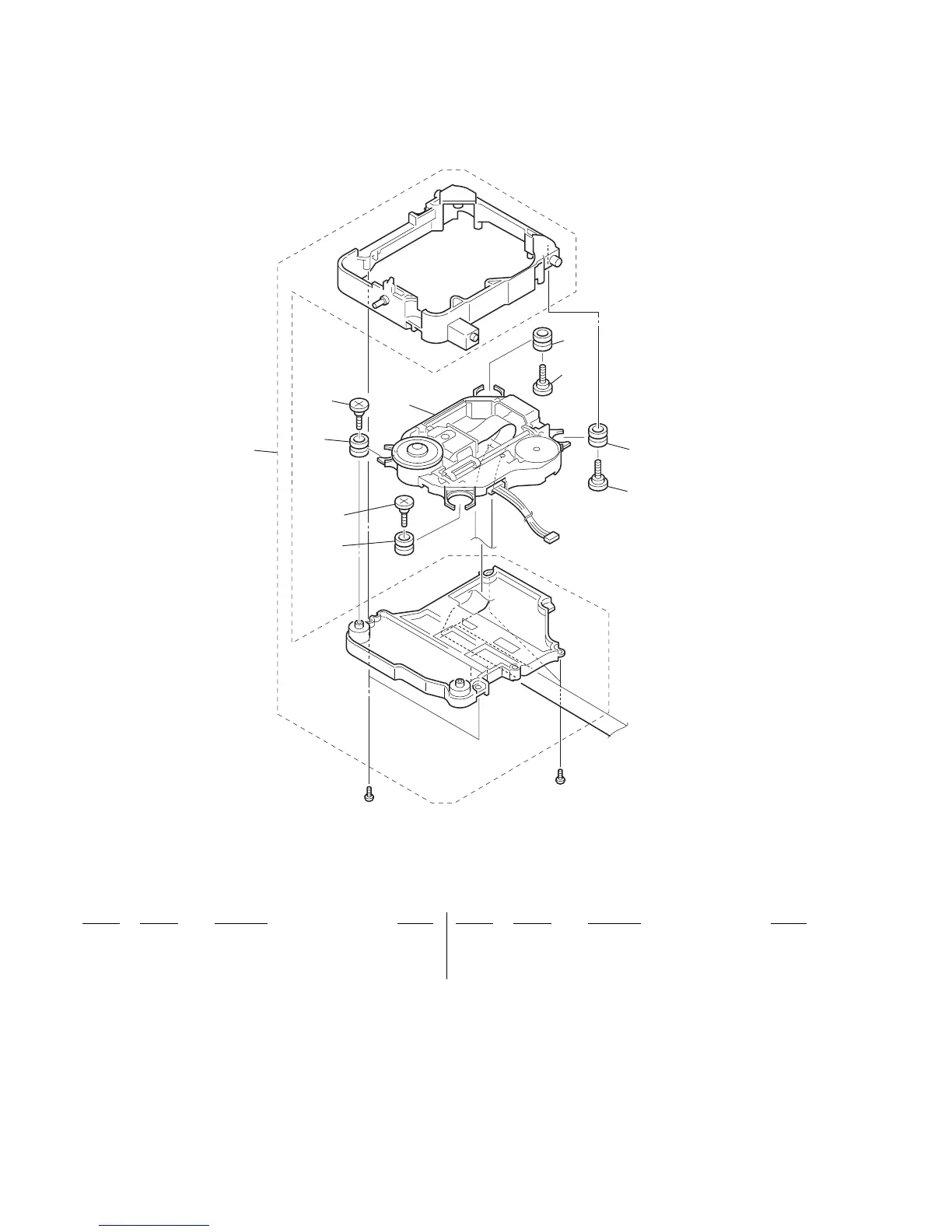

7-7.
BASE UNIT (D
VBU101)
301
303
303
303
304
304
304
304
302
303
#6
#6
Ref. No.
Part No.
Description
Remark
301
X-4956-097-1
HOLDER (310) ASSY
0
302
8-820-291-02
OPTICAL PICK-UP (KHM-310CAB/C2RP)
303
2-634-618-01
INSULA
TOR
304
3-087-599-01
INSULA
TOR SCREW
#6
7-685-534-19
SCREW +BTP 2.6X8 TYPE2 N-S
83
85
