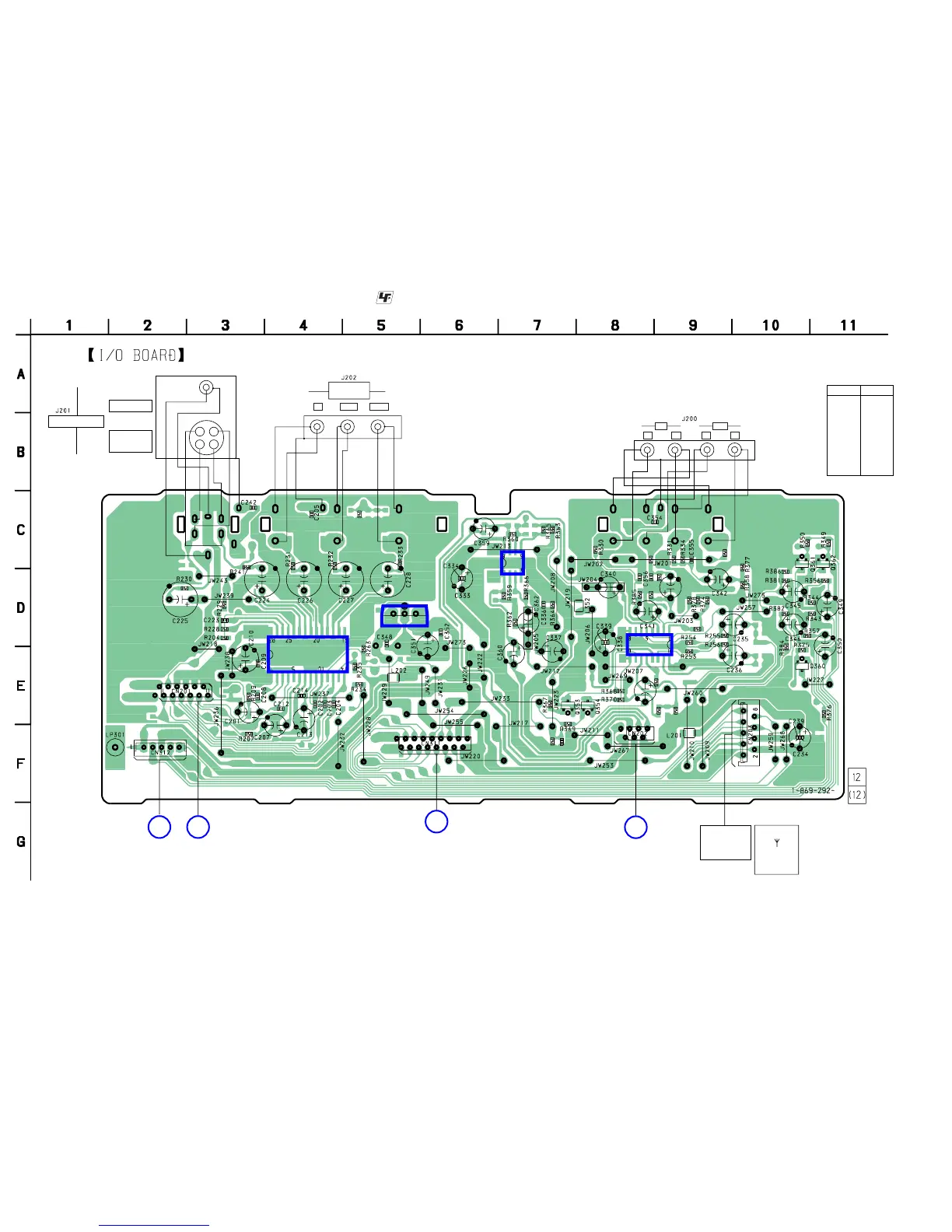

6-23. PRINTED WIRING BOARD – I/O BOARD –
• See page 33 for Circuit Boards Location.
:Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
IC201 E-4
IC352 D-8
IC353 C-7
IC360 D-5
Q353 E-7
Q354 E-8
Q360 E-10
Q361 C-10
Q362 C-11
2 1
4 3
S VIDEO
(DVD ONLY)
VIDEO
MONITOR OUT
C R /P R
Y
COMPONENT
VIDEO OUT
C
B /P B
L
TV
R LR
VCR
TUNER
UNIT
AM
COAXIAL
FM75Ω
13
5
1
15
EE
5
1
E
EE
R293
R216 C216
C218
R224
JR364
R225
R220
R339
R219
R215
C215
C219
R338
JR362
C
DMB12 BOARD
CN4302
(Page 39)
E
MAIN BOARD
CN601
(Page 48)
B
DMB12 BOARD
CN4301
(Page 39)
L
JACK BOARD
CN402
(Page 58)
IC201
IC360
IC353
IC352
