17
HCD-DX375

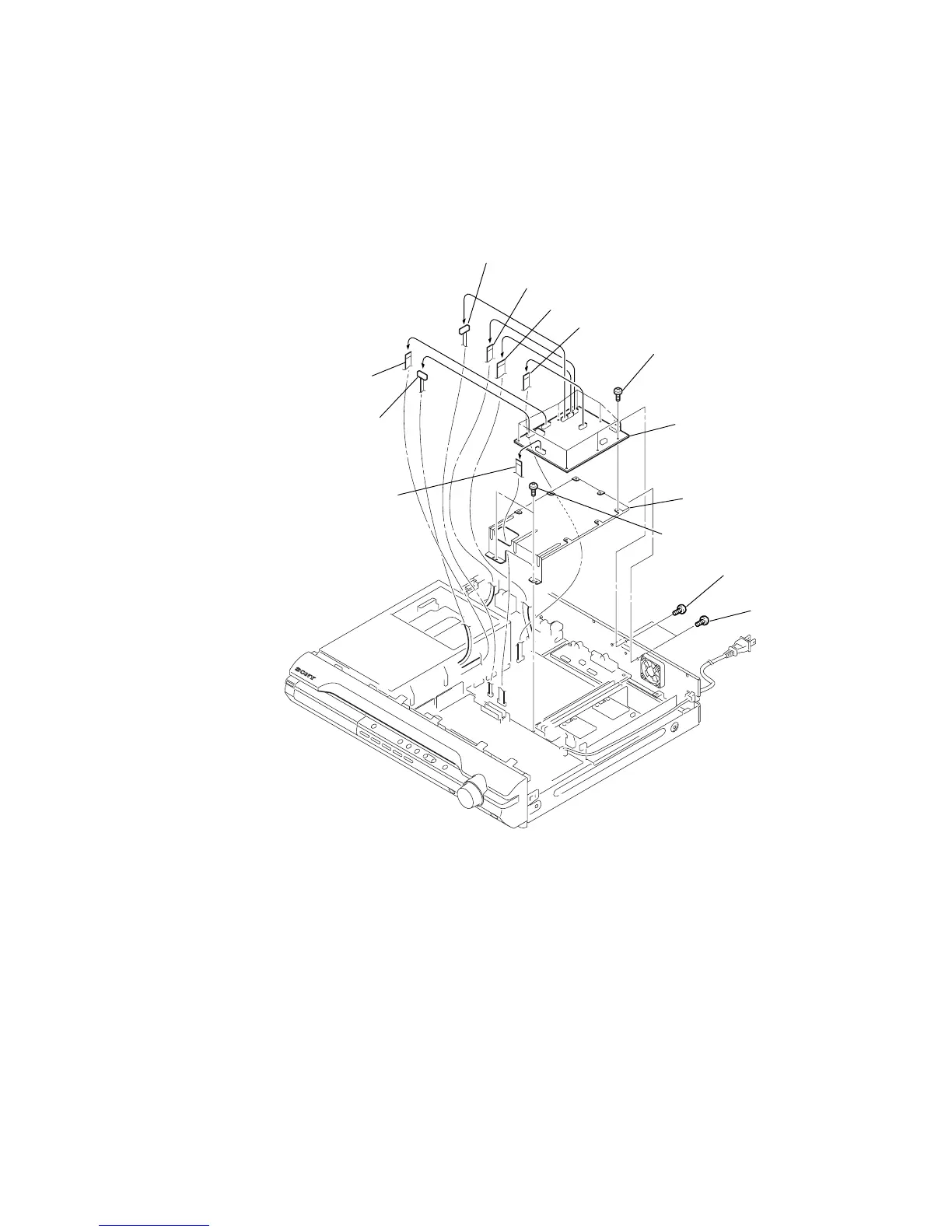

3-5. DMB12 BOARD
5
wire (flat type) 5core (CN4302)
3
wire (flat type) 24core (CN101)
1
wire (flat type) 11core (CN109)
4
connector (CN601)
2
connector (CN201)
7
wire (flat type) 9core (CN4501)
6
wire (flat type) 11core (CN4301)
8
seven
screws (+BV 3)
qs
two
screws (+BV 3)
qd
bracket HDMI
q;
DMB12
board
9
screw
(+B 3
×
6)
qa
two
screws
(+BVTP 3
×
8)
