27
HCD-DX375

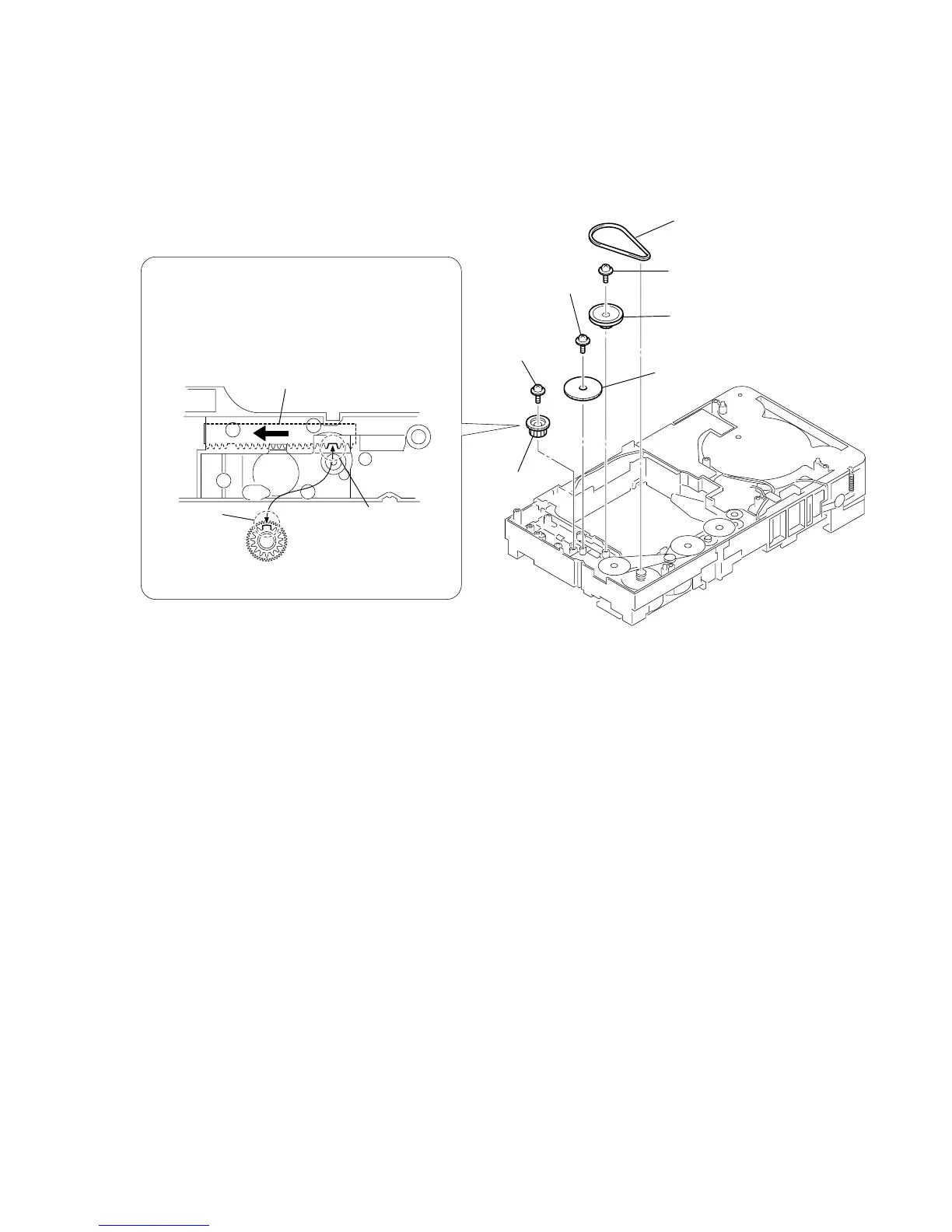

3-21. GEAR (BU1)
2
screw
(+PTPWH 2.6
×
8)
4
screw
(+PTPWH 2.6
×
8)
6
screw
(+PTPWH 2.6
×
8)
3
pulley (BU)
5
gear (BU2)
7
gear (BU1)
1
belt (sub tray)
gear (BU1)
cam (BU)
PRECAUTION DURING GEAR (BU1) INSTALLATION
Before re-assembling, slide the cam (BU) in the direction of
the arrow.
Assemble the gear (BU1) in such a manner that the groove
of the cam (BU) is aligned with the rib of the gear (BU1).
rib
groove
