Sony HCD-DX375 - Chassis Section

80
HCD-DX375
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-077-331-21 +BV3 (3-CR)
102 1-828-319-11 WIRE (FLAT TYPE) (11 CORE)
103 1-828-370-11 WIRE (FLAT TYPE) (21 CORE)
104 1-828-985-11 WIRE (FLAT TYPE) (15 CORE)
105 1-828-310-11 WIRE (FLAT TYPE) (9 CORE)
106 3-077-331-01 +BV3 (3-CR)
107 A-1148-794-A MAIN BOARD, COMPLETE
108 A-1146-005-A POWER BOARD, COMPLETE
0 109 1-830-190-11 CORD, POWER
110 3-703-244-00 BUSHING (2104), CORD
111 4-232-478-41 FOOT
112 4-059-585-01 TIE, CABLE
113 2-597-972-51 SHEET, RADIATION
114 2-597-972-11 SHEET, RADIATION
115 1-828-774-51 WIRE (FLAT TYPE) (24 CORE)
0 F901 1-532-749-11 FUSE, GLASS TUBE (8A/125V)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

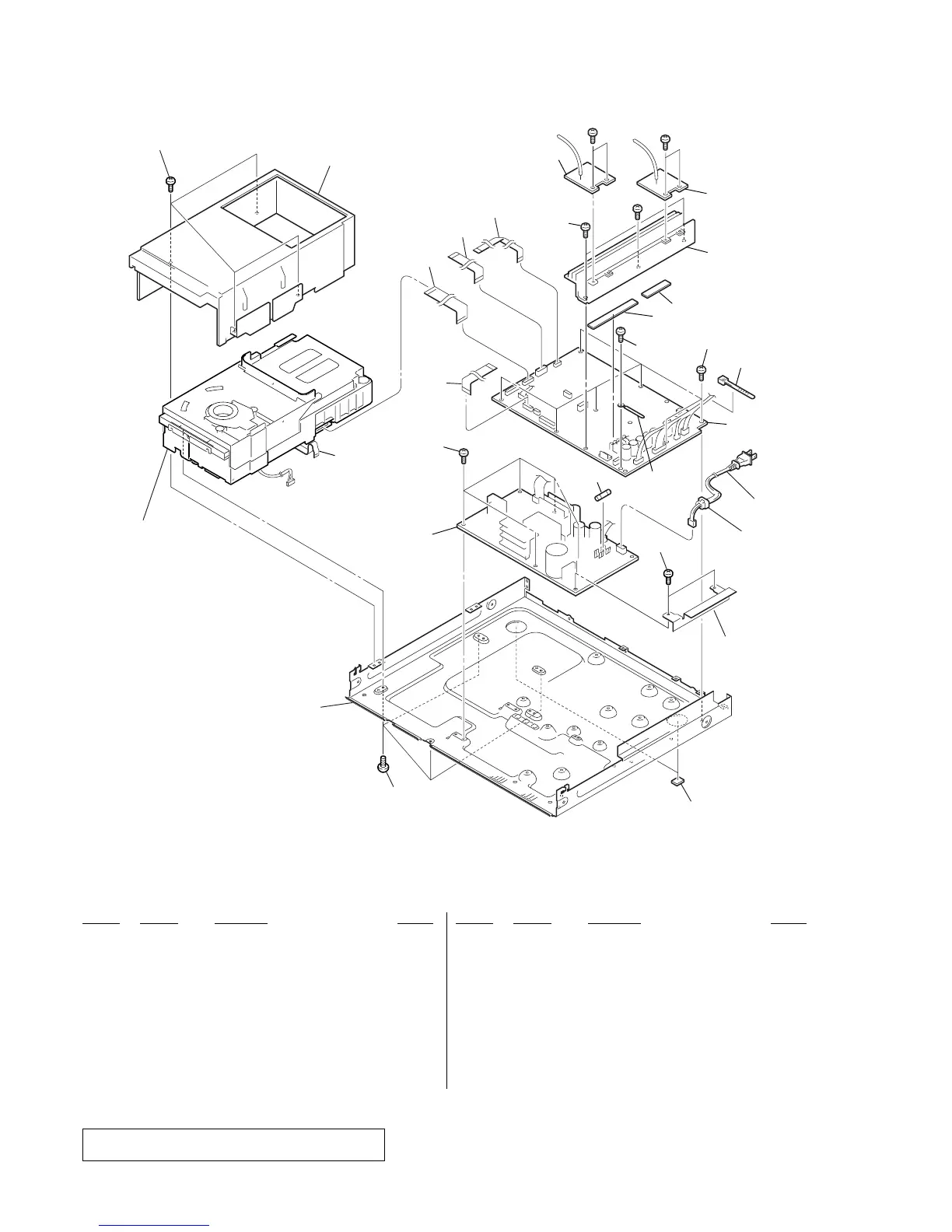

7-3. CHASSIS SECTION
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
F901
101
not supplied
101
105
DVD mechanism
deck section
108
111
101
101
112
107
106
101
not
supplied
not supplied
not
supplied
not
supplied
#2
#1
not
supplied
not
supplied
#1
#4
103
104
102
109
110
114
113
115
