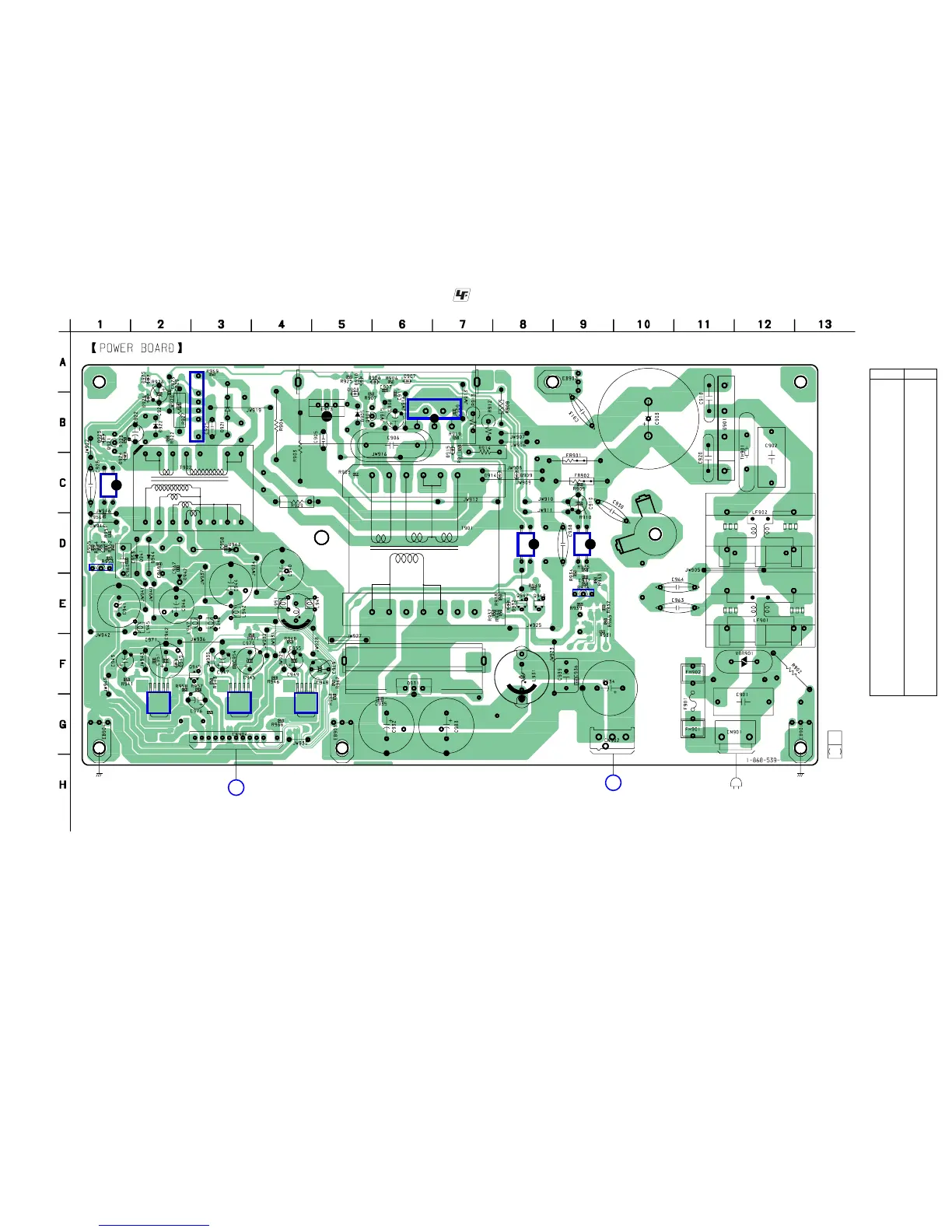

6-31. PRINTED WIRING BOARD – POWER BOARD –
• See page 33 for Circuit Boards Location.
:Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D901 B-11
D905 B-5
D906 A-6
D907 A-7
D908 B-5
D909 C-8
D910 A-5
D913 B-5
D914 C-8
D915 B-7
D921 B-3
D922 B-2
D923 B-1
D924 C-1
D925 A-1
D926 B-2
D931 F-6
D932 E-8
D941 D-2
D942 E-2
D943 D-3
D944 D-2
D945 F-2
IC901 B-6
IC921 B-3
IC931 E-9
IC941 G-2
IC942 G-3
IC943 G-4
IC951 D-1
PC901 D-9
PC902 C-1
PC903 D-8
Q901 B-5
Q921 B-1
Q943 E-8
Q945 F-3
Q947 E-8
IC941
IC942
IC943
IC901
IC951
IC931
PC903
PC901
IC921
PC902
