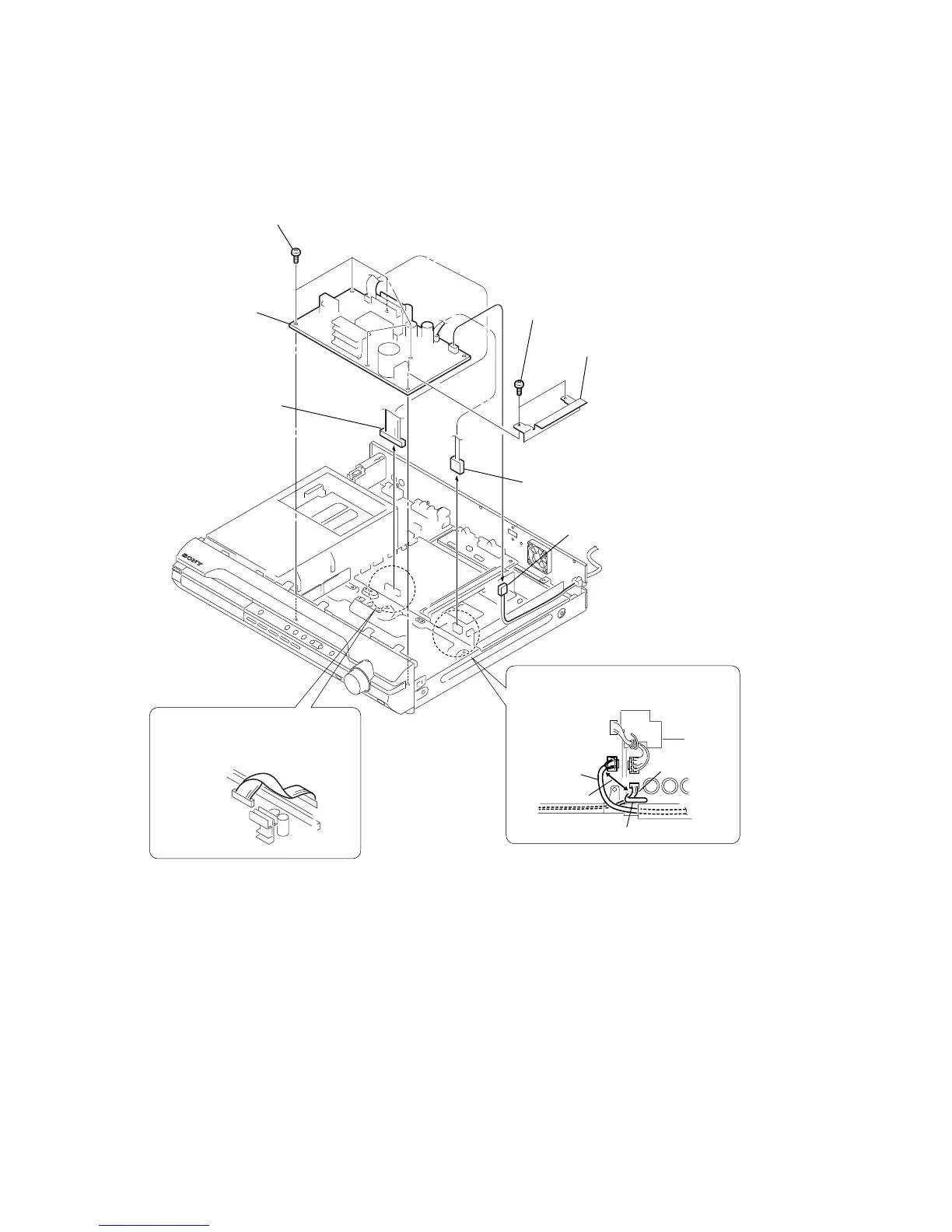

3-9. POWER BOARD
5
shield (H/L)
2
connector (CN3002)
3
connector (CN901)
1
connector (CN506)
4
two screws (+BV 3)
6
five screws (+PWH 3
×
8)
7
POWER board
After twist the harness once,
install the connector.
POWER board
MAIN board
When re-assembling, leave 30 mm between
harnesses A and B for safety.
harnesses A
harnesses B
clamp
30mm
