HCD-S550/S880

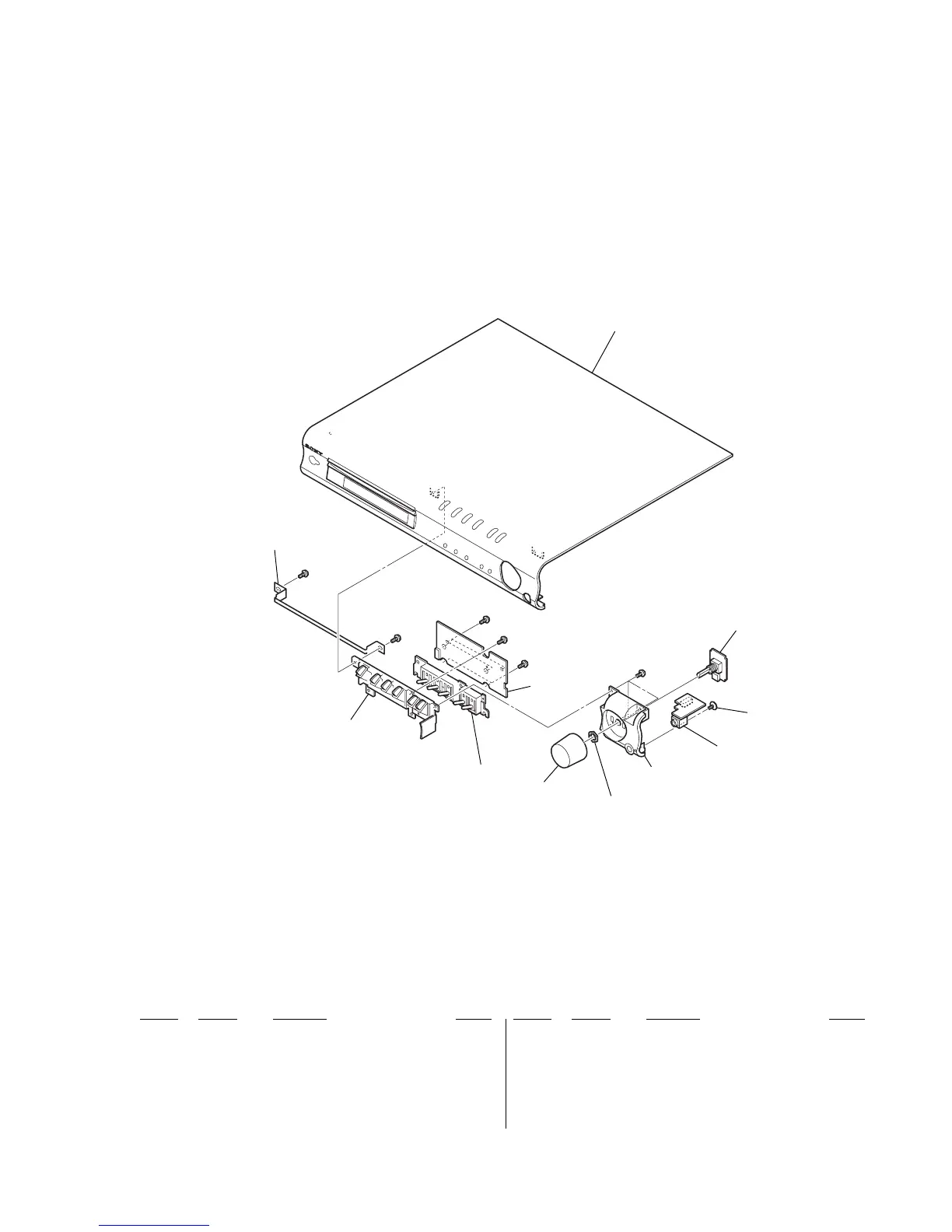

8-2. FRONT PANEL SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-240-404-02 CD BUTTON
52 4-240-405-01 BAND BUTTON
53 1-685-074-11 CONTROL BOARD
55 1-685-084-11 VOL BOARD
56 2-626-294-01 SCREW (+ PTPWH) (2.6X7) (EXCEPT KR)
56 3-229-336-01 SCREW, +BVWH TAPPING (KR)
57 1-685-083-11 HP BOARD
58 4-240-024-01 KNOB VOLUME (S550)
58 X-4952-564-1 KNOB (VOL) ASSY (S880)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#9 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
51
52
53
55
56
57
58
supplied with S800
front panel section-2
not supplied
#1
#1
#1
#1
#1
not supplied
#9
To Next Page
