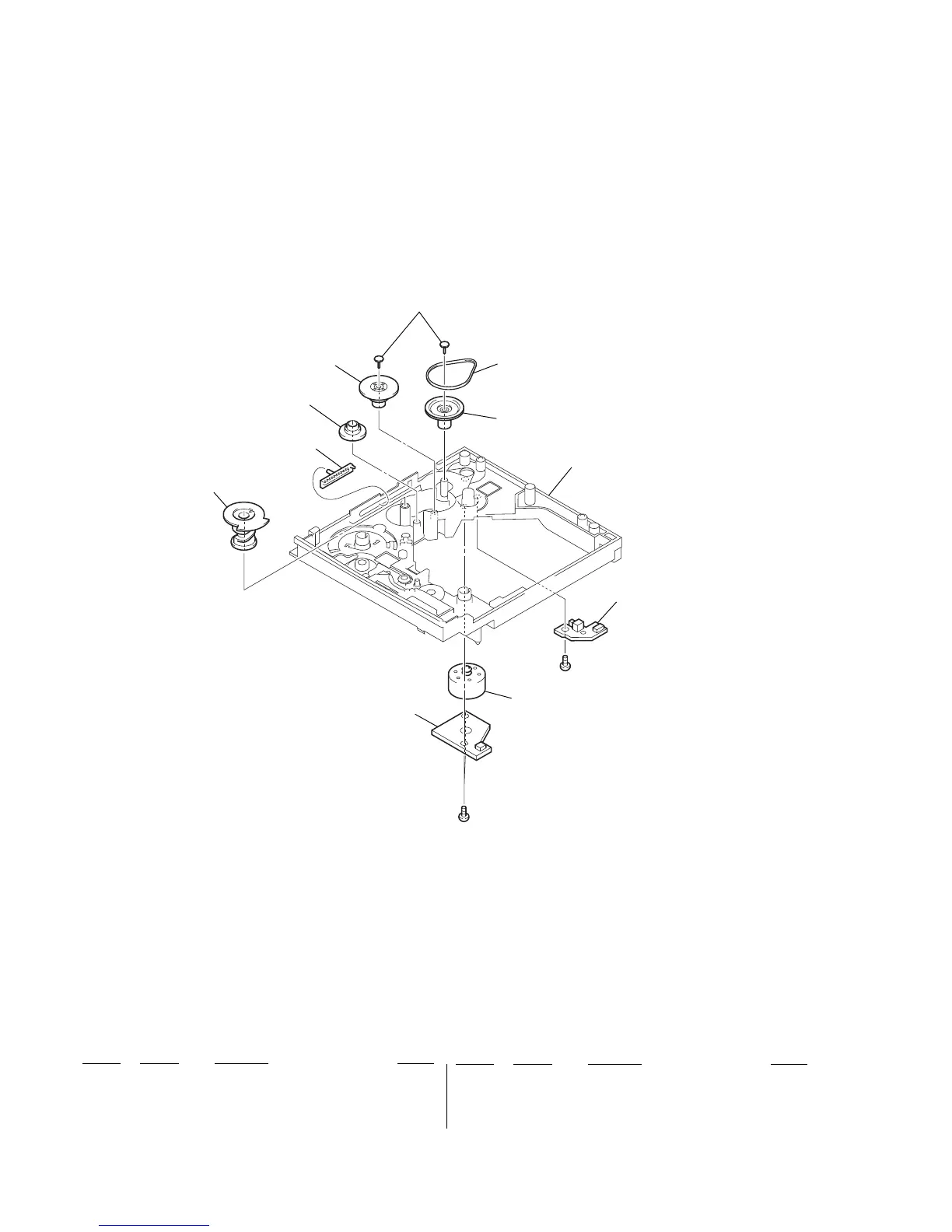

8-13. MECHANISM DECK SECTION-6
(CDM72A-DVBU12)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
601 4-240-213-01 CAM (CDM72)
602 X-4954-987-1 LEVER (ST) ASSY
603 4-240-208-01 GEAR (C2)
604 4-240-207-01 GEAR (C1)
605 4-241-021-01 BELT (CK)
606 4-240-210-01 PULLEY (CKG)
M751 A-4746-747-A MOTOR (CK) ASSY (EJECT)
#4 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
601
602
603
604
605
606
mechanism deck
section-7
not supplied
not supplied
(CK motor board)
M751
#4
#4
not supplied
(CK sensor board)
