HCD-S550/S880

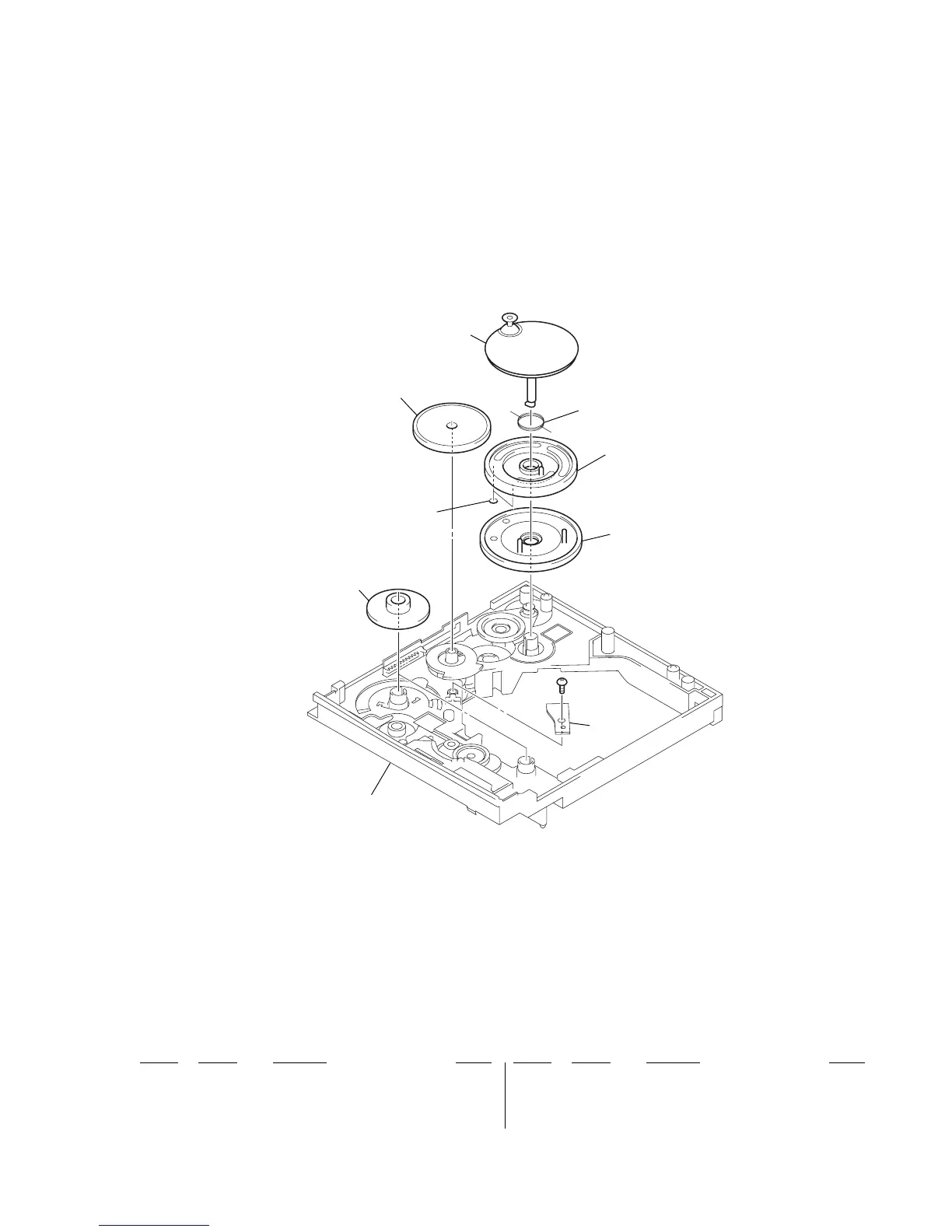

8-12. MECHANISM DECK SECTION-5
(CDM72A-DVBU12)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
551 4-240-203-01 GEAR (L4)
552 4-238-552-01 REFLECTOR (CDM71)
553 4-240-206-01 GEAR (S2)
554 X-4954-710-1 PULLEY (SPT) ASSY
555 4-237-430-01 SPRING (S), TORSION
556 4-240-236-01 GEAR (SPT)
557 4-240-209-01 GEAR (KT)
#4 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
551
552
553
554
555
556
557
mechanism deck
section-6
not
supplied
#4
