HCD-S550/S880

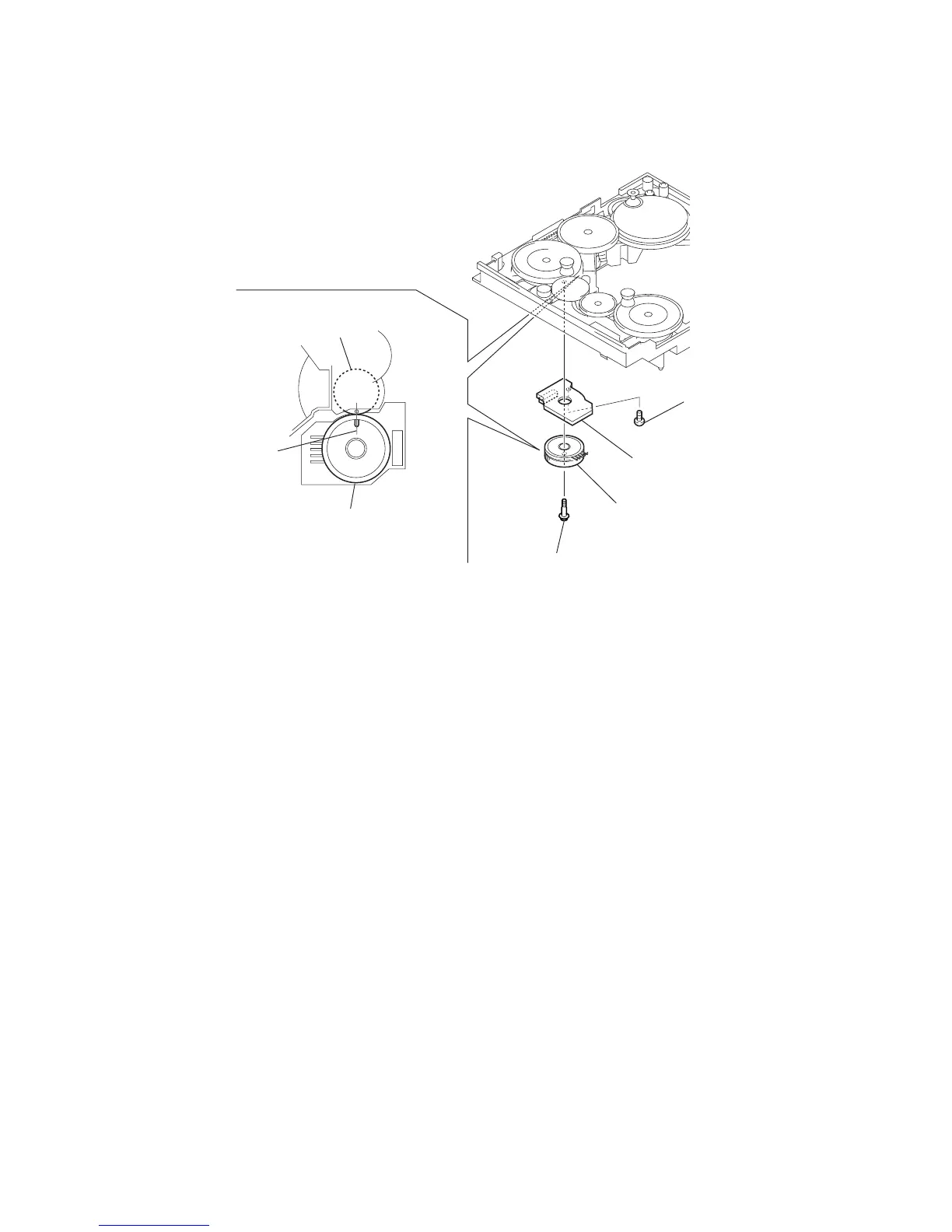

4-3. HOW TO INSTALL ROTARY ENCODER (MODE) (S741)
1 encoder board
3 rotary encoder (mode)
(S741)
rotary encoder (mode)
(S741)
-bottom view-
cam (CDM72)
linearly
2 screw
(BTP2.6 × 6)
4 screw
(PWH,2 × 6)
