HCD-S550/S880
14

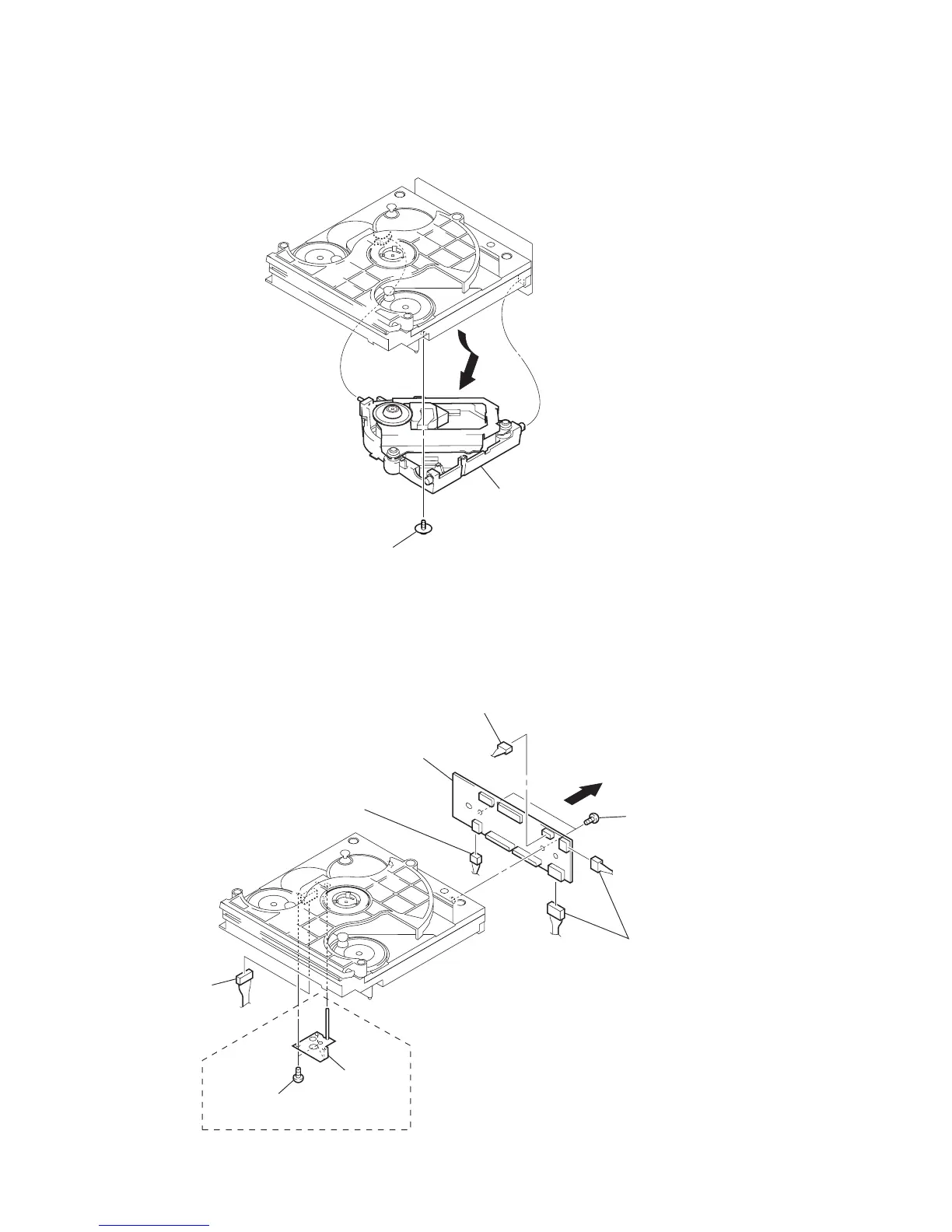

3-10. OPTICAL PICK-UP BLOCK (DVBU12)
3-11. RELAY BOARD
1
screw
(PTPWHM2.6)
2
optical pick-up bloc
k
(DVBU12)
3
connector
(CN741)
1
three screws
(BTP2.6
×
6
)
2
retainer
6
two connector
(CN703, 707)
4
two screws
(BTP2.6
×
6)
5
7
connector
(CN702)
8
connecter
(CN706)
9
relay board
S880
