Sony HCD-S550 Service Manual

HCD-S550/S880
11

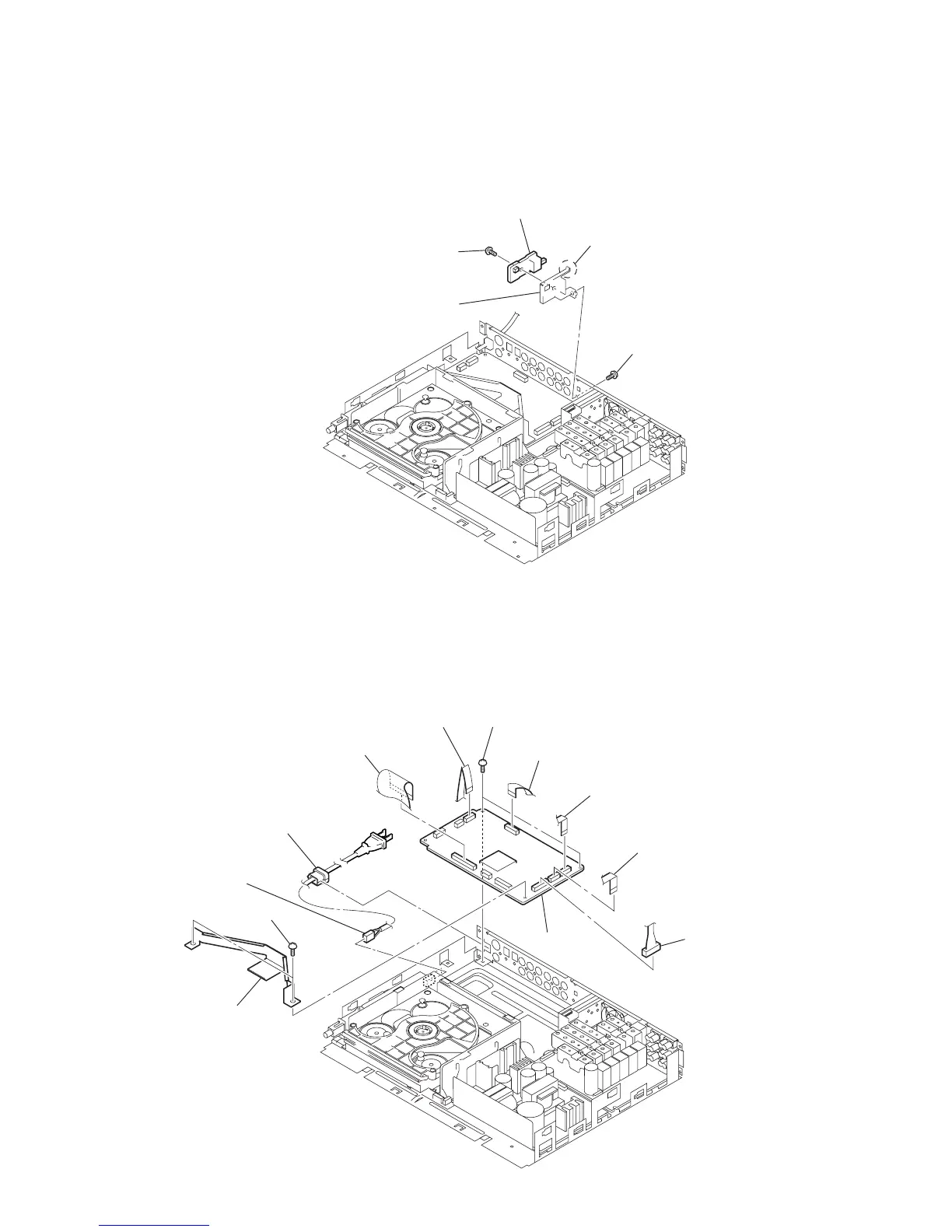

3-4. SEL BOARD
3-5. DVD BOARD
3 screw
(DIA. 2.6
× 8)
5 SEL board
2 claw
4 retainer
1 screw
(DIA. 2.6
× 8)
0 retainer
9 two screws
(BVTP3 × 8)
8 power cord block
9 connector
(CN900)
5 flexible board
(CN401)
1 flexible flat cable
(CN005)
2 flexible flat cable
(CN006)
3 flexible flat cable
(CN001)
4 flexible flat cable
(CN004)
qa two screws (BVTP3 × 8)
6 connecto
r
(CN008)
qs DVD board
