Sony HCD-S550 - Printed Wiring Board - FL Board

HCD-S550/S880
6262

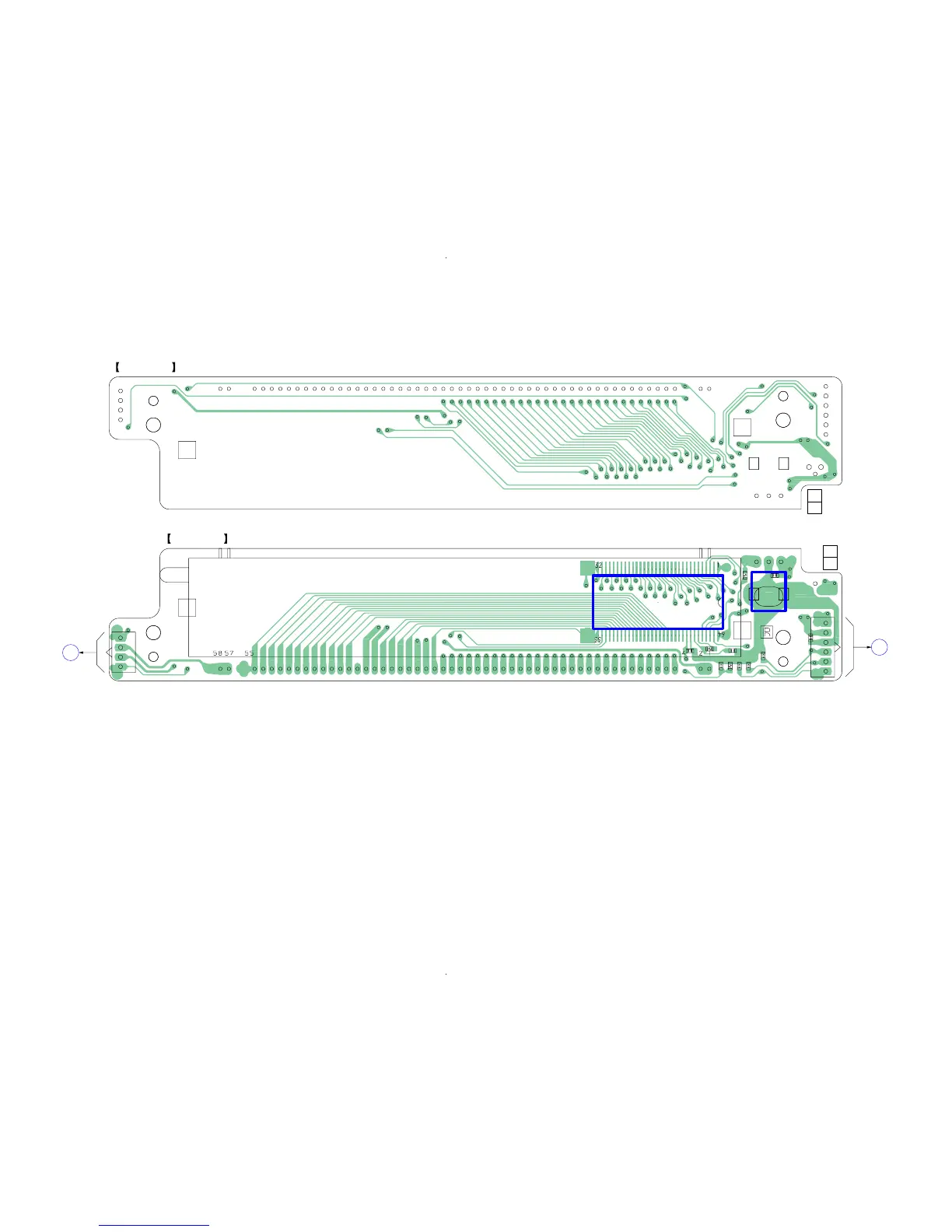

7-35. PRINTED WIRING BOARD – FL Board – • See page 33 for Circuit Boards Location.
FL BOARD
(COMPONENT SIDE)
1-685-082-
11
(11)
CNP801
CNP806
IC801
C814
C816
R840
IC802
C819
C808
C818
R815
R839
C815
C817
C813
FL BOARD
(CONDUCTOR SIDE)
1-685-082-
11
(11)
K
DDCON
BOARD
CN805
4
1
1
6
J
DDCON
BOARD
CNP803
13
FL801
FLUORESCENT INDICATOR TUBE
(Page 58)
(Page 58)
