HCD-S550/C880
• This set can be assembled in the order shown below.

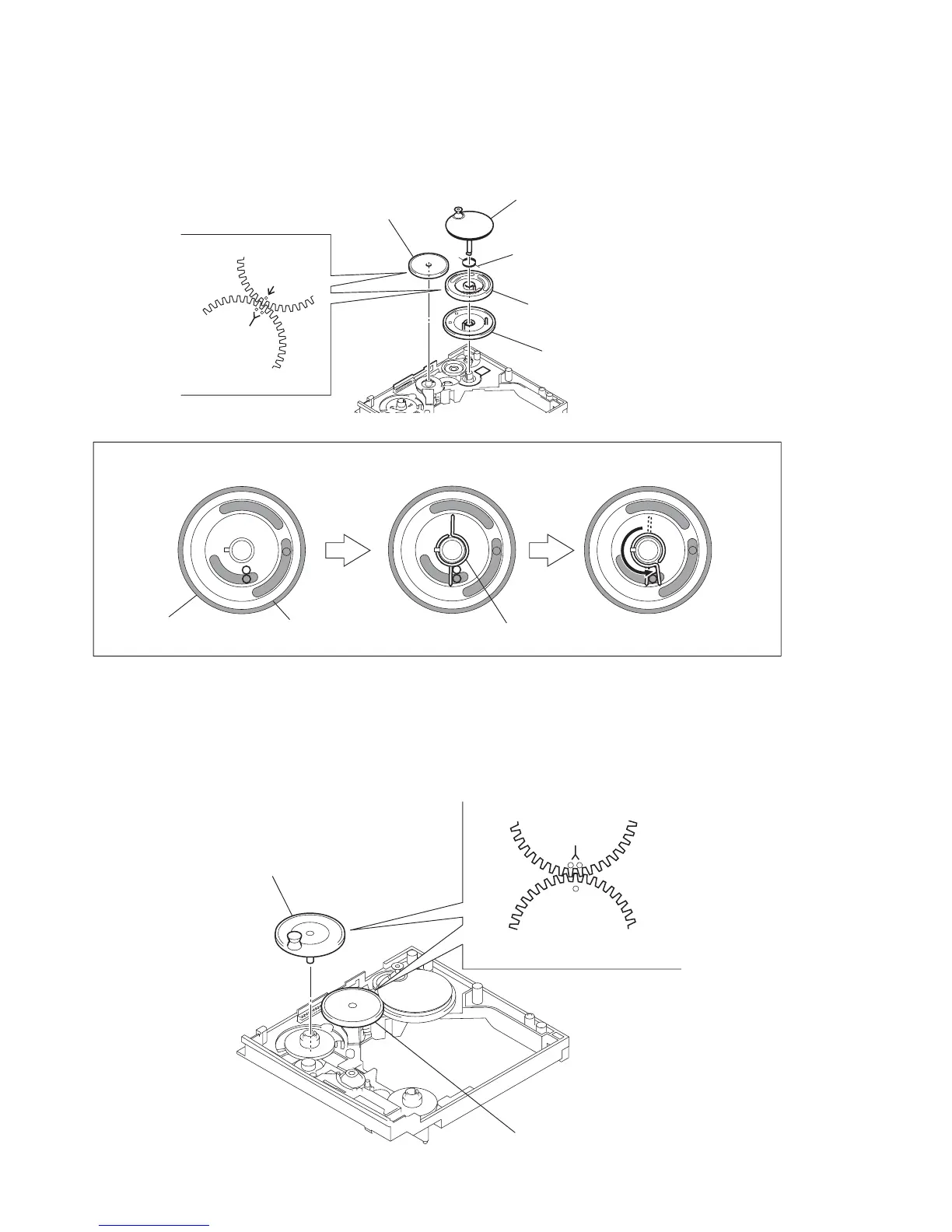

4-1. HOW TO INSTALL PULLEY (SPT) ASSY
SECTION 4
ASSEMBLY
4-2. HOW TO INSTALL PULLEY (RTR) ASSY
1 gear (KT)
2 gear (SPT)
gear (SPT)
3 torsion spring (S) (Note)
5 pulley (SPT) assy
4 gear (S2)
gear (S2)
gear (SPT)
torsion spring (S)
gear (KT)
Note: installation of torsion spring (S)
gear (S2)
gear (S2)
pulley
(RTR) assy
pulley (RTR) assy
