HCD-S550/S880

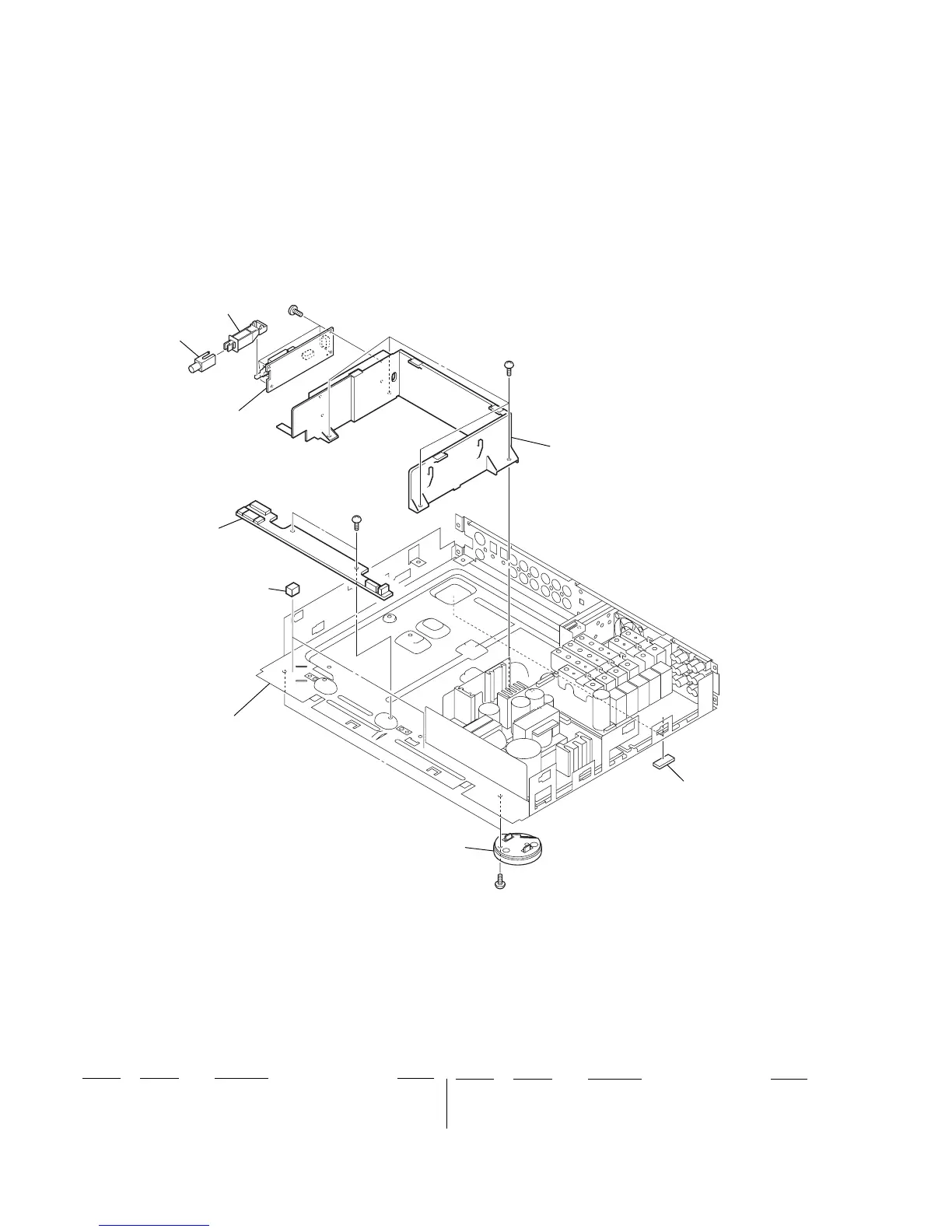

8-5. CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 X-4954-745-1 FOOT SUB ASSY
202 A-4676-937-A DDCON BOARD, COMPLETE (EXCEPT KR)
202 A-4730-153-A DDCON BOARD, COMPLETE (KR)
204 4-240-397-01 POWER BUTTON
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-645-79 SCREW +P 3X6 TYPE2 NON-SLIT
201
202
204
not supplied
(power SW board)
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#2
chassis section-3
To Next Page
