HCD-S550/S880

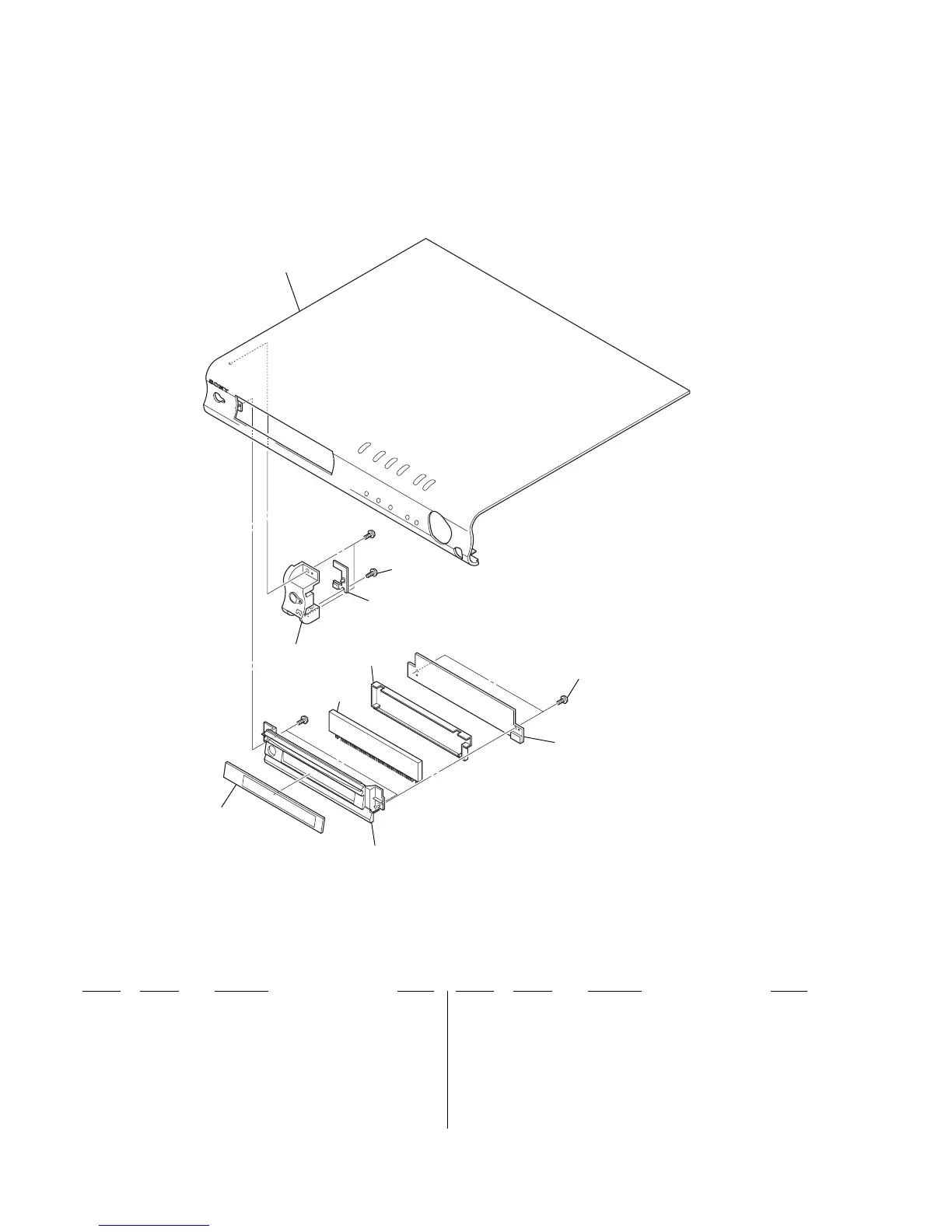

8-3. FRONT PANEL SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 X-4954-740-5 WINDOW SUB ASSY (KR)
101 X-4955-250-1 WINDOW SUB ASSY (EXCEPT KR)
102 X-4954-741-3 CD LID SUB ASSY
103 4-240-402-02 FL HOLDER
105 1-685-082-11 FL BOARD
106 X-4954-738-2 POWER SUB ASSY
107 4-240-393-02 PANEL (AL), FRONT
(S550: KR, MX, EA, SP, AUS, E, HK, TW, CH)
107 4-240-393-12 PANEL (AL), FRONT (S550: AEP, UK, CIS)
107 4-241-535-02 PANEL (AL), FRONT
(S880: KR, TW, MX, SP, EA, HK, E, AUS, CH)
107 4-241-535-12 PANEL (AL), FRONT (S880: AEP, UK, CIS)
108 4-931-757-31 SCREW (DIA.2.6X8) (IT3B), TAPPING
FL801 1-518-824-11 INDICATOR TUBE, FLOURESCENT
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
101
102
106
107
103
105
108
108
not
supplied
(power LED board)
FL801
#1
#1
Ver 1.6
To Next Page
