2929
HCD-S500/S800

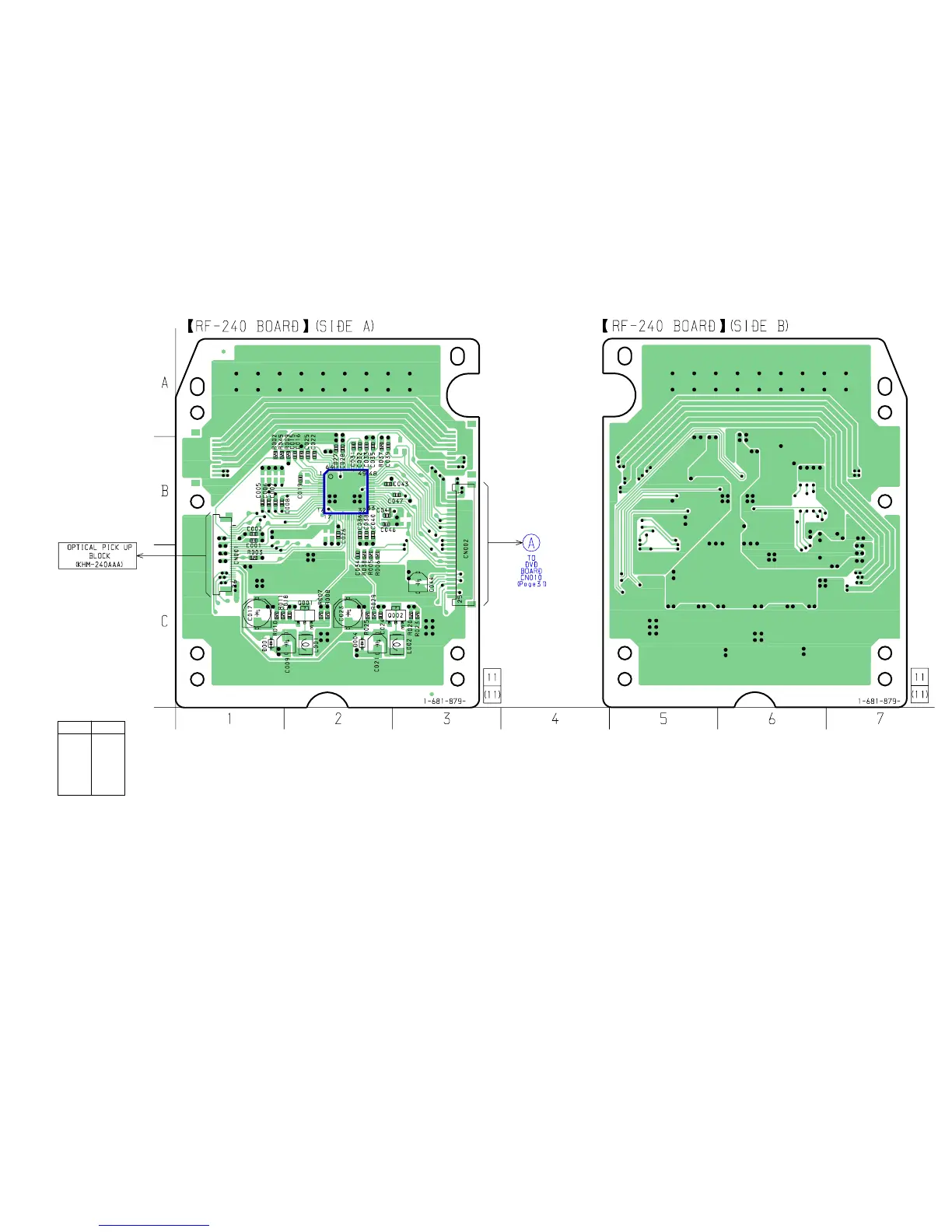

6-2. PRINTED WIRING BOARD – RF SECTION –
IC001
Ref. No. Location
D001 C-1
D004 C-2
IC001 C-2
Q001 C-2
Q002 C-3
• Semiconductor
Location
