Sony HCD-S800 - Printed Wiring Board - DVD Section (1;2)

3131
HCD-S500/S800

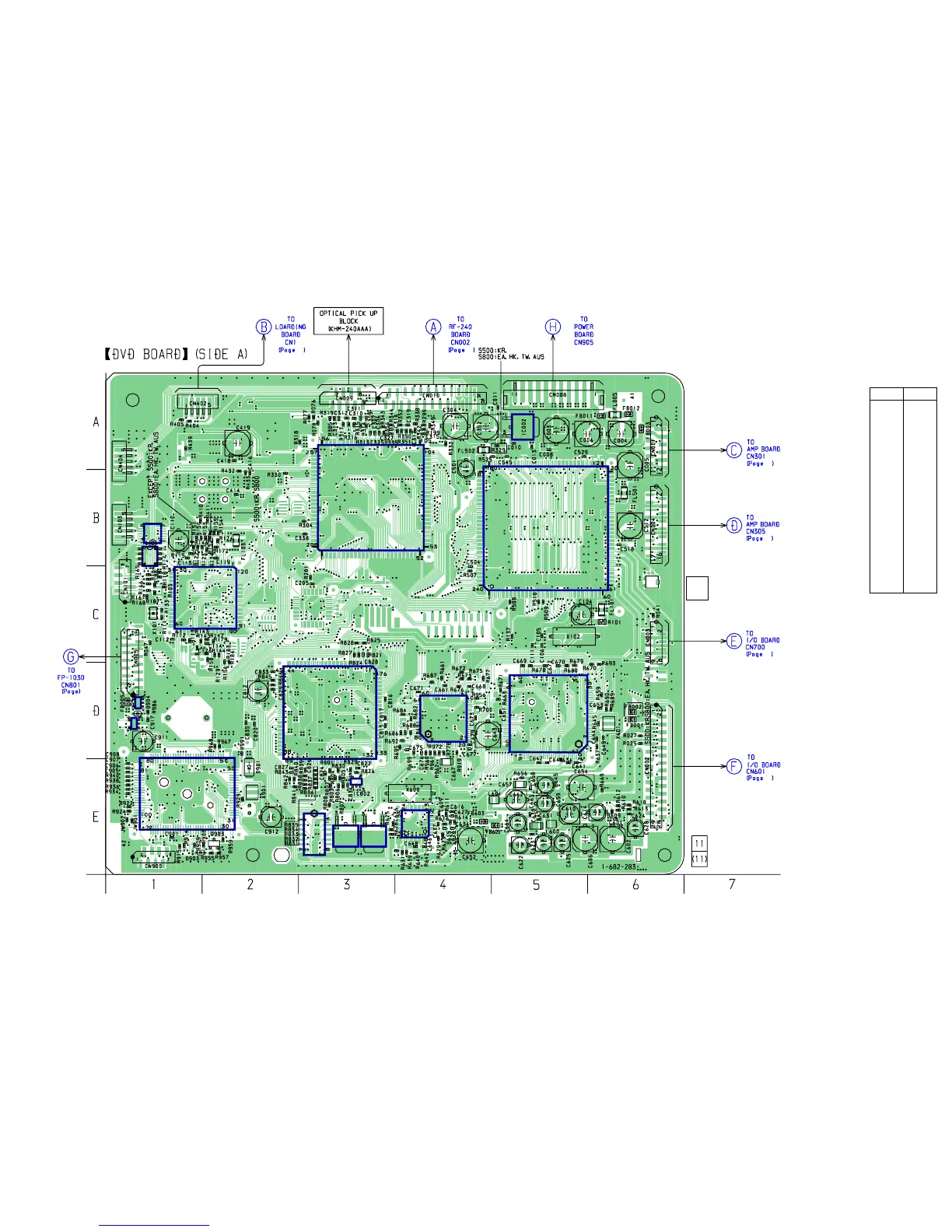

6-4. PRINTED WIRING BOARD – DVD SECTION (1/2) –
IC101
IC106
IC103
IC904
IC903
IC901
IC801
IC802
IC005 IC004
IC900
IC606
IC612
IC607
IC503
IC302
57
29
(Page 53)
42
42
45
45
RV501
VIDEO
LEVEL
ADJ
EXCEPT S500:KR
S800:EA,HK,TW,AUS
(Page48)
Ref. No. Location
D901 E-2
D903 E-1
D904 D-1
IC002 A-5
IC004 E-3
IC005 E-3
IC101 B-1
IC103 C-2
IC106 B-1
IC302 B-3
IC503 B-5
IC606 E-4
IC607 D-5
IC612 D-4
IC801 D-3
IC802 E-3
IC900 E-3
IC901 E-2
IC903 D-1
IC904 D-1
Q903 E-2
• Semiconductor
Location
