Sony HCD-S800 - Printed Wiring Board - AMP Section (1;2)

4141
HCD-S500/S800

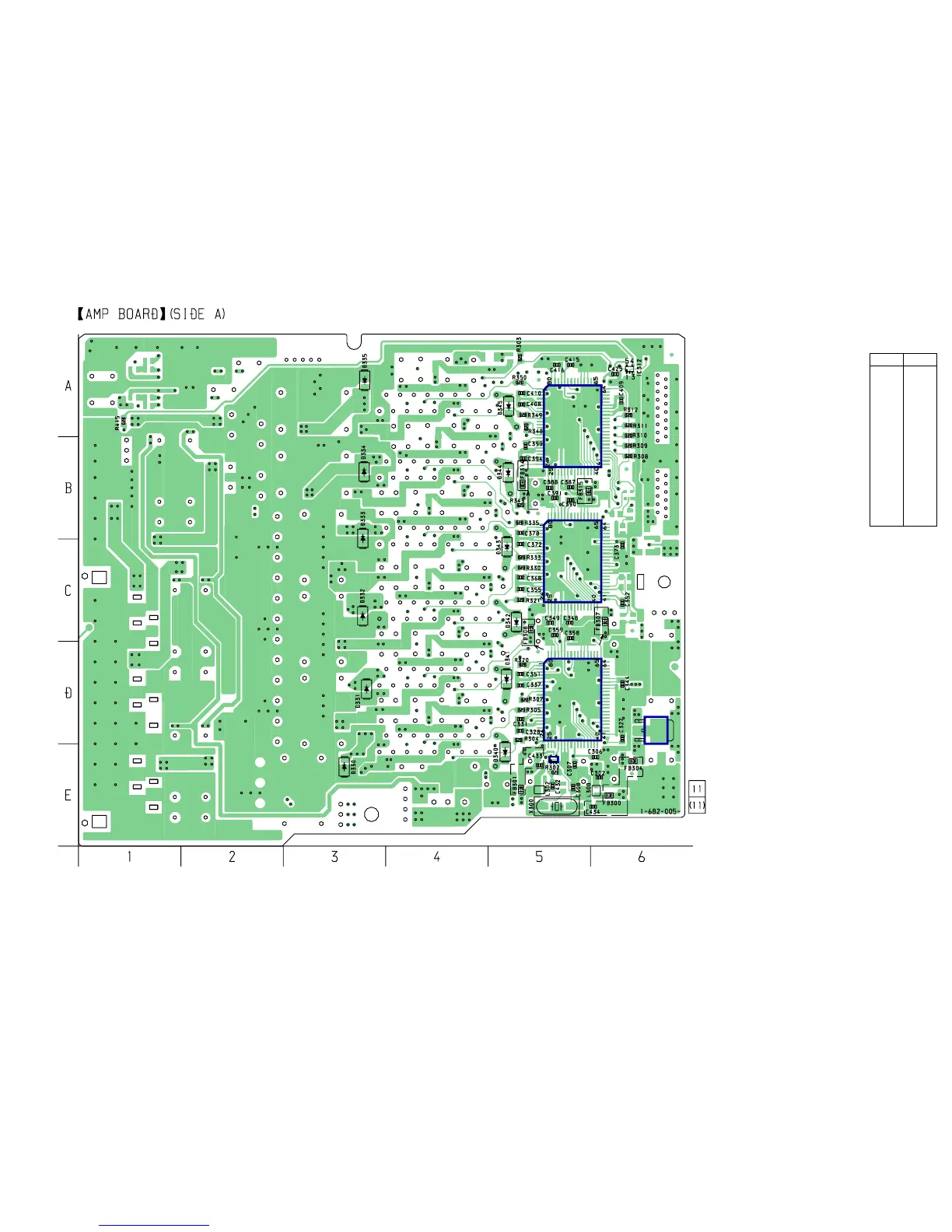

6-14. PRINTED WIRING BOARD – AMP SECTION (1/2) –
IC300
IC305
IC303
IC310
IC308
1
3
13
54
S500 : US,CND,AEP,
CIS,UK,MX,KR,S800
S500 : US,CND,AEP,
CIS,UK,MX,KR,S800
S500 : US,CND,AEP,
CIS,UK,MX,KR,S800
S500 : US,CND,AEP,
CIS,UK,MX,KR,S800
Ref. No. Location
D330 E-3
D331 D-3
D332 C-3
D333 B-3
D334 B-3
D335 A-3
D340 E-5
D341 D-5
D342 C-5
D343 C-5
D344 B-5
D345 A-5
IC300 E-5
IC303 E-6
IC305 D-5
IC308 C-5
IC310 A-5
IC312 A-6
• Semiconductor
Location
