HCD-S500/S800
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

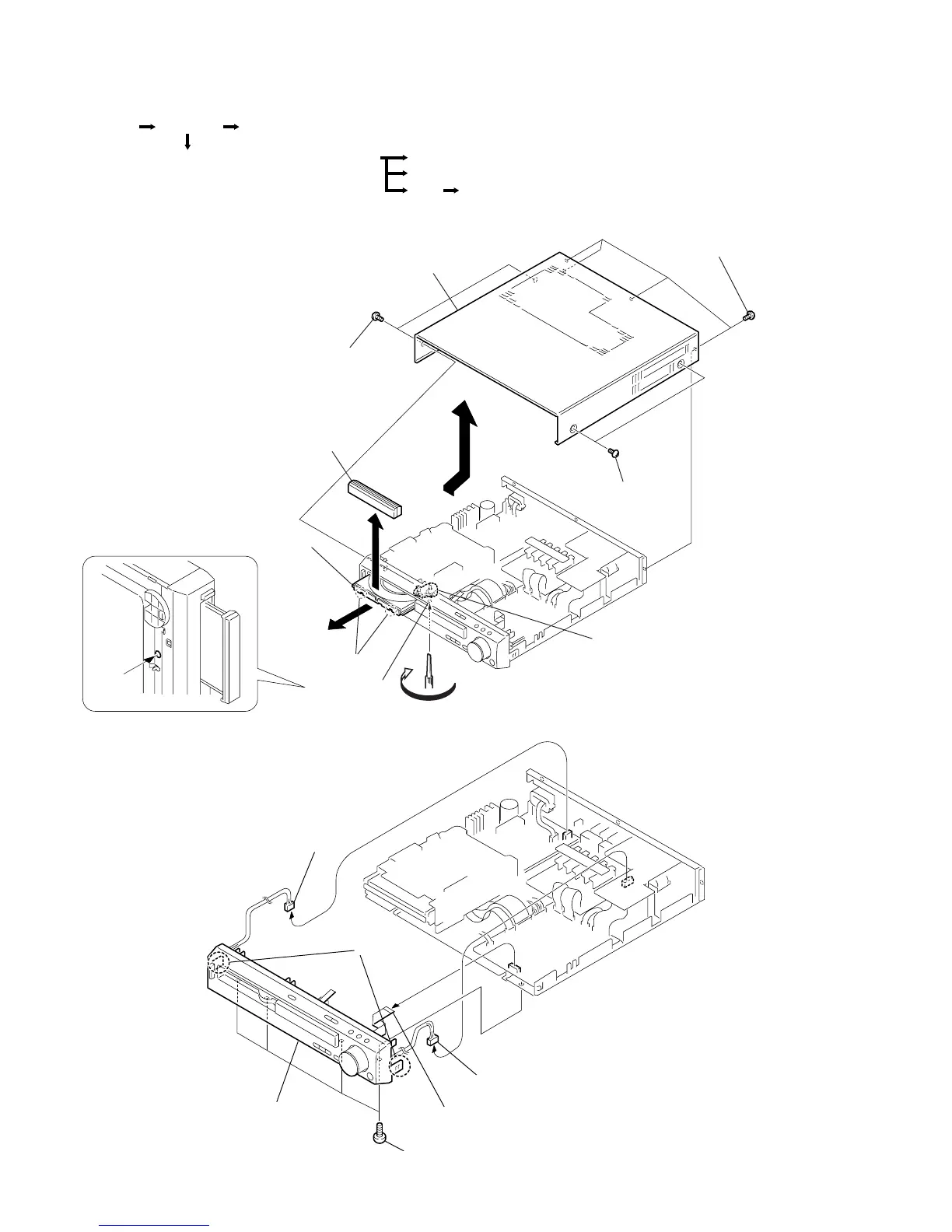

1. CASE (TOP), DVD LID, LID WINDOW SUB ASSEMBLY
2. FRONT PANEL SECTION
2 Two case screws
1 Two case
screws
Cam
Hole of chassis
5 Turn the cam in the direction of the arrow.
7 Two claws
8 DVD lid,
Lid window sub assembly
6 Pull-out the disc tray.
4 Case (Top)
3 Four screws
(+BVTP 3 × 8
)
1 Connector (CN309)
3 Connector (CN902)
2 Flexible flat cable (15 core)
(CN005)
5 Two claws
4 Four screws
(+BVTP 3
× 8)
6 Front panel section
RF-240 board
Tray Optical pick-up (KHM-240AAA)
Front panel sectionCase (Top)Set
Loading board, Loading motor assembly (M901
)
DVD mechanism deck (CDM550-DVBU8)
