HCD-S500/S800

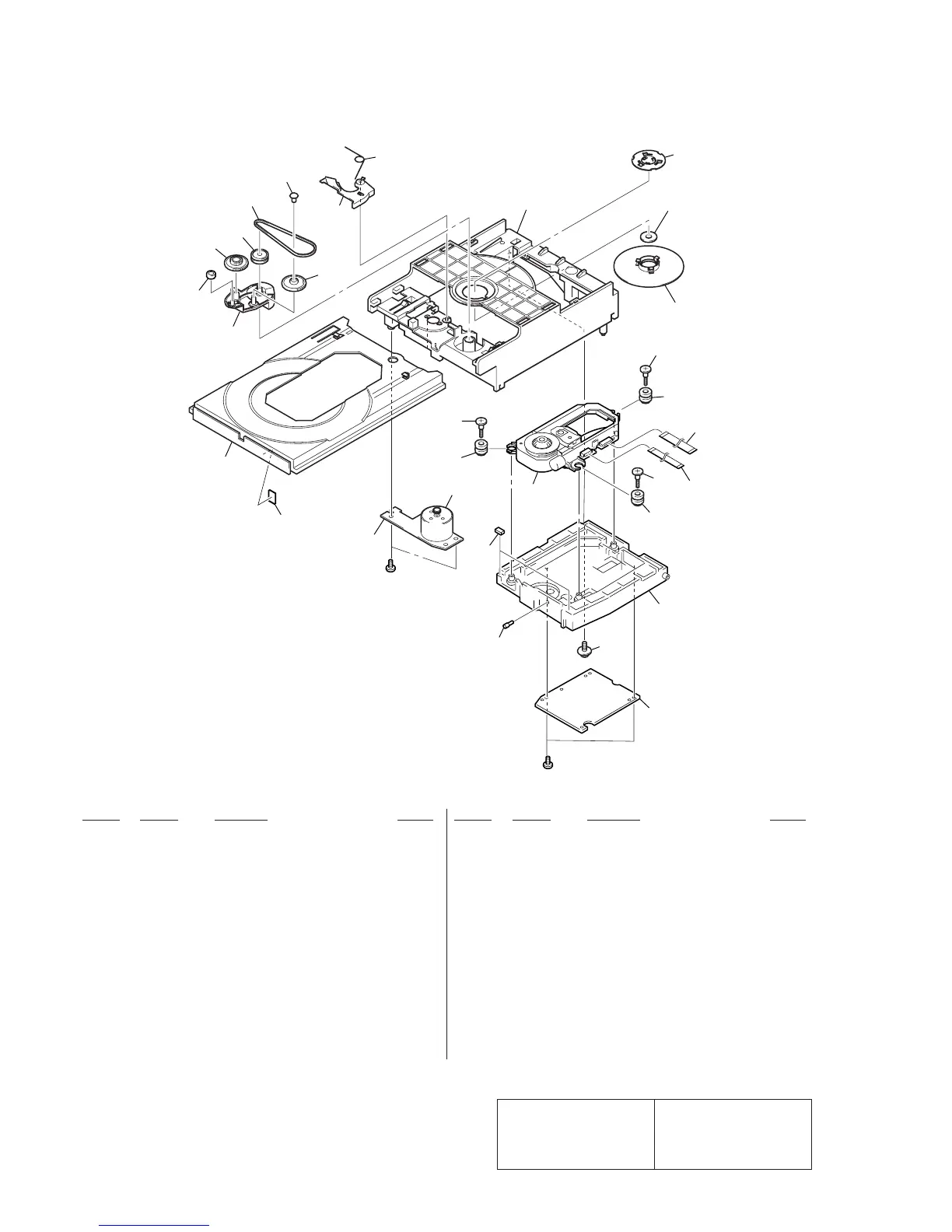

7-4. MECHANISM DECK SECTION (CDM55D-DVBU8)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
401 1-676-599-11 LOADING BOARD
402 4-925-315-31 DAMPER
403 4-224-894-01 TRAY
404 4-220-233-01 CAM (CDM55)
405 4-221-815-01 ROLLER
406 4-220-237-01 GEAR (A)
407 4-220-234-01 PULLEY (LDG)
408 4-221-816-01 BELT (CDM55)
409 4-220-238-01 GEAR (B)
410 4-227-598-01 SPACER (55)
411 4-220-229-01 LEVER (SW)
412 4-220-239-01 SPRING, TORSION
413 4-225-884-01 CHASSIS (55D)
414 4-235-116-01 PULLEY (A-240)
415 4-234-766-01 PULLEY (B-240)
416 4-236-450-01 SCREW (L), STEP
417 4-981-923-01 SCREW (M), STEP
418 3-053-847-11 INSULATOR
0 419 8-820-144-06 DEVICE,OPTICAL KHM-240AAA
420 1-823-072-11 CABLE, FLEXIBLE FLAT 26P
421 1-823-073-11 CABLE, FLEXIBLE FLAT (9 CORE)
422 4-234-374-01 HOLDER (KHM-240)
423 4-221-817-02 SHAFT (BU)
424 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
425 A-4726-850-A RF-240 BOARD, COMPLETE
M901 A-2004-893-A MOTOR (LD) ASSY
#3
#3
M901
401
402
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
418
420
421
422
423
424
425
418
418
419
417
417
not supplied
