HCD-S500/S800
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-229-336-01 SCREW, +BVWH TAPPING
52 1-681-996-11 HP-1030 BOARD
53 X-4953-854-1 FL WINDOW SUB ASSY
54 4-234-907-01 PANEL (AL), FRONT (S500)
54 4-236-125-01 PANEL (AL), FRONT (S800)
55 X-4953-856-1 PANEL ASSY, FRONT
56 4-234-924-01 FOOT
57 1-681-994-11 PW-1030 BOARD
58 X-4953-855-1 POWER BUTTON SUB ASSY
59 4-931-757-31 SCREW(DIA.2.6X8)(IT3B),TAPPING
60 1-681-990-11 DDCON-1030 BOARD
61 4-234-904-01 BUTTON (EJECT)
62 1-681-993-11 SW (B)-1030 BOARD
63 1-681-995-11 RR-1030 BOARD
64 A-4726-419-A FP-1030 BOARD, COMPLETE
65 1-823-076-11 CABLE, FLEXIBLE FLAT (15 CORE)
66 4-234-905-01 BUTTON (DVD)
67 1-681-992-11 SW (A)-1030 BOARD
68 1-681-991-11 FU-1030 BOARD
69 1-786-210-11 SWITCH, POWER
70 4-237-279-01 EARTH PLATE (FL)

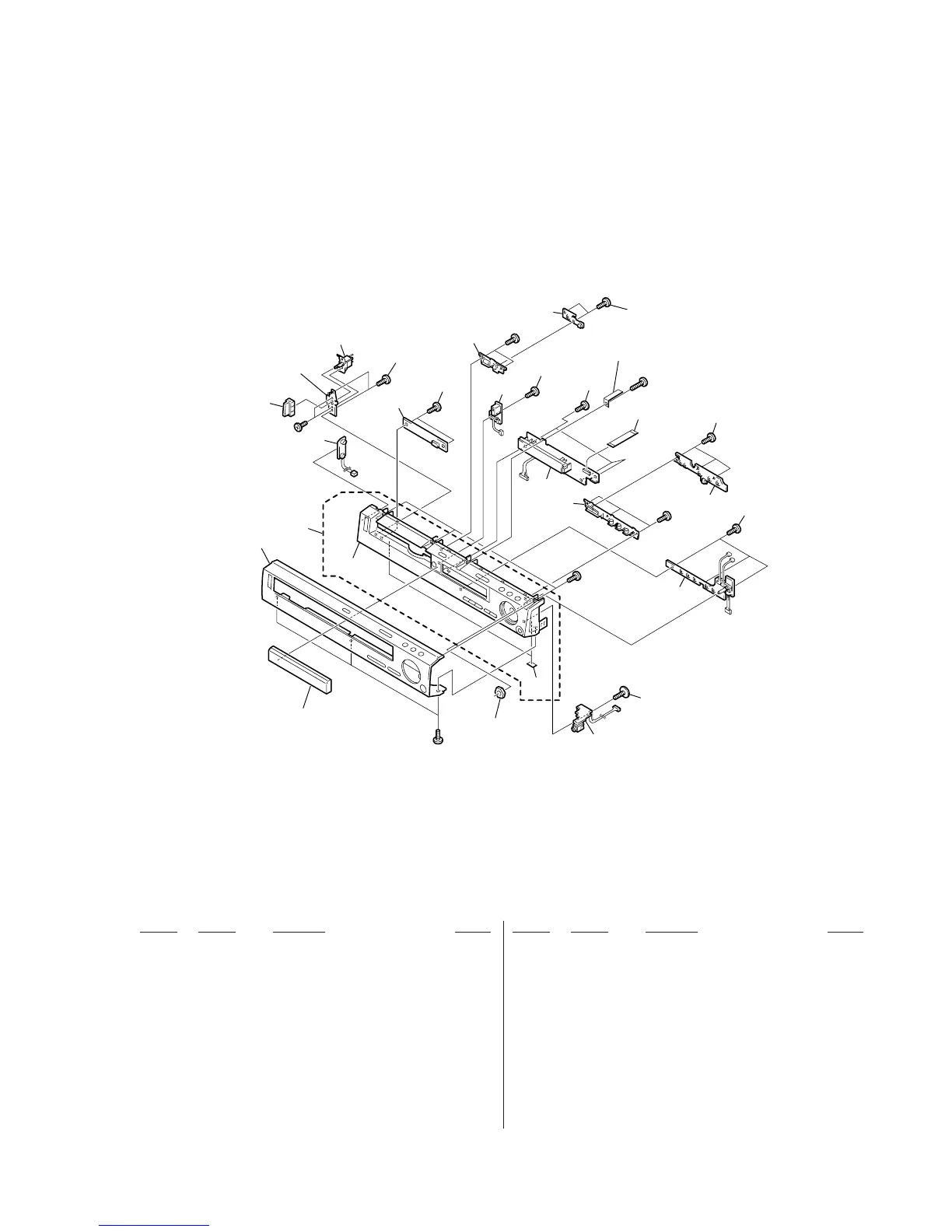

7-2. FRONT PANEL SECTION
51
52
53
54
55
57
58
59
69
59
60
61
62
63
64
66
67
68
65
59
59
59
59
56
Supplied with
S800
not supplied
not
supplied
#1
#1
#1
#1
#2
#1
59
70
To Next Page
