HCD-S500/S800

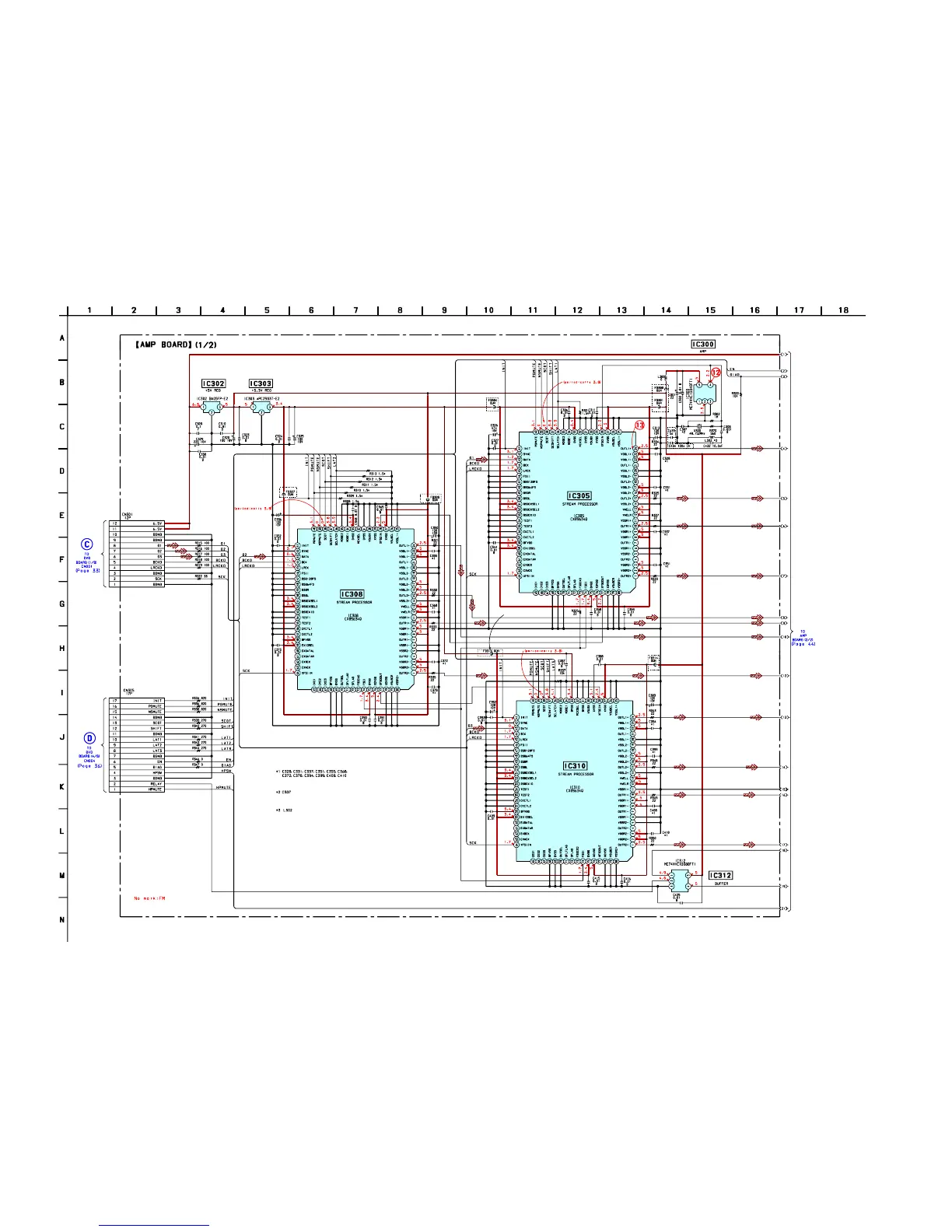

6-16. SCHEMATIC DIAGRAM – AMP SECTION (1/2) –
S500:US,CND,AEP,CIS,
UK,MX,KR/S800
S500:US,CND,AEP,
CIS,UK,MX,KR/S800
S500:US,CND,AEP,
CIS,UK,MX,KR/S800
S500:US,CND,AEP,
CIS,UK,MX,KR/S800
S500:US,CND,AEP,CIS,UK,MX,KR/S800
S500:US,CND,AEP,
CIS,UK,MX,KR/S800
S500:US,CND,AEP,
CIS,UK,MX,KR/S800
0.1 : S500/US,CND,AEP,CIS,UK,MX,KR,S800
0.01 : EXCEPT S500/US,CND,AEP,CIS,UK,MX,KR,S800
1uH : S500/US,CND,AEP,CIS,UK,MX,KR,S800
1.2uH : EXCEPT S500/US,CND,AEP,CIS,UK,MX,KR,S800
10p : EXCEPT S500/US,CND,AEP,CIS,UK,MX,KR,S800
47p : S500/US,CND,AEP,CIS,UK,MX,KR,S800
Ver 1.1 2002.01
