Sony HCD-S800 - Exploded Views of Components

NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
AR : Argentina model
AUS : Australian model
CND : Canadian model
EA : Saudi Arabia model
E12 : 220-240V AC area in E model
E32 : 110-240V AC area in E model
HK : Hong Kong model
KR : Korean model
MX : Mexican model
MY : Malaysia model
SP : Singapole model
TW : Taiwan model
SECTION 7
EXPLODED VIEWS
70
HCD-S500/S800
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
1 X-4952-564-1 KNOB (VOL) ASSY
2 X-4953-853-1 LID WINDOW SUB ASSY
3 4-234-909-01 DVD LID
4 4-221-580-01 SCREW, CASE
5 4-234-913-01 CASE
6 4-217-350-11 STOPPER, CORD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0 7 1-690-608-11 CORD, POWER (E12,E32,AUS)
0 7 1-696-169-21 CORD, POWER (AEP,CIS,UK,EA,MY,SP,HK,TW)
0 7 1-769-079-21 CORD, POWER (KR)
0 7 1-775-789-91 CORD, POWER (MX)
0 7 1-783-532-11 CORD, POWER (US,CND)
0 7 1-783-941-21 CORD, POWER (AR)

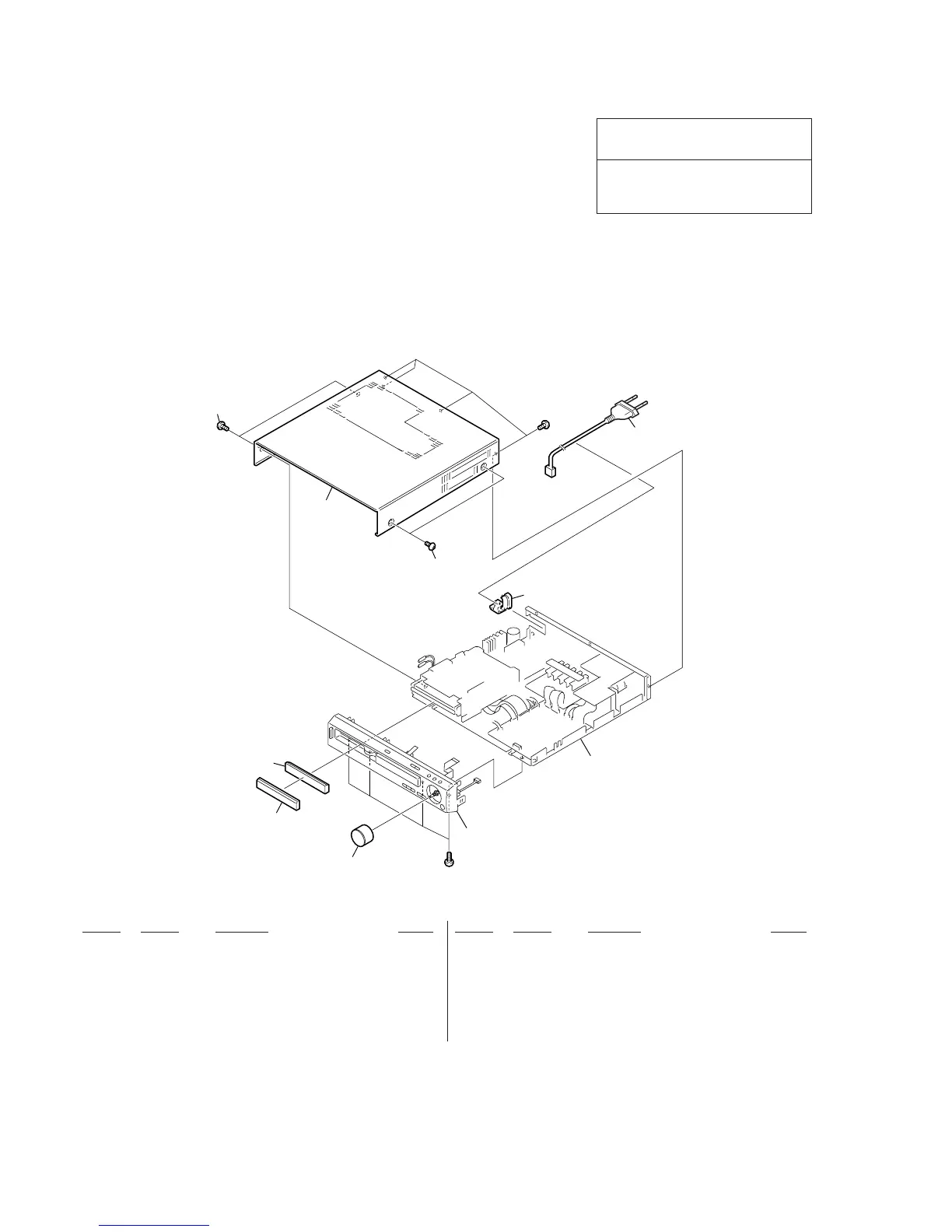

7-1. MAIN SECTION
1
2
3
4
5
6
7
4
#1
#1
Front panel section
Chassis section
