HCD-S500/S800

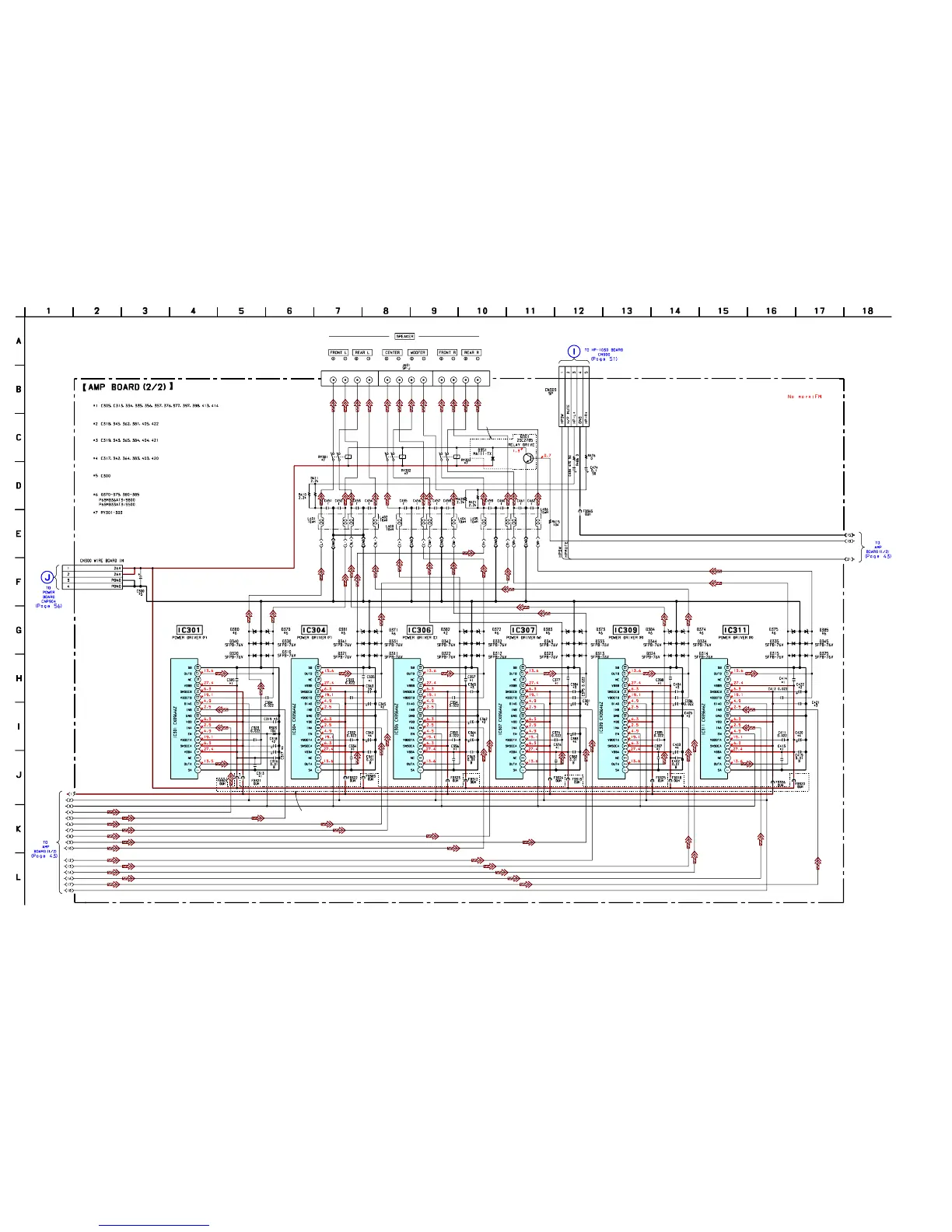

6-17. SCHEMATIC DIAGRAM – AMP SECTION (2/2) –

0.1 : S500/US,CND,AEP,CIS,UK,MX,KR,S800

0.01 : EXCEPT S500/US,CND,AEP,CIS,UK,MX,KR,S800

100/10V : S500/US,CND,AEP,CIS,UK,MX,KR,S800

0.1/50V : EXCEPT S500/US,CND,AEP,CIS,UK,MX,KR,S800

0.1/16V : S500/US,CND,AEP,CIS,UK,MX,KR,S800

0.01/25V : EXCEPT S500/US,CND,AEP,CIS,UK,MX,KR,S800

100/35V : S500/US,CND,AEP,CIS,UK,MX,KR,S800

100/50V : EXCEPT S500/US,CND,AEP,CIS,UK,MX,KR,S800

2200/35V : S500/US,CND,AEP,CIS,UK,MX,KR,S800

2200/50V : EXCEPT S500/US,CND,AEP,CIS,UK,MX,KR,S800

RELAY (24V) : S500/US,CND,AEP,CIS,UK,MX,KR,S800

RELAY (12V) : EXCEPT S500/US,CND,AEP,CIS,UK,MX,KR,S800

S500 : US,CND,AEP,CIS,UK,MX,KR,S800

• See page 25 for Wavefoms.
