4848
HCD-S500/S800

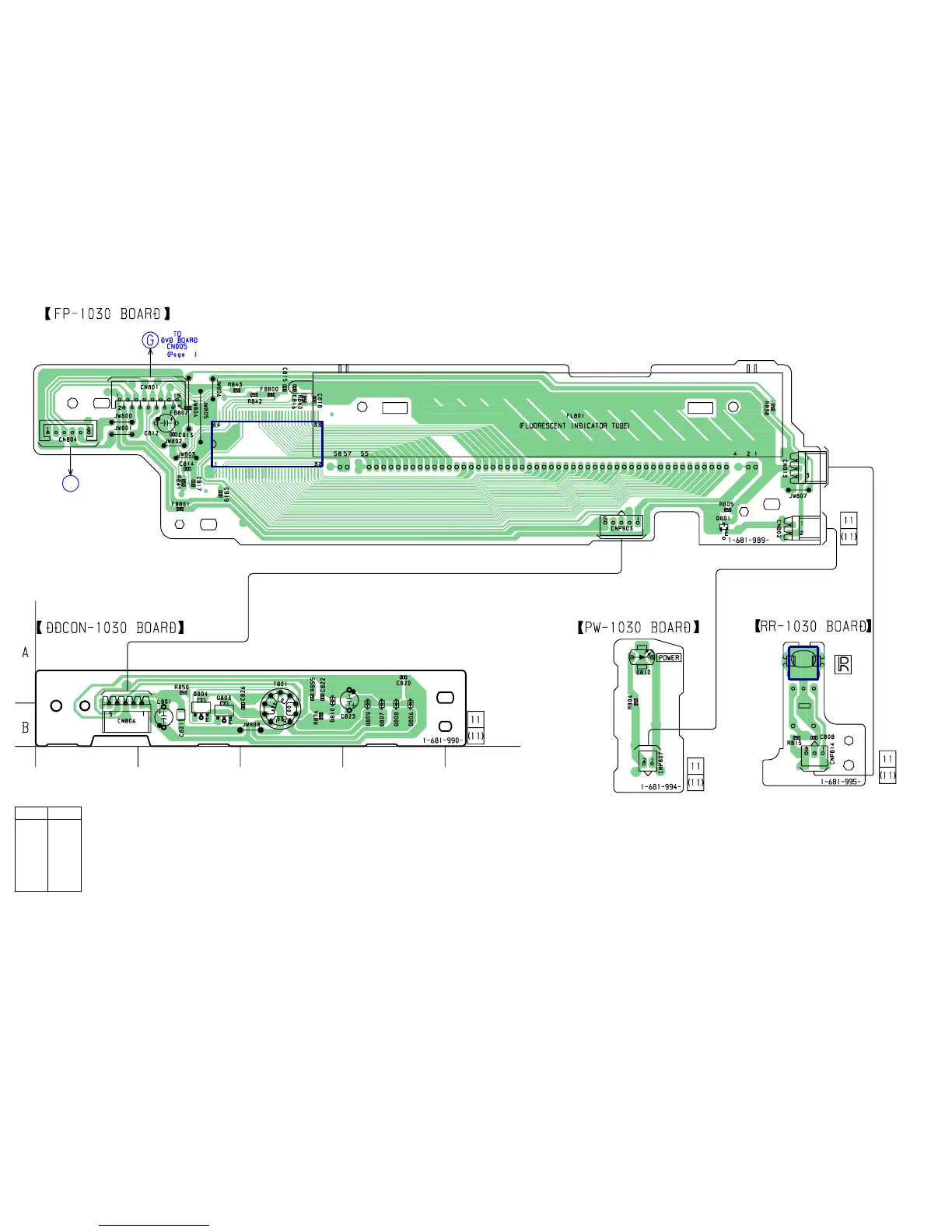

6-21. PRINTED WIRING BOARD – PANEL SECTION –
IC802
IC101
K
TO
FU-1030
BOARD
CNP808
(Page 50)
31
12345
Ref. No. Location
D806 B-4
D807 B-4
D808 B-4
D809 B-4
D810 B-3
Q803 B-2
Q804 B-2
• Semiconductor
Location
