Sony HCD-S800 - Printed Wiring Board - I;O Section

4545
HCD-S500/S800

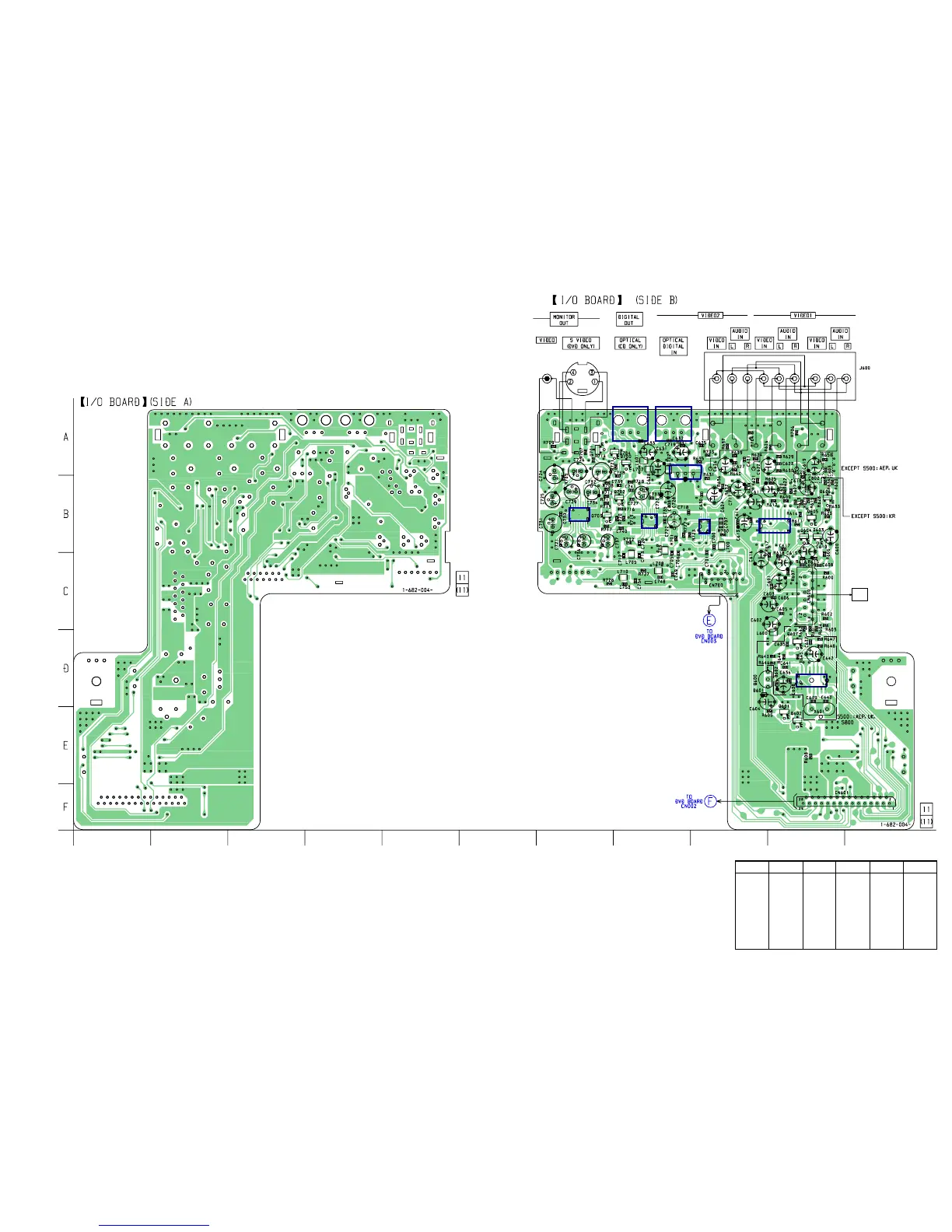

6-18. PRINTED WIRING BOARD – I/O SECTION –
IC603 IC602
IC701
IC702
IC601
IC700
IC600
IC604
1234567891011
1313
C612
(Page 31)
TUNER
UNIT
(Page 31)
CIS,
Ref. No. Location
• Semiconductor Location
Ref. No. Location Ref. No. Location
D601 D-9
D602 D-10
IC600 B-10
IC601 A-8
IC602 A-8
IC603 A-8
IC604 D-10
IC700 B-9
IC701 B-7
IC702 B-8
Q600 D-9
Q601 E-10
Q602 E-10
Q603 B-10
Q604 B-10
Q605 B-10
Q606 B-10
Q607 D-10
Q700 A-8
Q701 A-7
Q702 B-8
Q703 B-7
Q704 A-8
