Connecting External Monitors
114
Connecting External Devices
To display recording/playback pictures on an
external monitor, select the output signal and use
an appropriate cable for the monitor to be
connected.
Regardless of whether the signal is HD or SD, the
same status information and menus can be
displayed on the external monitor as those on the
LCD monitor/EVF screen.
According to the signal fed to the monitor, set
“YPbPr/SDI Out Display” or “Video Out
Display” of the VIDEO SET menu (page 107) to
“On.”
When outputting SD signals, select in advance the
output mode (Squeeze, Letterbox, or Edge Crop)
with “Down Converter” of the VIDEO SET
menu.
Note
SD signals down-converted for output have the
following restrictions:
Images of 50P/50i/25P are output as PAL signals,
those of 59.94P/59.94i/29.97P are output as
NTSC signals, and those of 23.98P are output as
2-3 pulled-down NTSC signals.

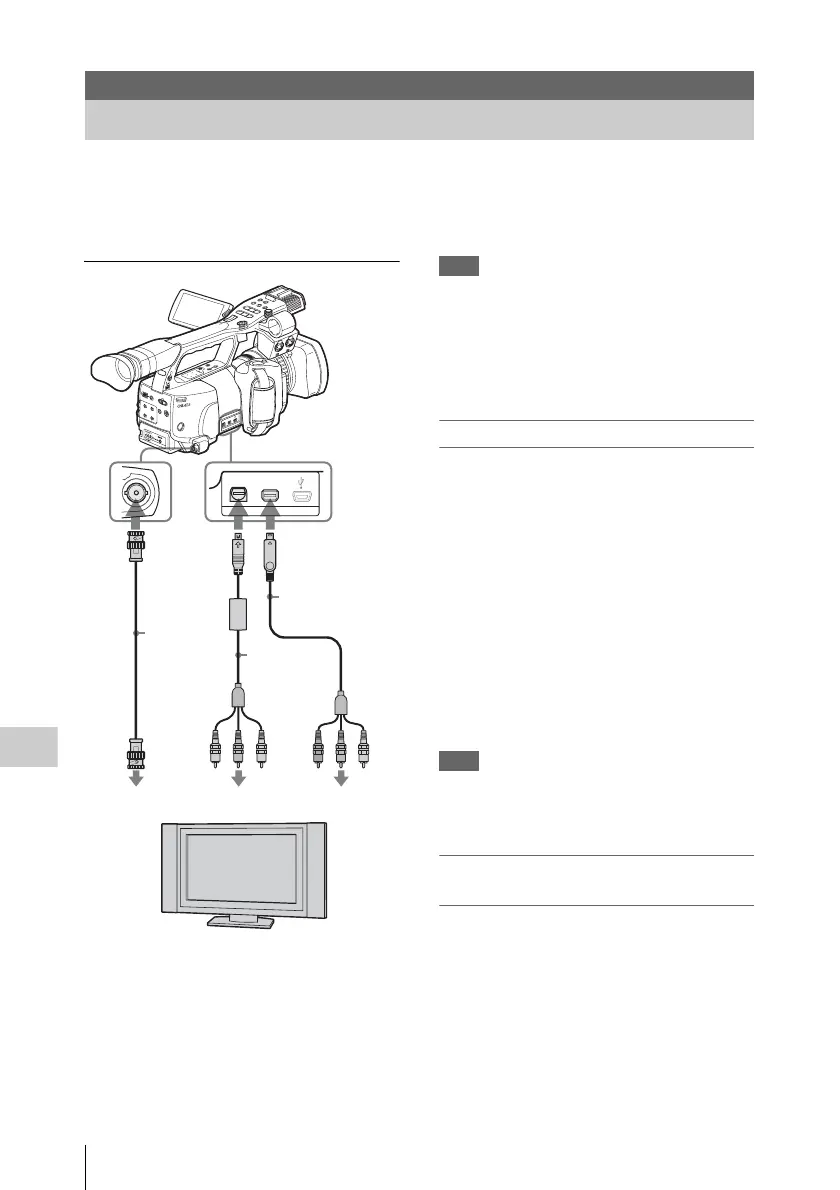

SDI OUT connector (BNC)
The connector is set at the factory to output an HD
SDI signal.
Using “YPbPr/SDI Out Select” (page 107) of the
VIDEO SET menu, you can change the setting so
that it outputs an SD SDI signal. (The HD/SD
switching becomes valid also on the
COMPONENT OUT connector in
synchronization.)
Use a commercially available 75-ohm coaxial
cable for connection.
To display the menus and status information on
the connected monitor
Set “YPbPr/SDI Out Display” (page 107) of the
VIDEO SET menu to “On.”
Note
If input/output at the i.LINK (HDV) connector
are enabled (page 118), no signal is fed out from
the SDI OUT connector.
COMPONENT OUT connector (mini-D
connector)
The connector is set at the factory to output HD
analog component signals for monitoring.
Using “YPbPr/SDI Out Select” (page 107) of the
VIDEO SET menu, you can change the setting so
that it outputs down-converted analog component
signals for monitoring. (The HD/SD switching
becomes valid also on the SDI OUT connector in
synchronization.)
Use the supplied component video cable for
connection.
