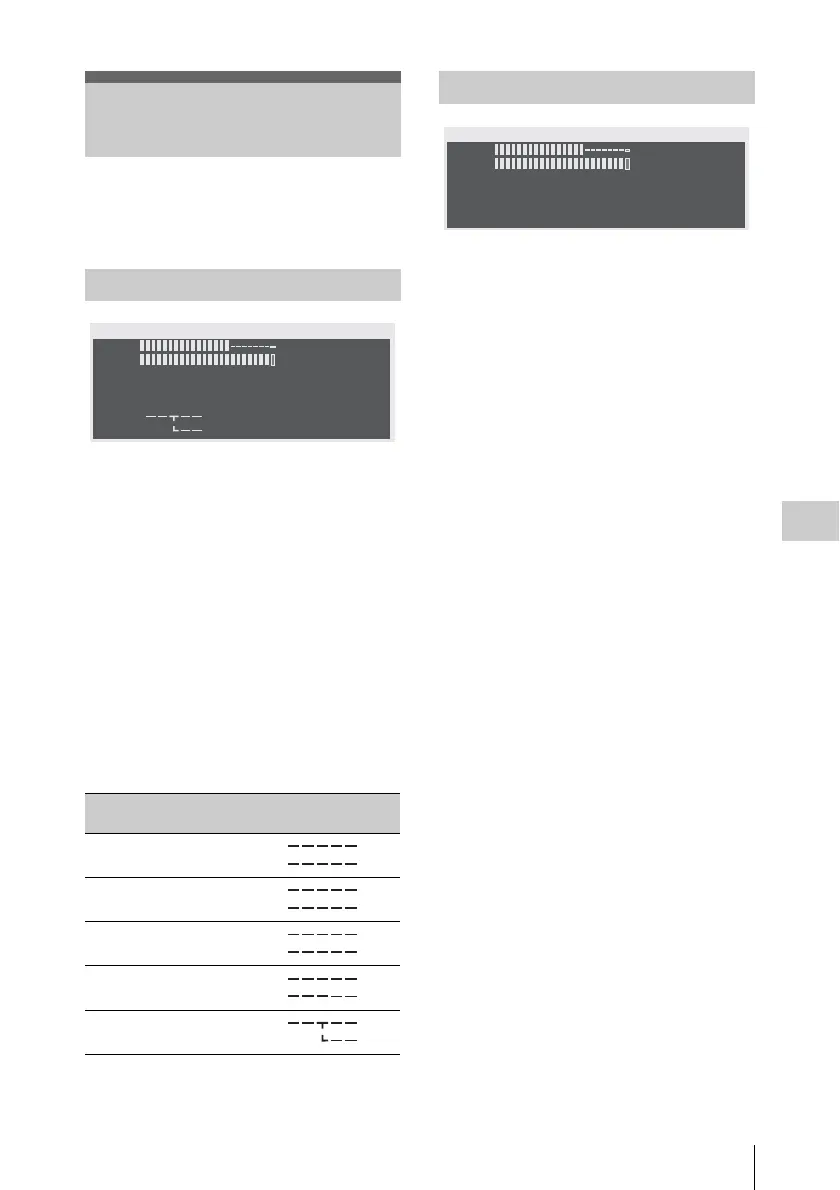

AUDIO Status Screen
95
Status Displays
Information regarding audio signals is displayed.
The display configuration varies between Camera
mode and Media mode.
CH-1/CH-2: Audio level meters
The levels of the CH-1 and CH-2 audio inputs (E-
E audio levels) are displayed.
Wind Filter: Wind filter settings
The current settings of “Wind Filter CH-1” and
“Wind Filter CH-2” of the AUDIO SET menu are
displayed.
AGC Link: AGC link status
The “AGC Link” status (Linked or Separate) of
the AUDIO SET menu is displayed.
INT/EXT–CH-1/CH-2: Audio input settings
The inputs to CH-1 and CH-2 according to the
“EXT CH Select” setting of the AUDIO SET
menu and the AUDIO IN switch status are
displayed.
CH-1/CH-2/CH-3/CH-4: Audio level meters
The playback audio levels of CH-1/CH-2 or CH-
3/CH-4 are displayed according to the “Output
CH” setting of the AUDIO SET menu.
If audio input is fed in via the i.LINK connector
in STOP status or in external input recording, the
input audio levels are indicated. In this case, the
channel indications at the left of the meters are
CH-1 and CH-2 regardless of the “Output CH”
setting of the AUDIO SET menu.
In other conditions, the meters do not function.
Output CH: Output channel setting
The “Output CH” setting of the AUDIO SET
menu is displayed.
Headphones: Headphone output
The output audio channel(s) for the headphones
is(are) displayed. The “Monitor CH” setting of
the AUDIO SET menu is valid as-is.
Speaker: Speaker output
The output audio channel(s) for the built-in
speaker is(are) displayed. As the speaker is
monaural, the outputs are CH-1+CH2 or CH-
3+CH4 even in stereo mode.
With nonstereo settings, the “Monitor CH”
setting of the AUDIO SET menu is valid as-is.
AUDIO Status Screen
In Camera Mode
AUDIO IN
switch
EXT CH
Select
Display
CH-1: INT
CH-2: INT
—
CH-1: EXT
CH-2: INT
—
CH-1: INT
CH-2: EXT
—
CH-1: EXT
CH-2: EXT
CH-1/CH-2
CH-1: EXT
CH-2: EXT
CH-1
CH -1
CH -2
W ind Filter CH-1 : O n AGC L ink: Linked
CH-2: O n
EXT -1 CH-1
EXT -2 CH-2
AUDIO 2/5
oo
- 40 - 30 - 20 - 10 0 OVER
INT-L
INT-R
CH-1
CH-2
EXT-1
INT-R
CH-1
CH-2
INT-L
EXT-2
CH-1
CH-2
EXT-1
EXT-2
CH-1
CH-2
EXT-1
EXT-2
CH-1
CH-2
In Media Mode
C H-3
CH-4
O utput C H
H eadphones
S peaker
AUDIO
:
CH -3/ CH -4
:
CH -3/ CH -4
:
CH -3+ CH -4
oo
- 40 - 30 - 20 - 10 0 OVER
1/4
